Dimension drawings

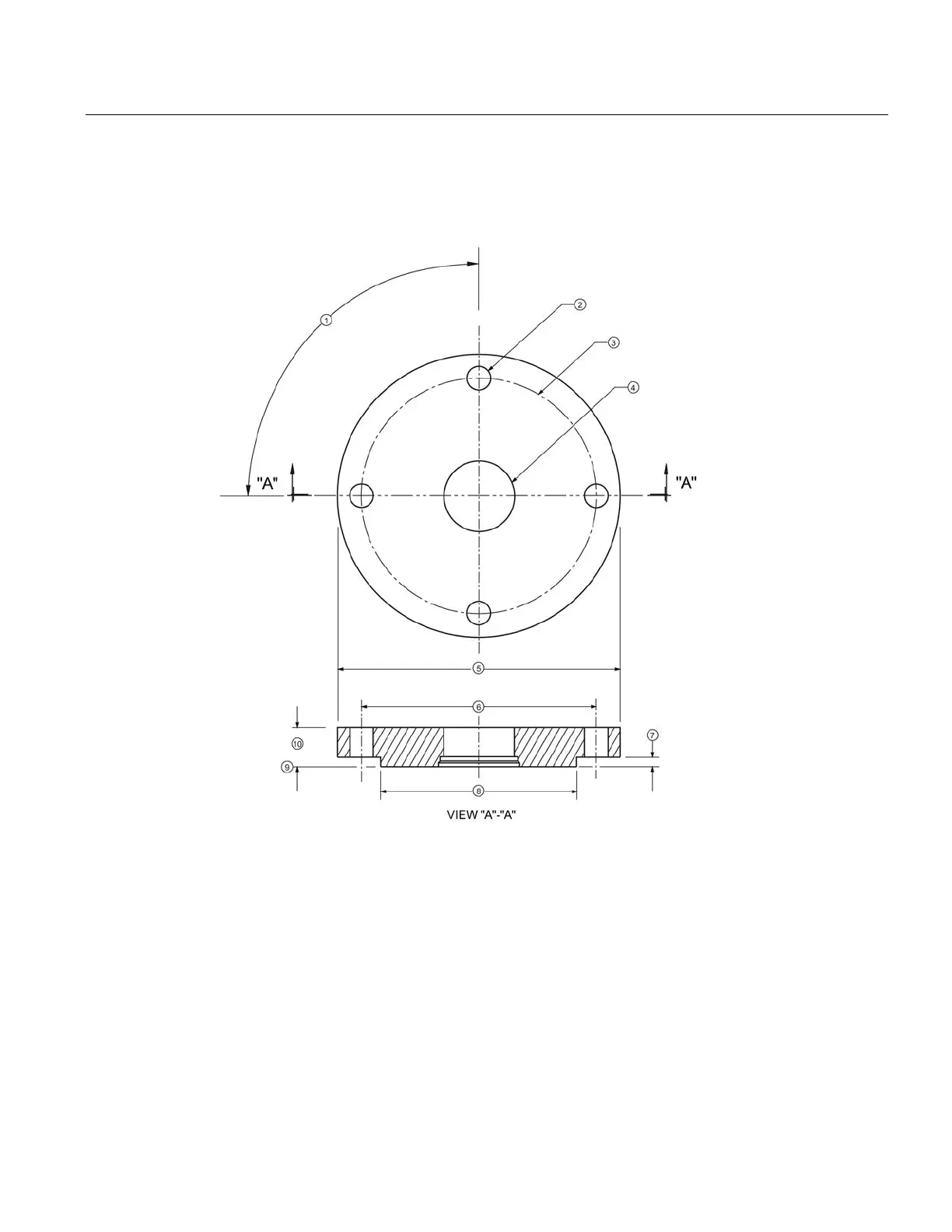

12.26 Raised-Face flange per EN 1092-1 for flanged horn antenna
SITRANS LR250 (PROFIBUS PA)
Operating Instructions, 08/2014, A5E32221386-AC
219
12.26
Raised-Face flange per EN 1092-1 for flanged horn antenna
Stainless steel or optional alloy N06022/2.4602 (Hastelloy
®
C-22)
①
angle of adjacent bolt holes
⑥
bolt hole circle diameter
②
bolt hole diameter
⑦
facing height
③
bolt hole circle diameter
⑧
facing diameter
④
waveguide mounting hole
⑨
sensor reference point
⑤
Flange O.D.
⑩
thickness
