Appendix A: Technical reference

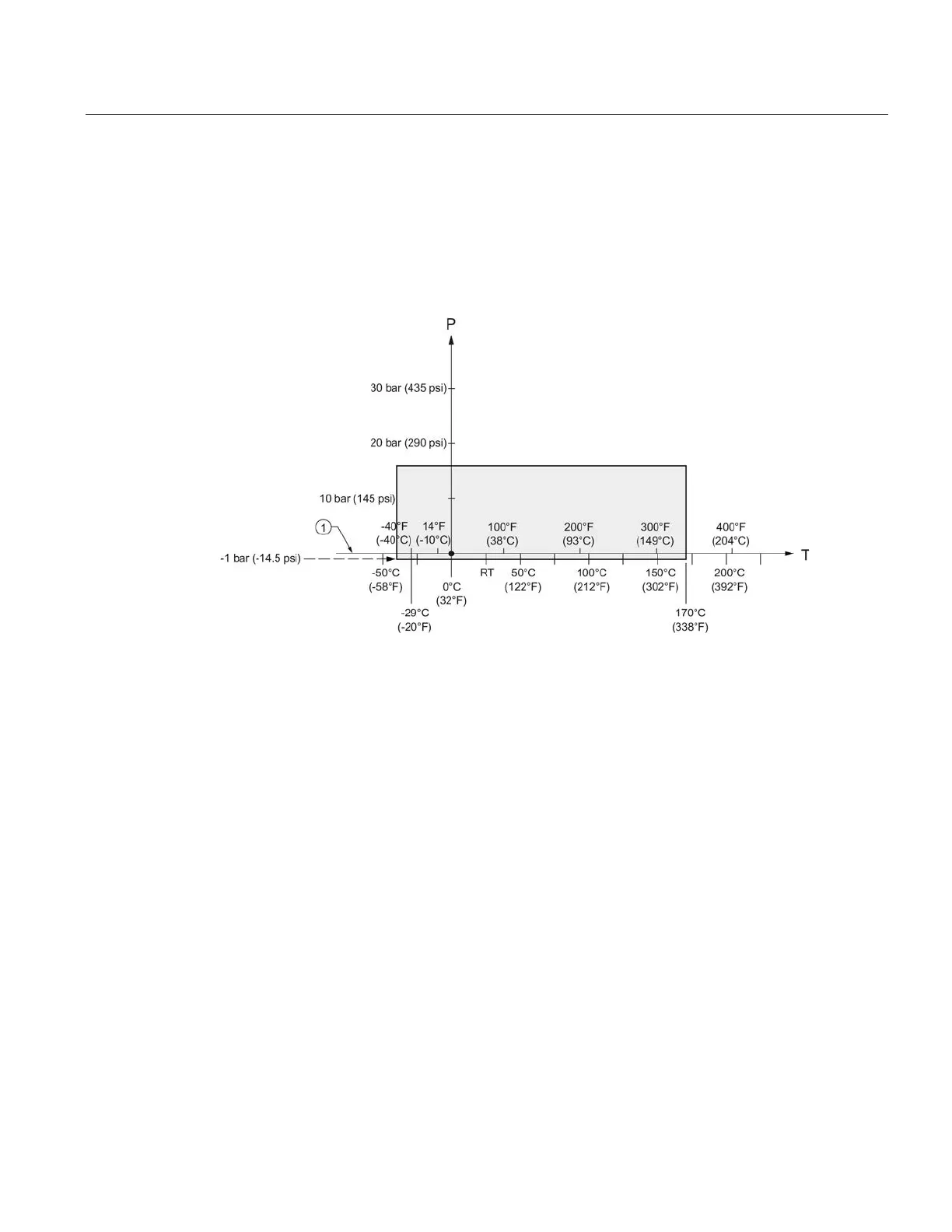

A.4 Process Pressure/Temperature Derating Curves
SITRANS LR250 (PROFIBUS PA)
Operating Instructions, 08/2014, A5E32221386-AC
253
A.4.6
Hygienic encapsulated antenna
DIN 11851 Sanitary/Hygienic nozzle/slotted nut: DN50, DN80, and DN100
DIN 11864-1 Aseptic/Hygienic nozzle/slotted nut: DN50, DN80, and DN100
①
Atmospheric
P
Allowable operating pressures
T
Allowable operating temperatures
