Dimension drawings

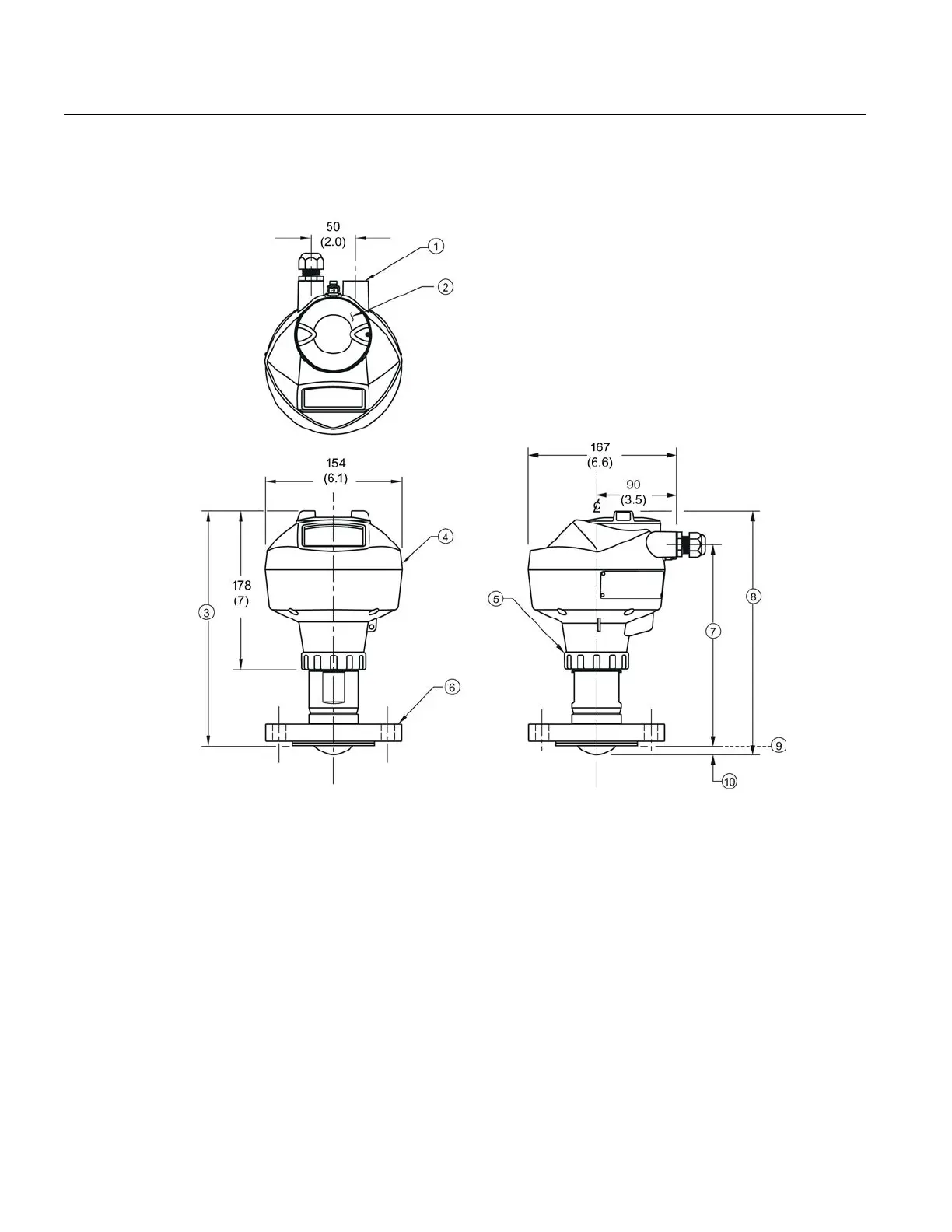

12.5 Flanged encapsulated antenna (2"/DN50/50A sizes only)

SITRANS LR250 (PROFIBUS PA)

196 Operating Instructions, 08/2014, A5E32221386-AC

12.5

Flanged encapsulated antenna (2"/DN50/50A sizes only)

①

½" NPT cable entry, or M20 cable gland

⑥

flange

②

threaded cover

⑦

see table below

③

see table below

⑧

see table below

④

enclosure

⑨

sensor reference point

⑤

retaining collar

⑩

see table below

Dimensions in mm (inch)
