Installing/mounting
4.3 Proper mounting
SITRANS LR250 (PROFIBUS PA)
Operating Instructions, 08/2014, A5E32221386-AC
27

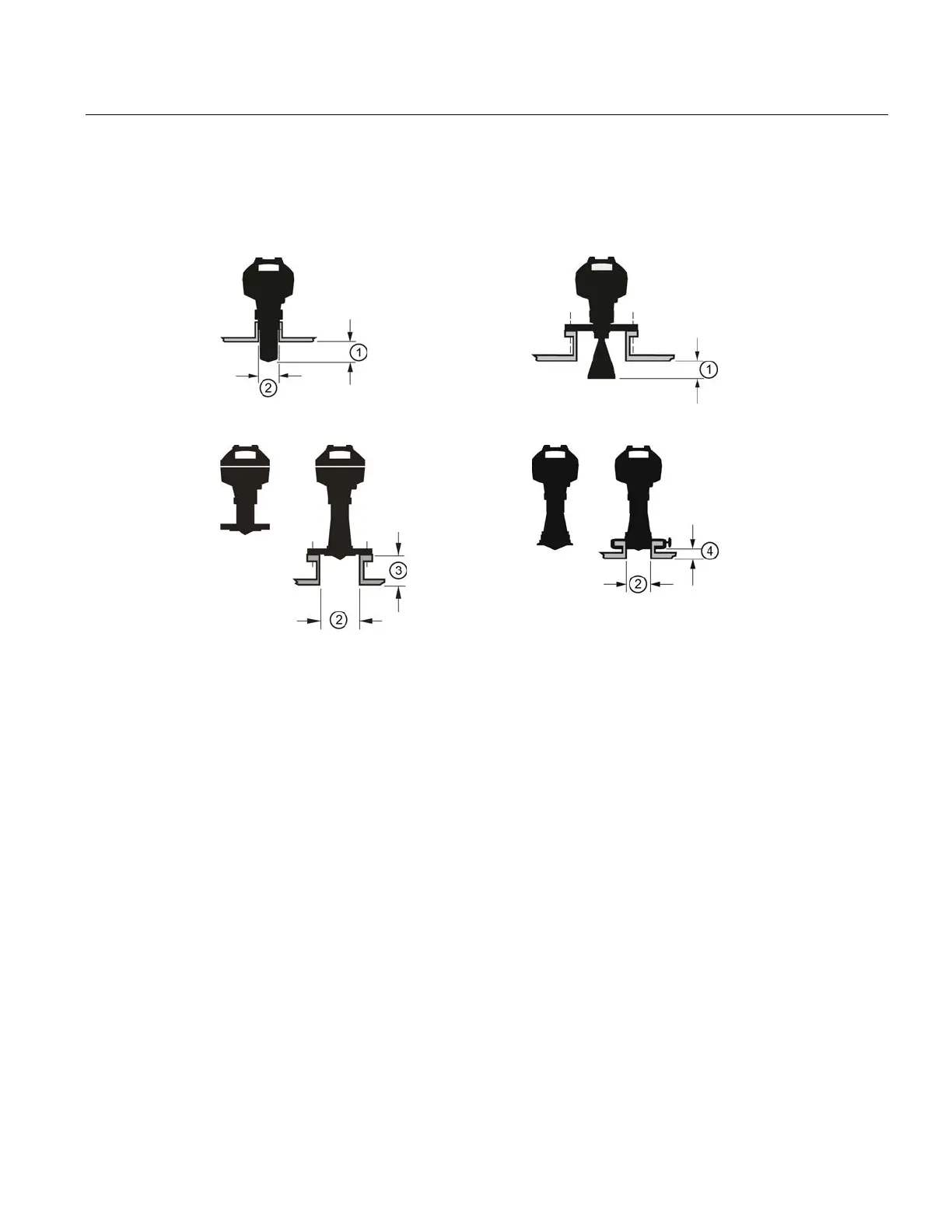

Stainless steel horn antenna
Flanged encapsulated antenna (FEA)
Hygienic encapsulated antenna (HEA)
Minimum clearance: 10 mm (0.4")
Minimum diameter: 50 mm (2")
Maximum length/diameter ratio 1:1
● The end of the antenna must protrude a minimum of 10 mm (0.4") to avoid false echoes
being reflected from the nozzle
1)
.
● Minimum recommended nozzle diameter for the threaded PVDF antenna is 50 mm (2").
● An antenna extension (100 mm/3.93") is available for the horn antenna only.
● The maximum nozzle length for the FEA is 500 mm (19.68") when the nozzle diameter is
DN150 (6"). Only shorter lengths are recommended for smaller diameters.
● When installing the SITRANS LR250 with hygienic process connection, it is good hygienic
practice to install the antenna in a nozzle that has a maximum length/diameter ratio of 1:1.
For example, 2" (DN50) diameter nozzle should be no longer than 2" (50 mm).
● When removing any sanitary/hygienic clamp version of the HEA to clean the lens, ensure it is
re-installed in the exact position it was removed from, to avoid re-commissioning the device.
1)
Not applicable for FEA or HEA
