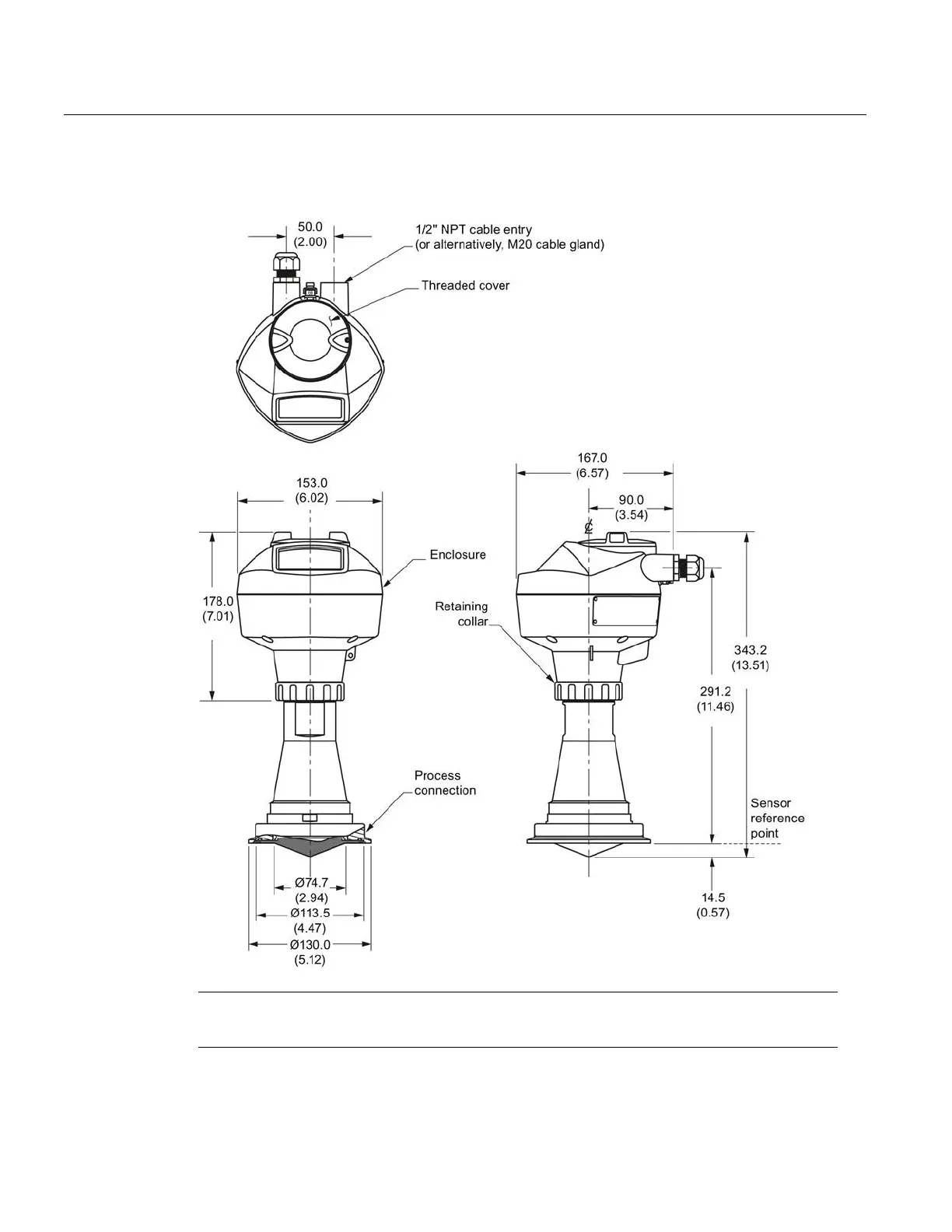

Dimension drawings
12.21 Hygienic encapsulated antenna (DN100 aseptic clamp to DIN 11864-3)
SITRANS LR250 (PROFIBUS PA)
214 Operating Instructions, 08/2014, A5E32221386-AC
12.21
Hygienic encapsulated antenna (DN100 aseptic clamp to DIN 11864-3)
Dimensions in mm (inch)
Note
Cut out of process connection is
shown for illustration purposes only.
