Dimension drawings

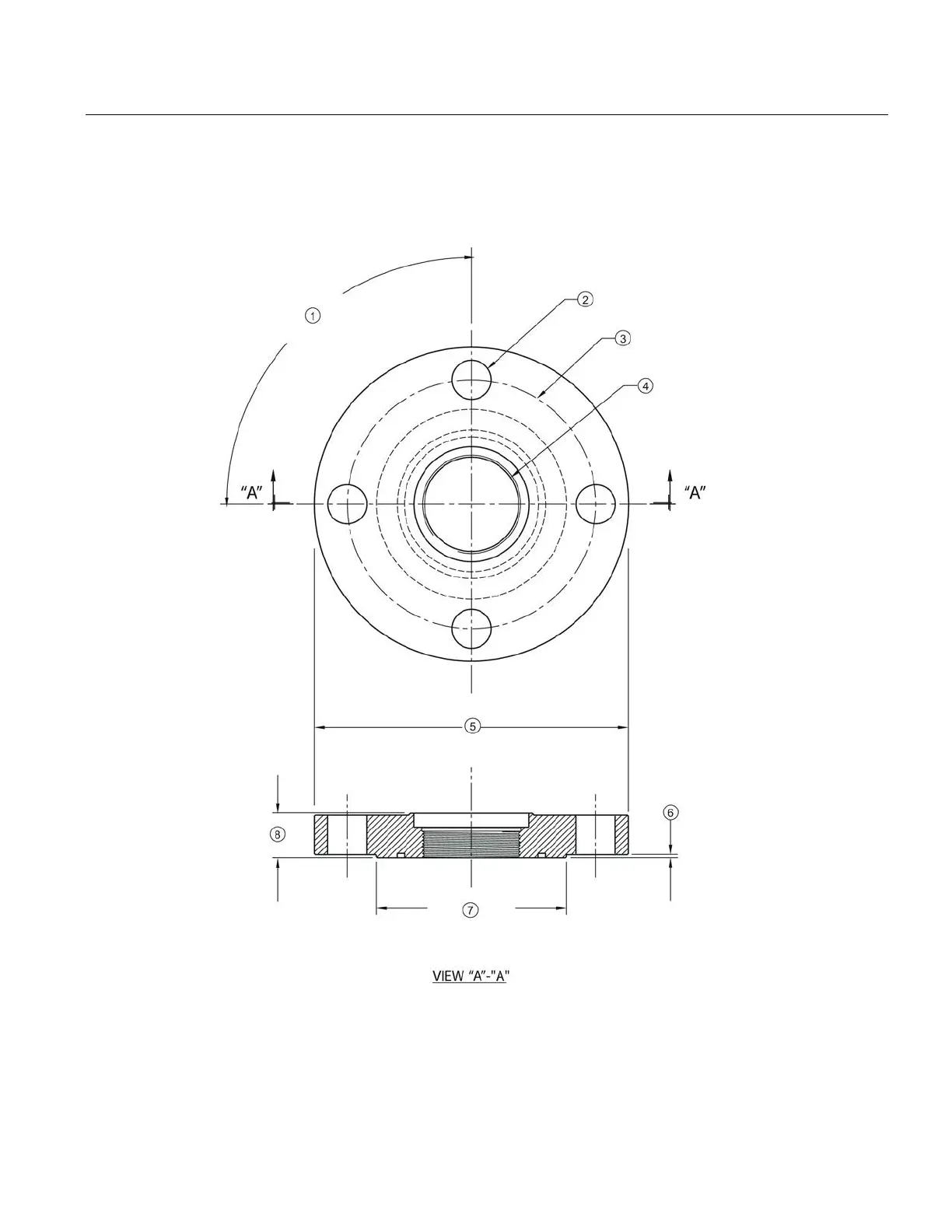

12.27 Raised-Face flange per EN 1092-1 for flanged encapsulated antenna
SITRANS LR250 (PROFIBUS PA)
Operating Instructions, 08/2014, A5E32221386-AC
221
12.27
Raised-Face flange per EN 1092-1 for flanged encapsulated antenna
Stainless steel
①
angle of adjacent bolt holes
⑤
flange O.D.
②
bolt hole diameter
⑥
facing height
③
bolt hole circle diameter
⑦
facing diameter
④
antenna
⑧
flange thickness
