Remote operation
7.1 Operating via SIMATIC PDM
SITRANS LR250 (PROFIBUS PA)
78 Operating Instructions, 08/2014, A5E32221386-AC
Quick start wizard via SIMATIC PDM
The graphic Quick Start Wizard provides an easy step-by-step procedure that configures the
device for a simple application.
Please consult the operating instructions or online help for details on using SIMATIC PDM.
1. If you have not already done so, check that you have the most up-to-date Electronic Device
Description (EDD) for your device. [See Configuring a new device (Page 77).]
2. Launch SIMATIC Manager and create a new project. Application Guides for setting up HART
and PROFIBUS PA devices with SIMATIC PDM can be downloaded from the product page of
our website:
Product page (http://www.siemens.com/LR250)
A reset to
should be performed before running the Quick Start Wizard if
device has been used in a previous application. See Master Reset via SIMATIC PDM
(Page 96).
The Quick Start wizard settings are inter-related and changes apply only after you click
on
at the end of the last step to save settings offline and
transfer them to the device.
Do not use the Quick Start Wizard to modify individual parameters: for quick access to
echo profile parameters, see Echo Profile via SIMATIC PDM (Page 85) or see
Reference (Page 107) for a complete list. (Perform customization only after the Quick
Start has been completed.)
Click on
to return and revise settings or
to exit the Quick Start.
For a vessel with obstructions see Auto False Echo Suppression via SIMATIC PDM
(Page 87).

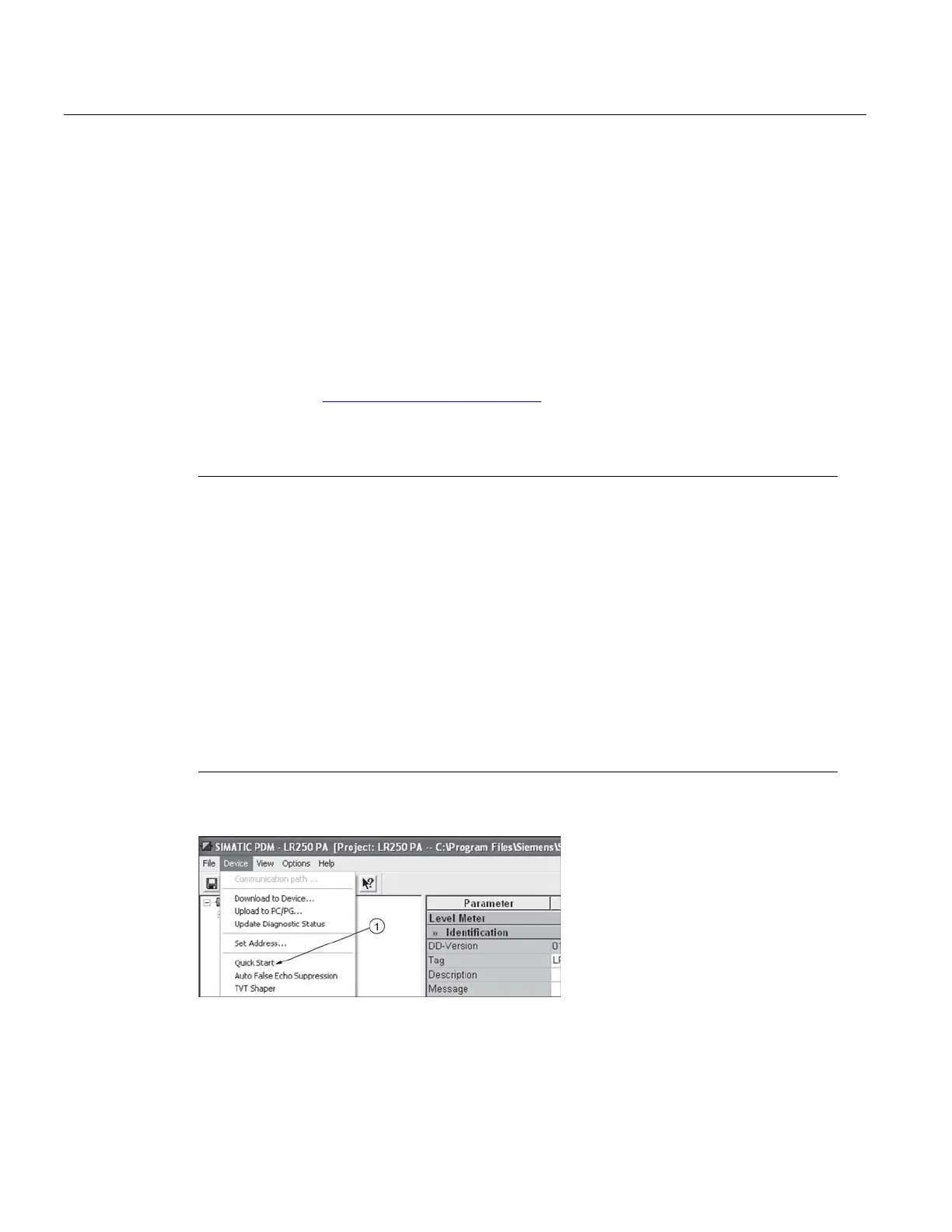

Launch SIMATIC PDM, open the menu
Device – Wizard - Quick Start
, and follow steps 1 to 5.
