Dimension drawings

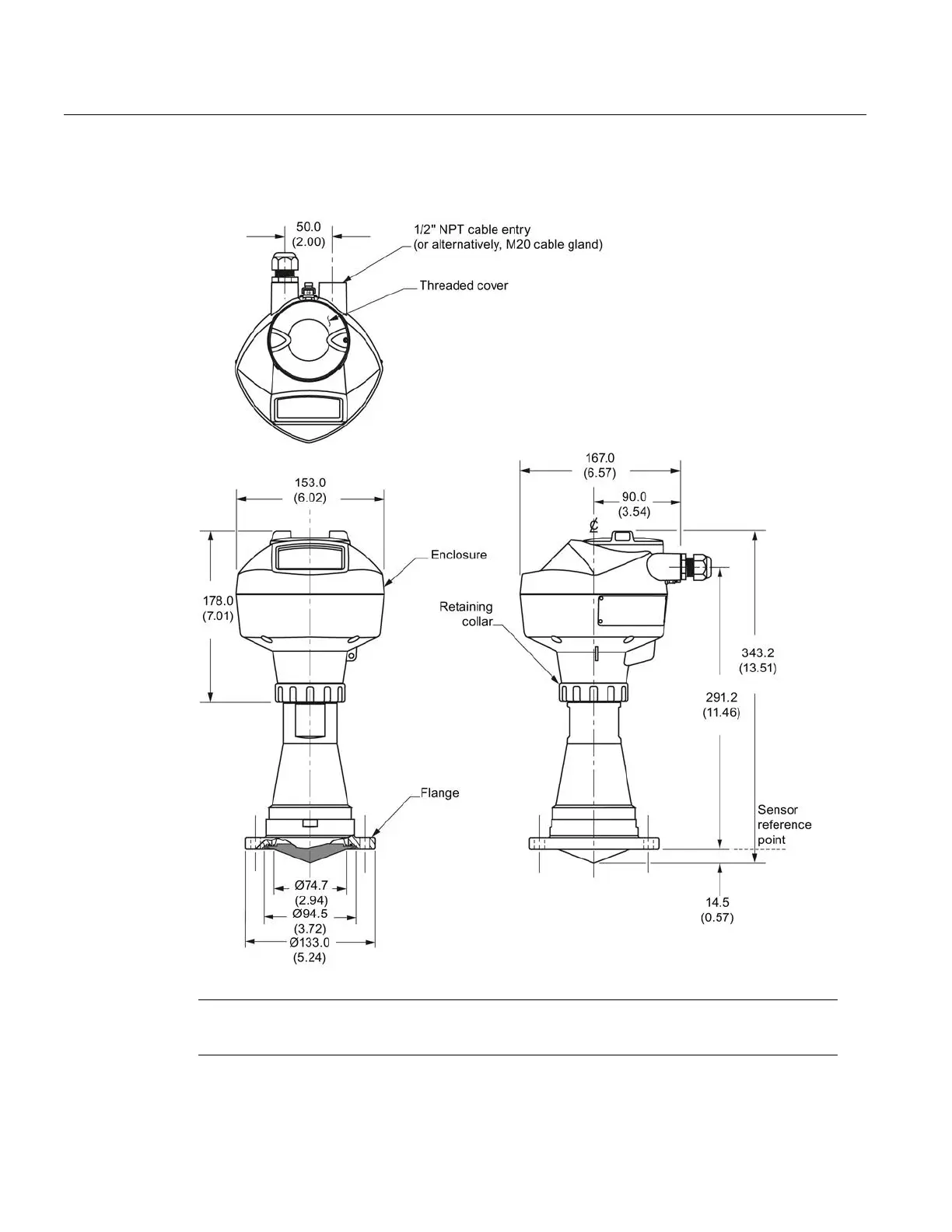

12.17 Hygienic encapsulated antenna (DN80 aseptic flange to DIN 11864-2)
SITRANS LR250 (PROFIBUS PA)
210 Operating Instructions, 08/2014, A5E32221386-AC
12.17
Hygienic encapsulated antenna (DN80 aseptic flange to DIN 11864-2)
Dimensions in mm (inch)
Note
Cut out of process connection an
d flange are shown for illustration purposes only.
