Dimension drawings

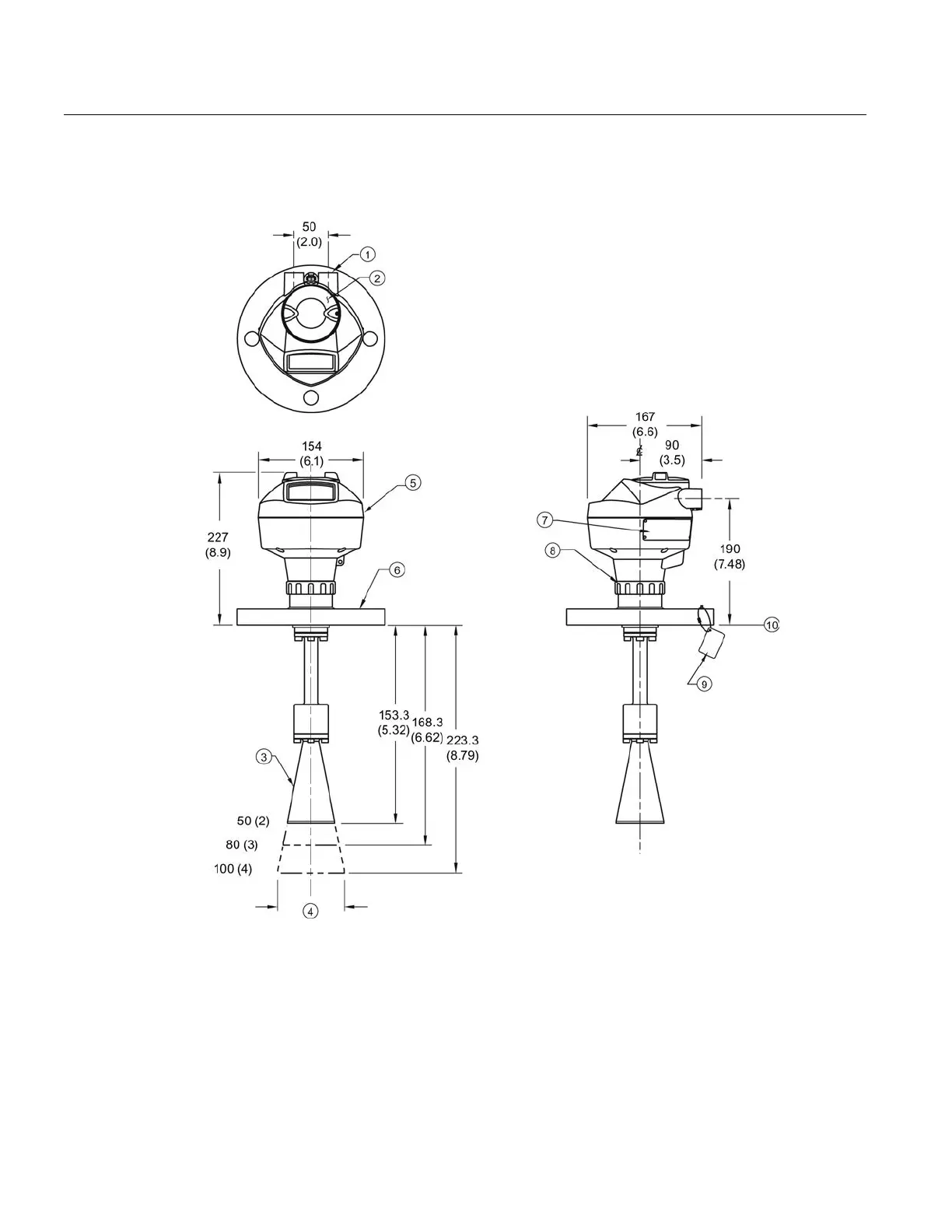

12.4 Flanged horn antenna with extension

SITRANS LR250 (PROFIBUS PA)

194 Operating Instructions, 08/2014, A5E32221386-AC

12.4

Flanged horn antenna with extension

①

½" NPT cable entry, or M20 cable gland

⑥

flange

②

threaded cover

⑦

name-plate

③

horn

⑧

retaining collar

④

horn O.D.

⑨

process connection tag

⑤

enclosure/electronics

⑩

sensor reference point

Dimensions in mm (inch)
