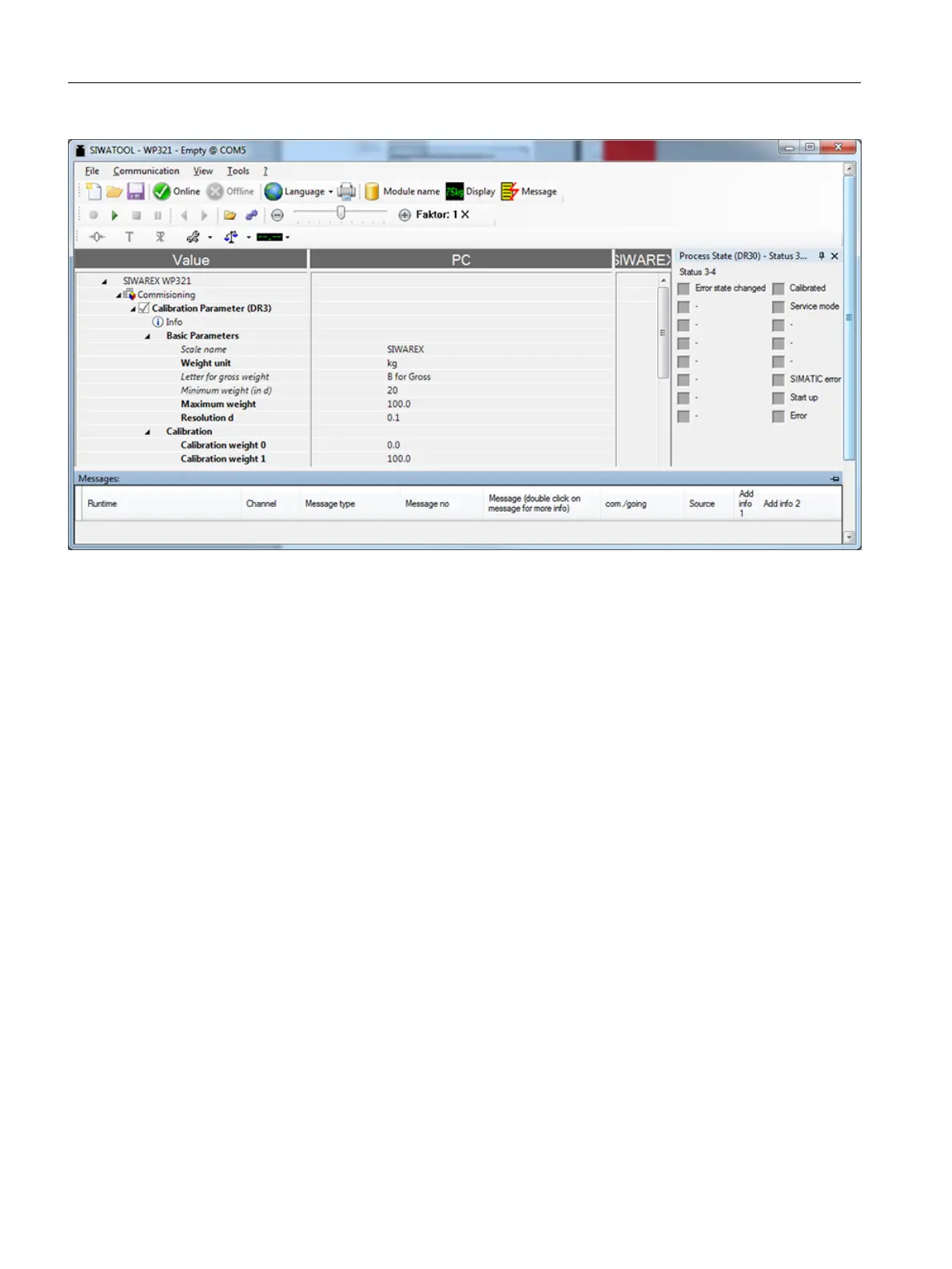

Figure 4-1 SIWATOOL overview
SIWATOOL does not only offer support when you set the scale but also when you analyze the
diagnostic buffer that can be saved after being read out of the module together with the
parameters. The display of the current scale status can be configured.
You can switch between several languages in the program.
You require an RS485/USB converter (see Ordering data (Page 123)).
4.2.2 Parameter assignment with the SIMATIC Panel
SIWAREX WP321 parameters can be assigned using a SIMATIC Panel connected to the
SIMATIC CPU. The "Ready-for-use" application software is used for this.
Application planning
4.2 Parameter assignment options
SIWAREX WP321
20 Operating Instructions, 08/2019, A5E33715669A-AD
