User Manual
EM303A General Purpose Inverter
19
2.2 Overall and Installation Dimensions
Classified to 10 sizes for total 30 models of EM303A, installation dimensions as
shown in Figure 2-1 and Table 2-2.
The keypad can be installed on the metal panel separately with a hole size of
116.5±0.1(L)*71.5±0.1 (W)mm, and applicable panel thickness:1.2～2.0mm
71
74
118
26
34
116
8
58
77
16
-
R
2-M3
（a）Keypad Dimensions for Installation
W
W1
4
-
d
H1
H
D
D1
D2
-
R
D1
H2
H1
H
W
W1
2-d
D
-
R
D2
(b) (c)

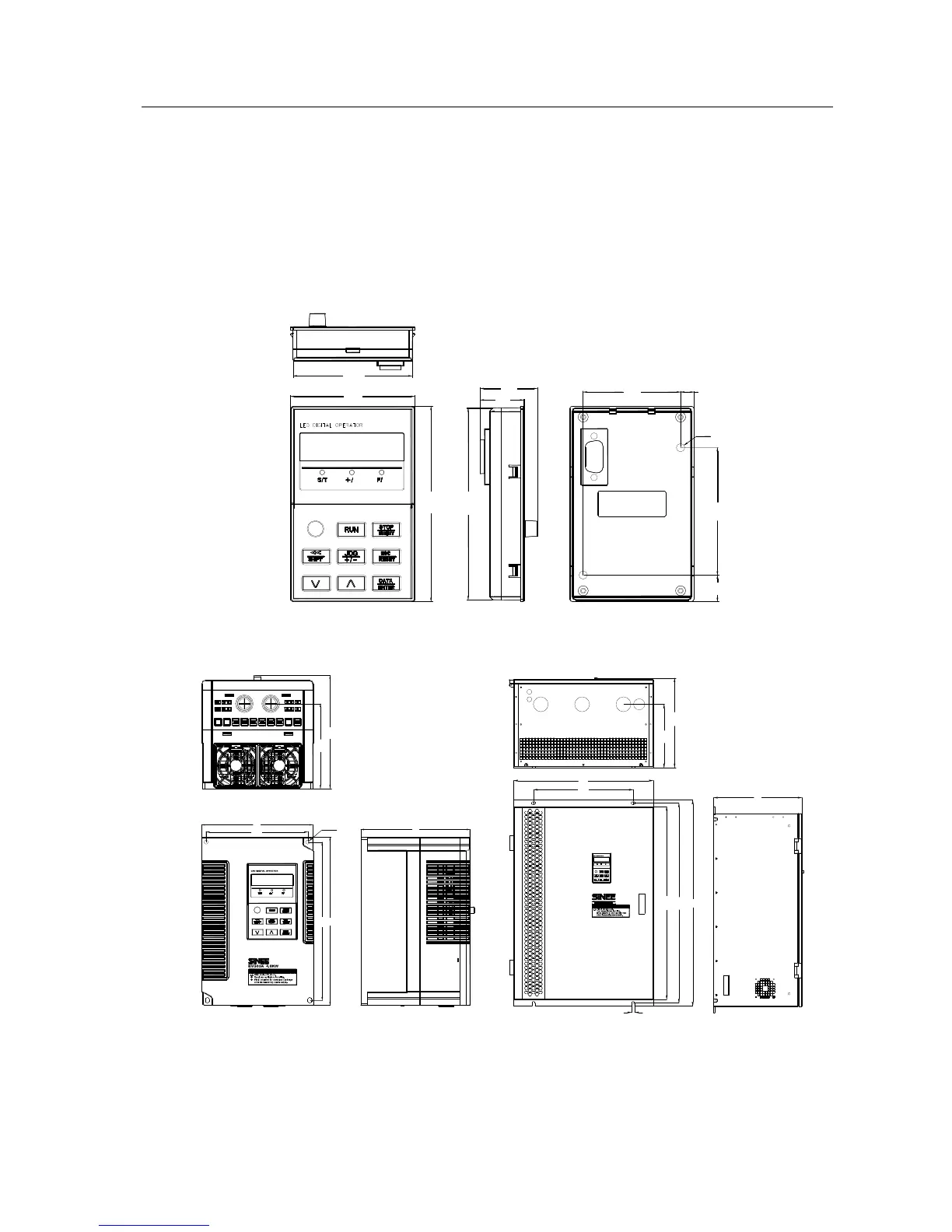

Figure 2-1 Overall and Keypad Dimensions of EM303A for Installation
