User Manual
EM303A General Purpose Inverter
22
2.5 Disassembly and Assembly of Keypad
Under general circumstances, it is unnecessary to disassemble the keypad, and just
remove the cover to assemble and wire. On special occasions, disassemble the
keypad by following steps.

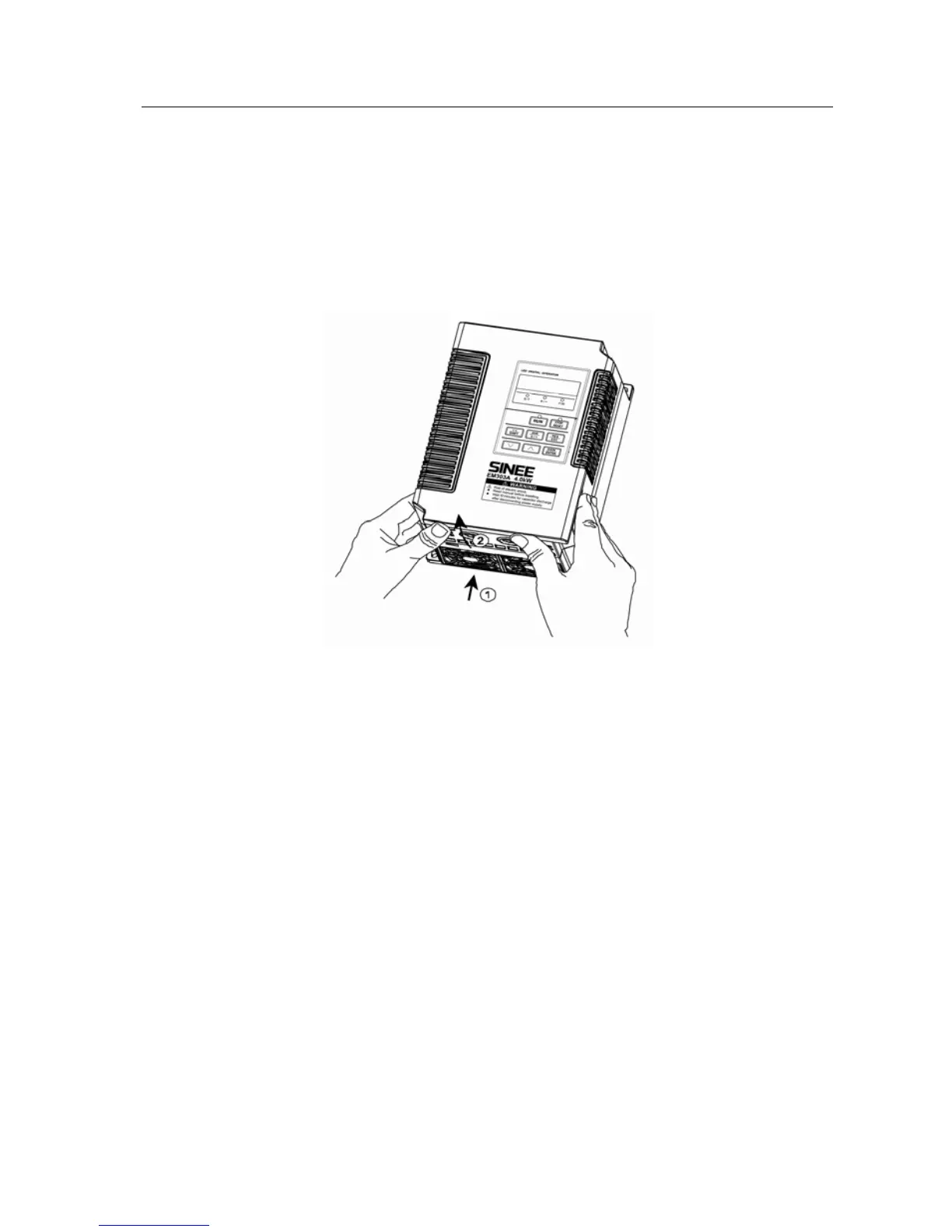

z Remove the front cover: For EM303A-7R5 or below, push the cover vertically
from the bottom with two hands, and then lift up outwards. See Figure 2-3.
Figure2-3 Remove the Front Cover
z Disassemble the keypad: Put your figures in the insert on the top of keypad,
press down slightly, and pull outwards, then the keypad can be removed. See
Figure 2-4.
z Assemble the keypad: Place the bottom of keypad in the slot and then press the
top to push until it clicks into right place. See Figure 2-5.
