User Manual
EM303A General Purpose Inverter
84
In JOG running mode, inverter runs at the frequency set by F0-11, the
acceleration/deceleration time taken for running to Fmax is set by F0-12/F0-13.
★ Jog acceleration time is the time taken for the output frequency to rise from
0Hz up to maximum frequency Fmax. Deceleration time is the time taken
for the output frequency to drop from Fmax down to 0Hz.
★ In jog running mode, keep pressing the JOG button or terminal JOG is on.
Otherwise, it will be considered as the jog command cancelled.
Note that the unit of acceleration /deceleration time is second or minute, defined
by F3-21.
No.
Function
Range
Unit Default
Type
F0-14 Carrier Frequency 1.000～16.000 kHz 2.000
●
Increasing carrier frequency could reduce motor noise, but it will result in inverter
heating up. When carrier frequency is higher than the default, the rated power of inverter
should decrease 5% as each increment of 1 kHz carrier frequency.
Correlation between motor rated power and carrier frequency is suggested as following:
Motor Rated Power Pe
≤15kW ≤30kW ≤75kW ≤132kW ＞132KW
Carrier Frequency Fc ≤10.0kHz ≤8.0kHz ≤6.0kHz ≤4.0kHz ≤2.5kHz
No.
Function
Range
Unit Default
Type

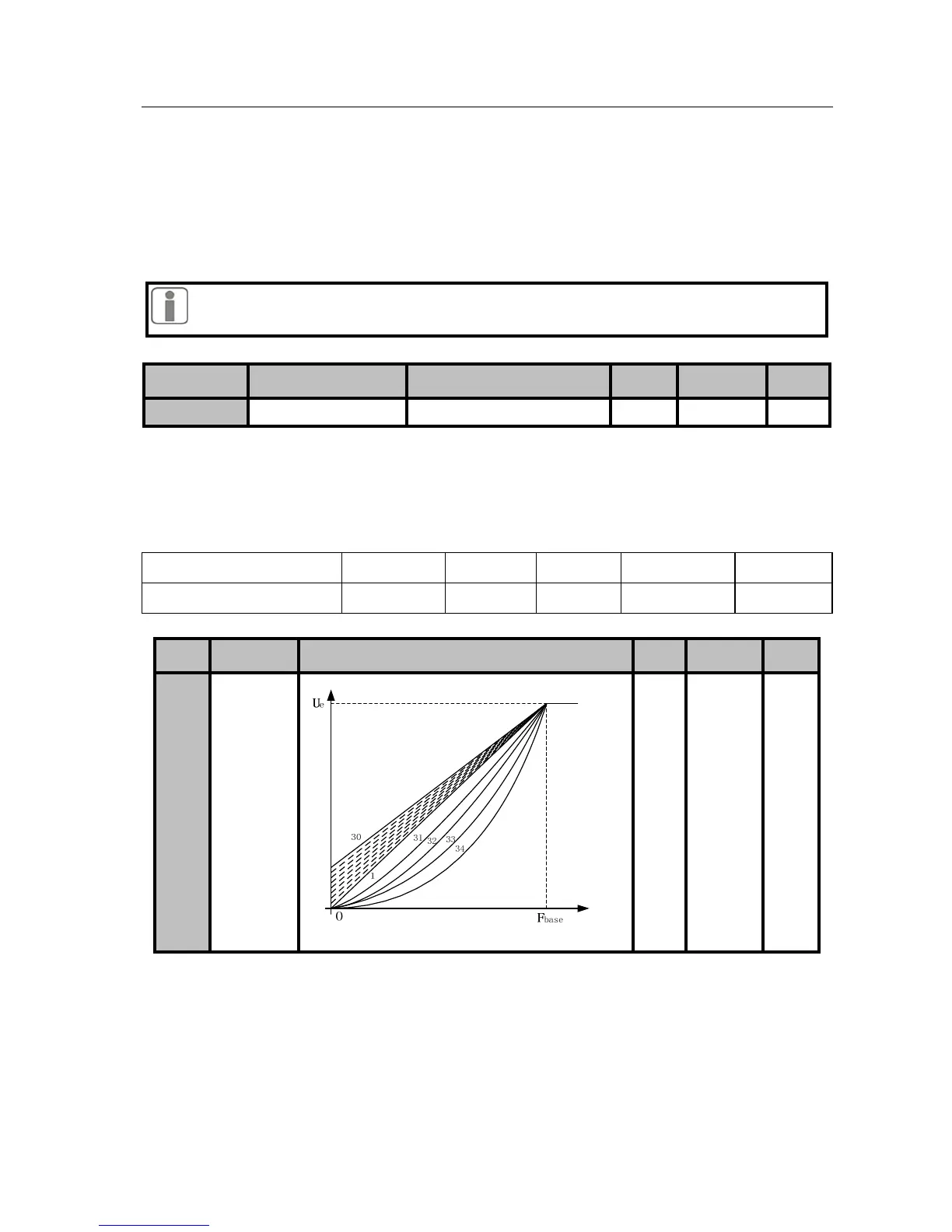

F0-15
Torque
Boost
35
●
F0-15=0 Automatic torque boost
F0-15=1～10 Fixed torque boost curve
F0-15=11～20 Oil pump motor boost curve
F0-15=21～30 Synchronous motor boost curve
F0-15=31～34 Blower/water pump boost curve
F0-15=35 Customer defined V/F curve scaling (Defined via Fd-01～Fd-08)
