Service Manual
Original issue
Feb. 2007
Page 16/55
Model
CE-200E

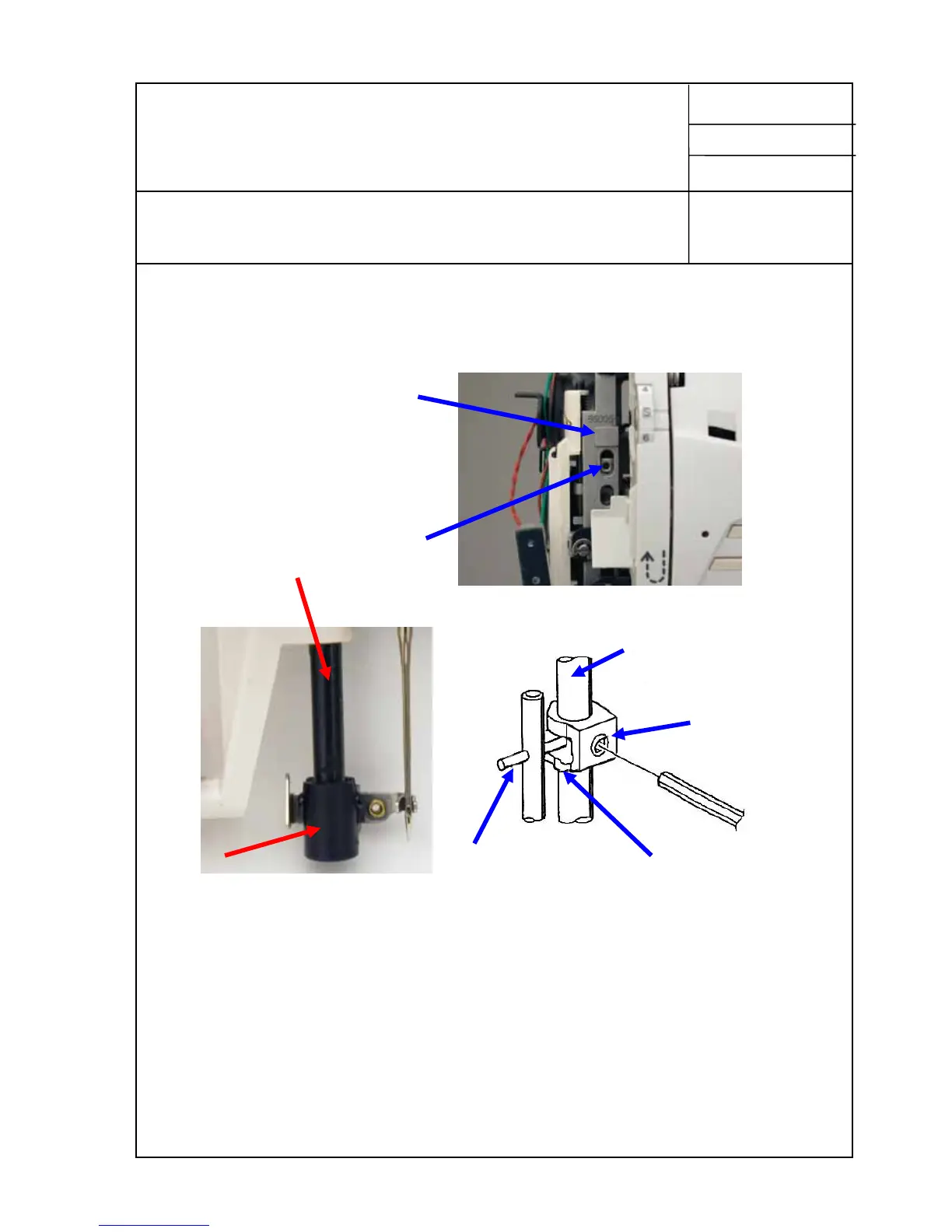

10-1. Needle threader height
1. Select straight stitch at center needle position.
2. Raise needle to its highest position by turning hand wheel toward you.
3. Lowering needle threader lever (A), check and see if hook is inserted into needle
hole.
Adjustment
1. Remove face cover.
2. Turning hand wheel by hand, bring needle bar to its highest position.
3. Loosen screw (B) of threader stopper.
4. Insert hook into the upper side of needle-hole moving the needle bar (C).
5. While holding above situation, tighten the screw (B) attaching the threader stopper
onto stopper pin (D).
6. The direction of threader stopper should be facing toward you so that it may not hit
the needle support bracket.
A
Needle threader bar
D
B
C
B
Threader stopper
Needle support bracket
