Service Manual
Original issue
Feb. 2007
Page 31/55
Model
CE-200E

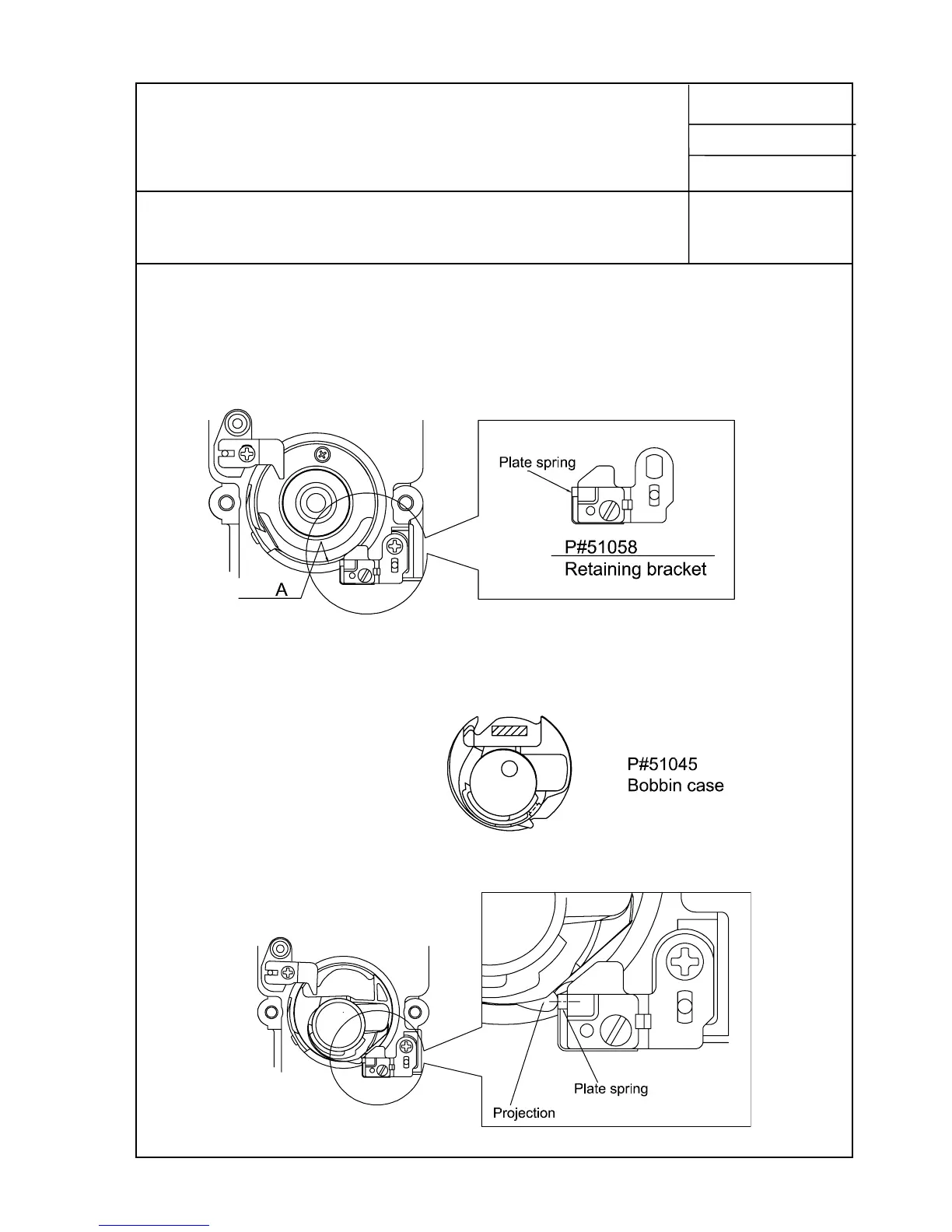

22-1. Retaining bracket for bobbin case
Remove needle plate, bobbin case and retaining bracket beforehand.
1. Place the new retaining bracket aligning corner of plate spring with inside of wall (A) of
shuttle race as illustrated below and tighten the fixing screw temporarily.
2. Insert the new bobbin case into position and adjust the position of retaining bracket
so that the projection of bobbin case may be positioned against the spring plate
as illustrated below.
Tighten the fixing screw securely.
To Next Page
