Service Manual
Original issue
Feb. 2007
Page 48/55
Model
CE-200E

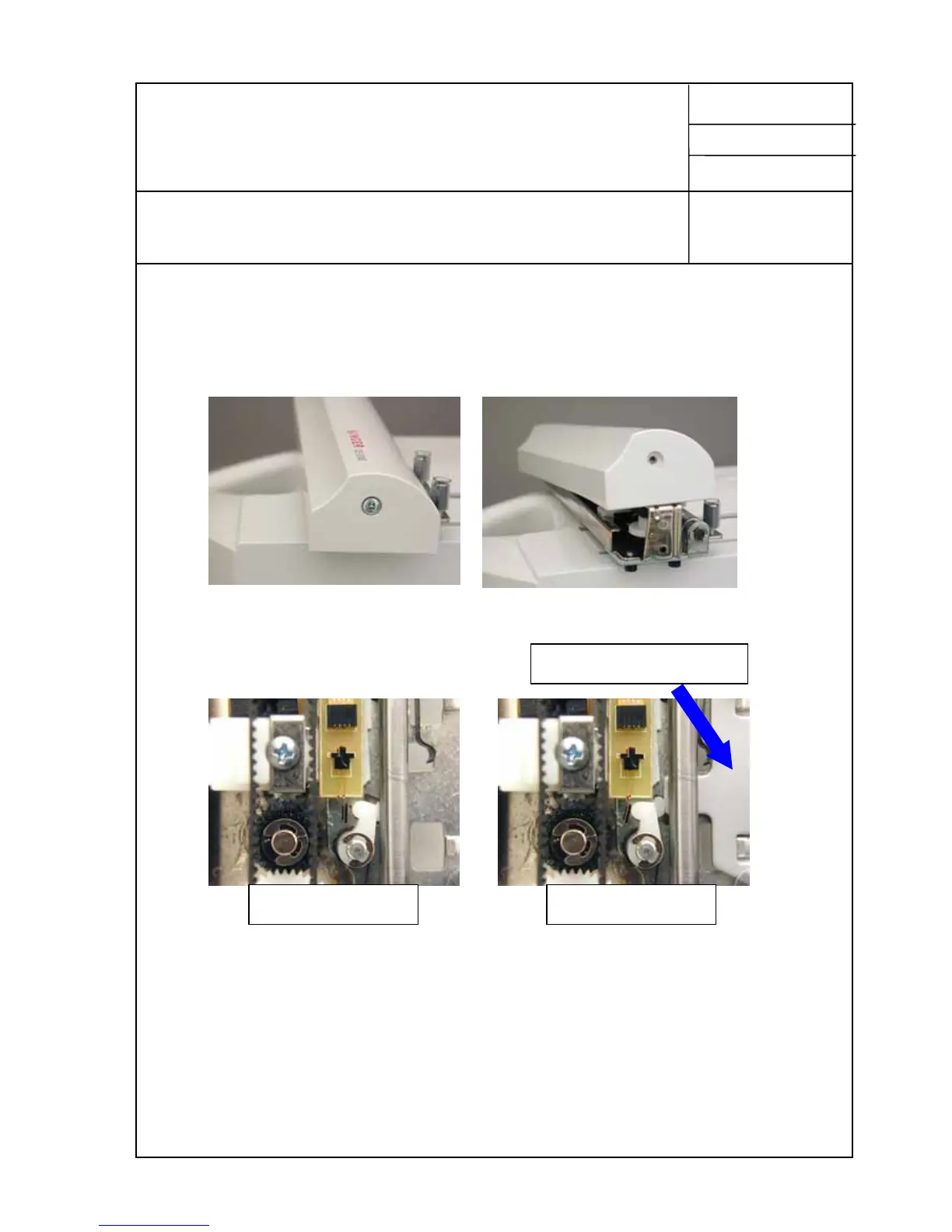

36. Recognizing hoop size
Hoop size is recognized by a switch in the hoop carriage.
Checking:
Remove fixing screw on the hoop carriage and remove the hoop carriage from stopper
at the other side.
Switch is turned off while large hoop is attached or not attached as shown in
the left photo. When small hoop is attached,
Projection of small hoop pushes the spring to turn on the switch.
Hoop size is recognized with the switch turned on or off.
Switch turns on. Switch turns off.
Projection of small hoop
