Service Manual
Original issue
Feb. 2007
Page 19/55
Model
CE-200E

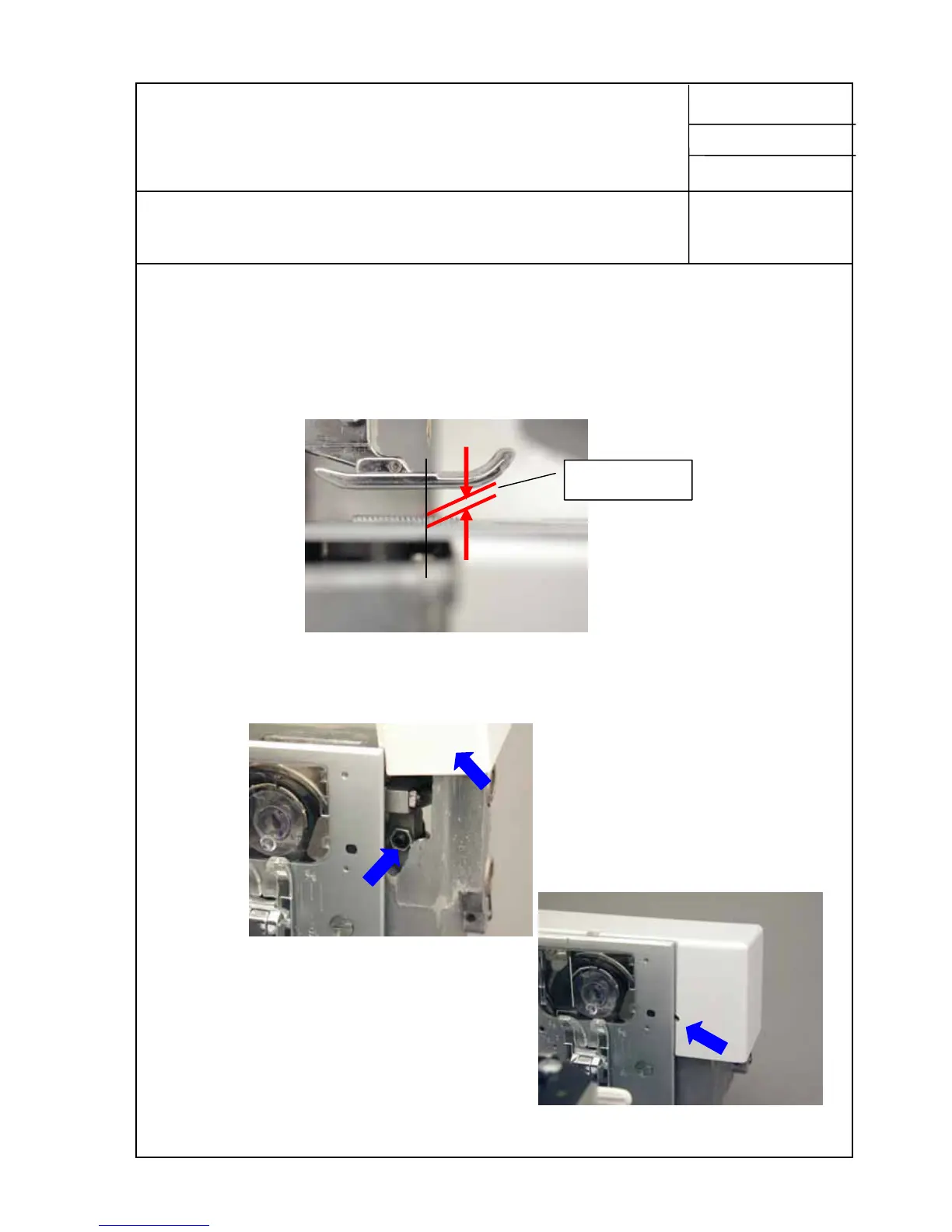

12. Feed-dog height
Note: set test mode B and select pattern #2
1. Move feed dog to its highest position by turning hand wheel.
Check to see if feed dog height is as illustrated below.
0.9 to 1.0 mm from the surface of needle plate
２．Remove bottom cover.
Adjust the height by turning screw as illustrated.
＊Position of adjustment and
adjustment hole on front cover
are shown with the cover removed.
＊Adjustment hole is shown with
Front cover in position.
0.9 to 1.0 mm
