Service Manual
Original issue
Feb. 2007
Page 51/55
Model
CE-200E
38. Wiring diagram
CN4
CN3
CN2
CN1
CN18
CN17
CN16
CN15
CN14
CN13
CN12 CN11 CN10 CN9
CN8
CN7
CN6
CN5
CN1
CN2
CN3
CN4
CN5
CN1
CN2
Switch for presser foot
Sensor 2 for thread
Sensor for CAMS
Switch for bobbin winder
USB connector
Foot control
Power stitch
Transformer(Primary)
Transformer(Secondary)
Main motor
LED lamp
Switch for
embroidery
Drawer connector
for embroidery
Strat/stop
Switch etc.
Y-motor
X-motor
Sensor
Sensor
CN4
Circuit board for
embroidery
# 84001
Switch panel
circuit board
# 84002
CPU circuit
board
# 84000
Pulse motor for feed
Pulse motor for zigzagButton -hole lever SW
Sensor 1 for thread

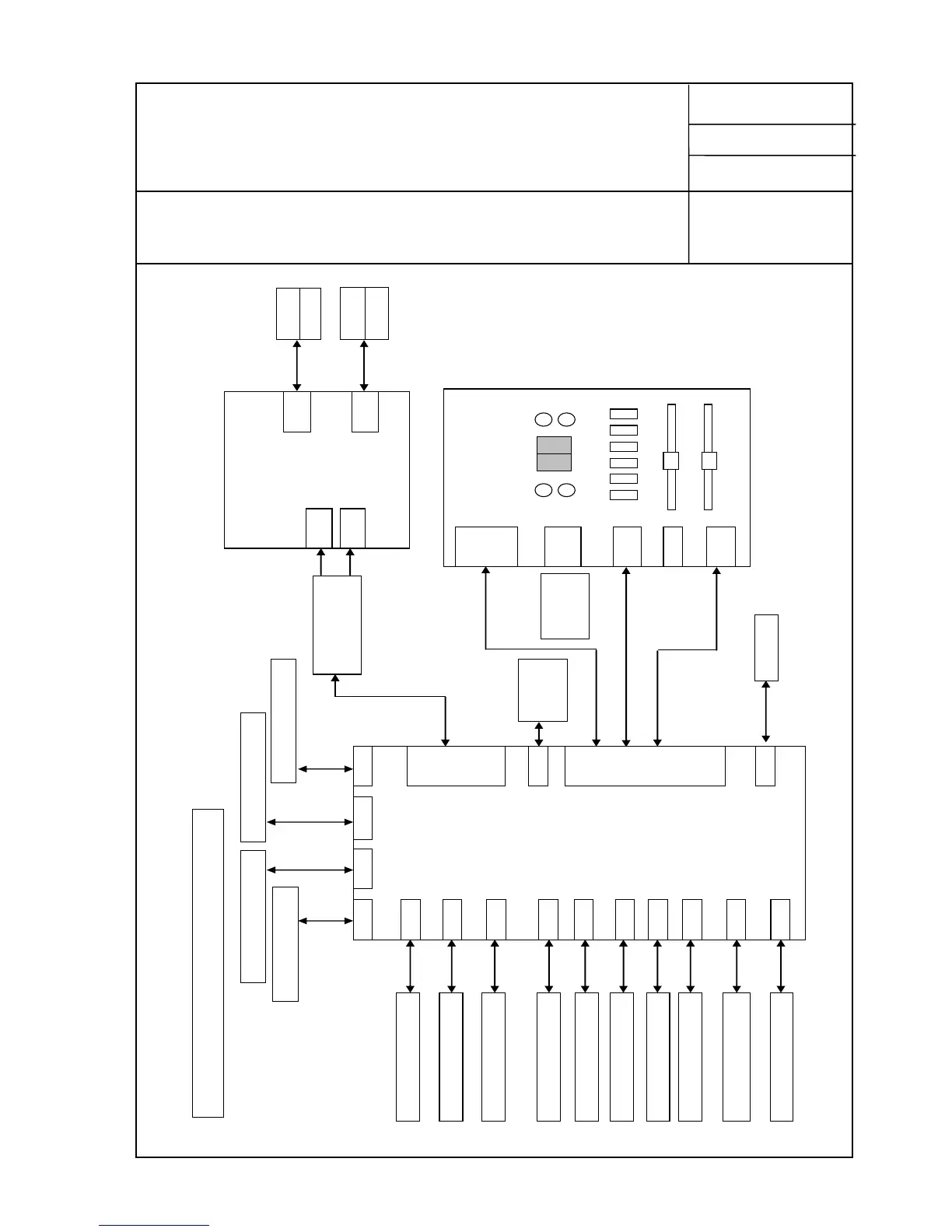

Wiring diagram for model CE-200E
