Service Manual
Original issue
Feb. 2007
Page 45/55
Model
CE-200E

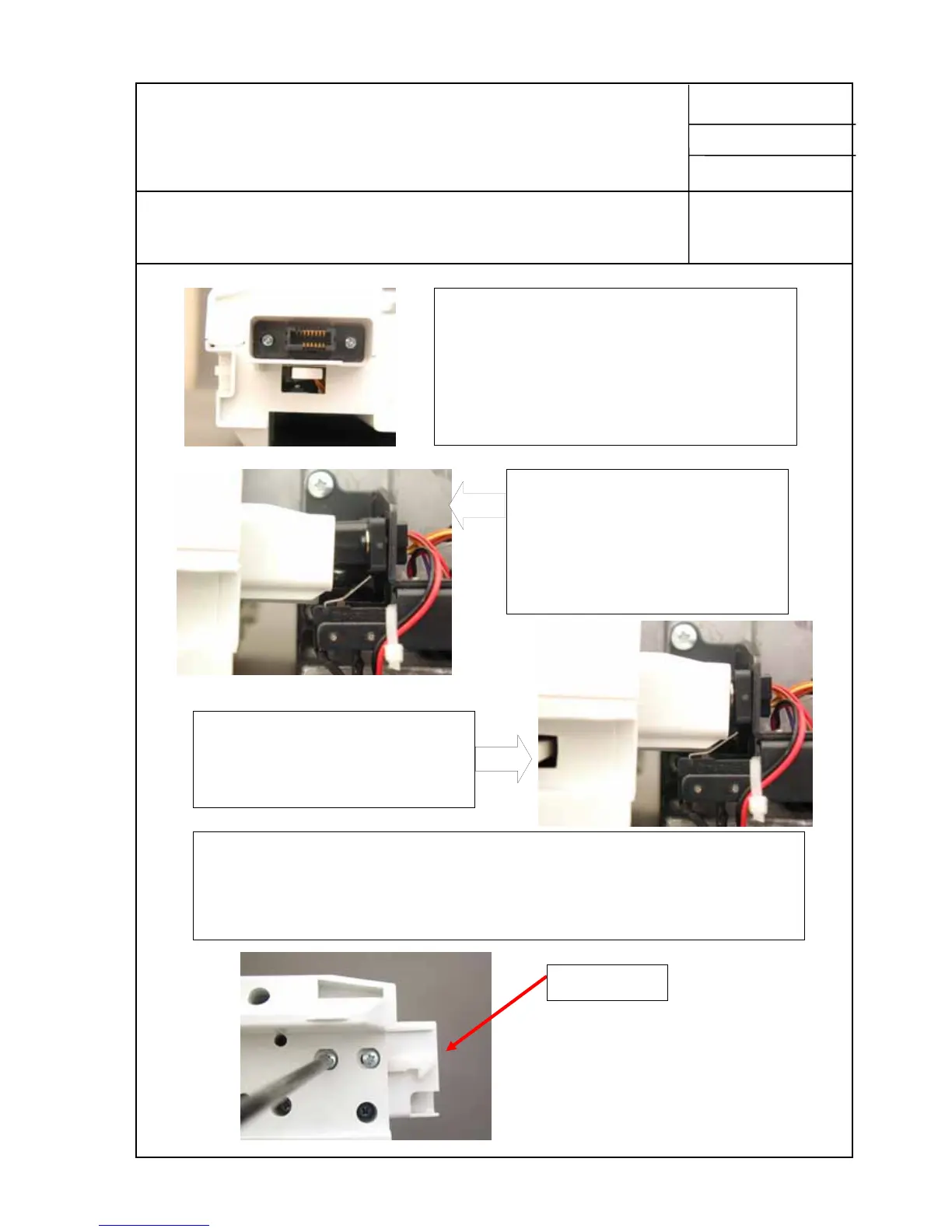

34. Connecting embroidery unit to machine
When installing the embroidery unit, it is
needed to turn on a micro switch in the
machine with the connecting position of the
embroidery unit.
Position of the tip of embroidery unit
and the micro switch when being
installed. (Front cover is removed
for photo shooting.)
The micro switch is turned on with
the tip of embroidery unit inserted.
It may not be possible to hold the ON position of the micro switch, unless
clearance between embroidery unit and machine is minimum. Recheck the
position of latch lever for this purpose.
Latch leve
To Next Page
