5.2. Productidentication
7
1112
1
2 3 4 4
9

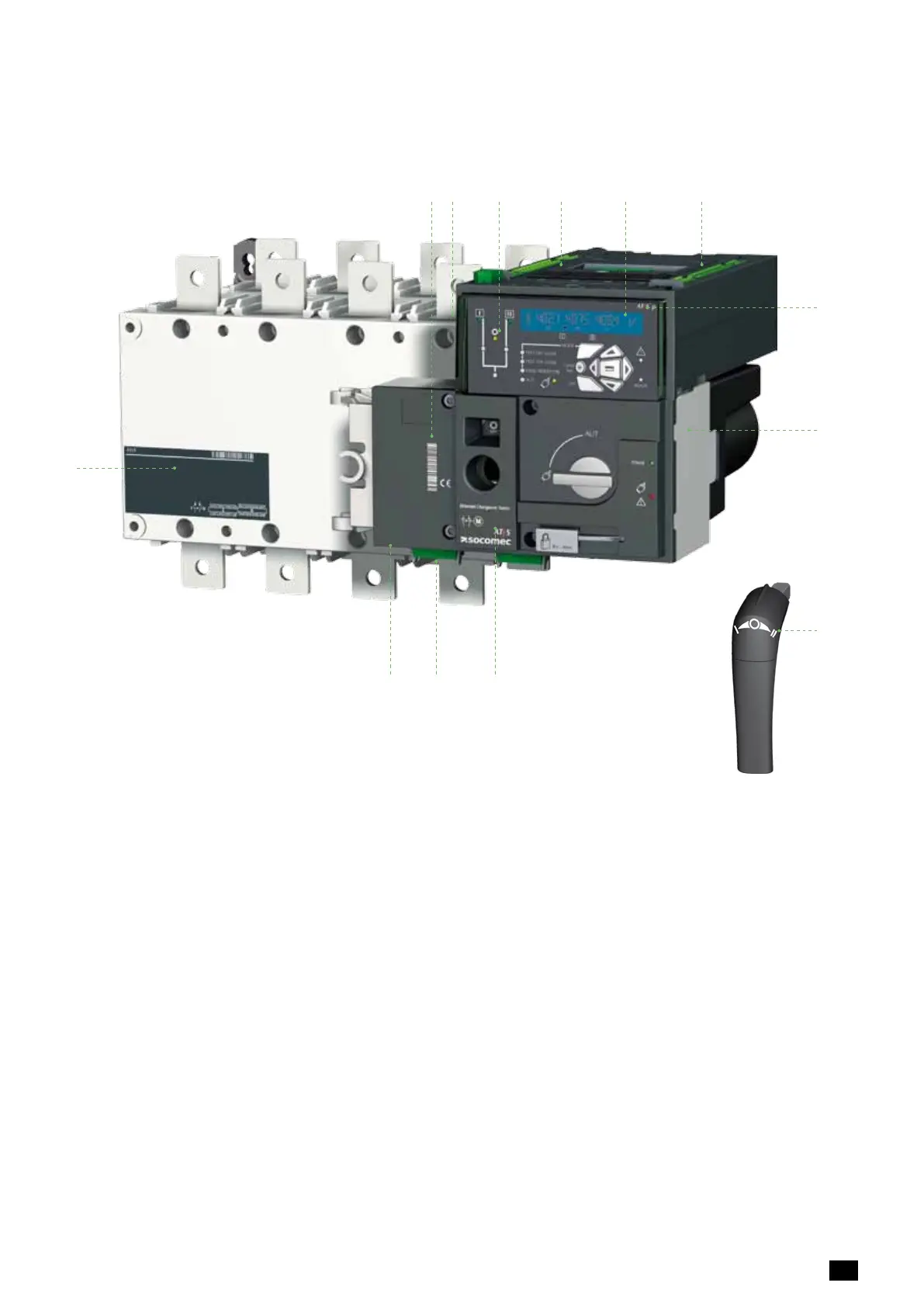

1. Main changeover switch identication label:
Electrical characteristics
Applicable standards and
Terminal incoming and outgoing wiring details.
2. Product serial number, barcode & CE marking.
3. Switch 1 (Front) and Switch 2 (back) identication labels
4. ATS controller terminal contact identication labels
5. Network status and switch position pictogram with LED’s
6. ATySp LCD Screen .
7. ATySproduct type identication. (ATySt, ATySg or ATySp)
8. Motor barcode and serial number
9. Emergency manual operation direction of rotation indication
10. ATySp product current rating and reference number label
11. Output contacts identication label
12. Input contacts identication label
