socomec ATyS r User Manual

74
EN
ATYSp - 542001E - SOCOMEC
A
B
acces_459_a_1_x_cat

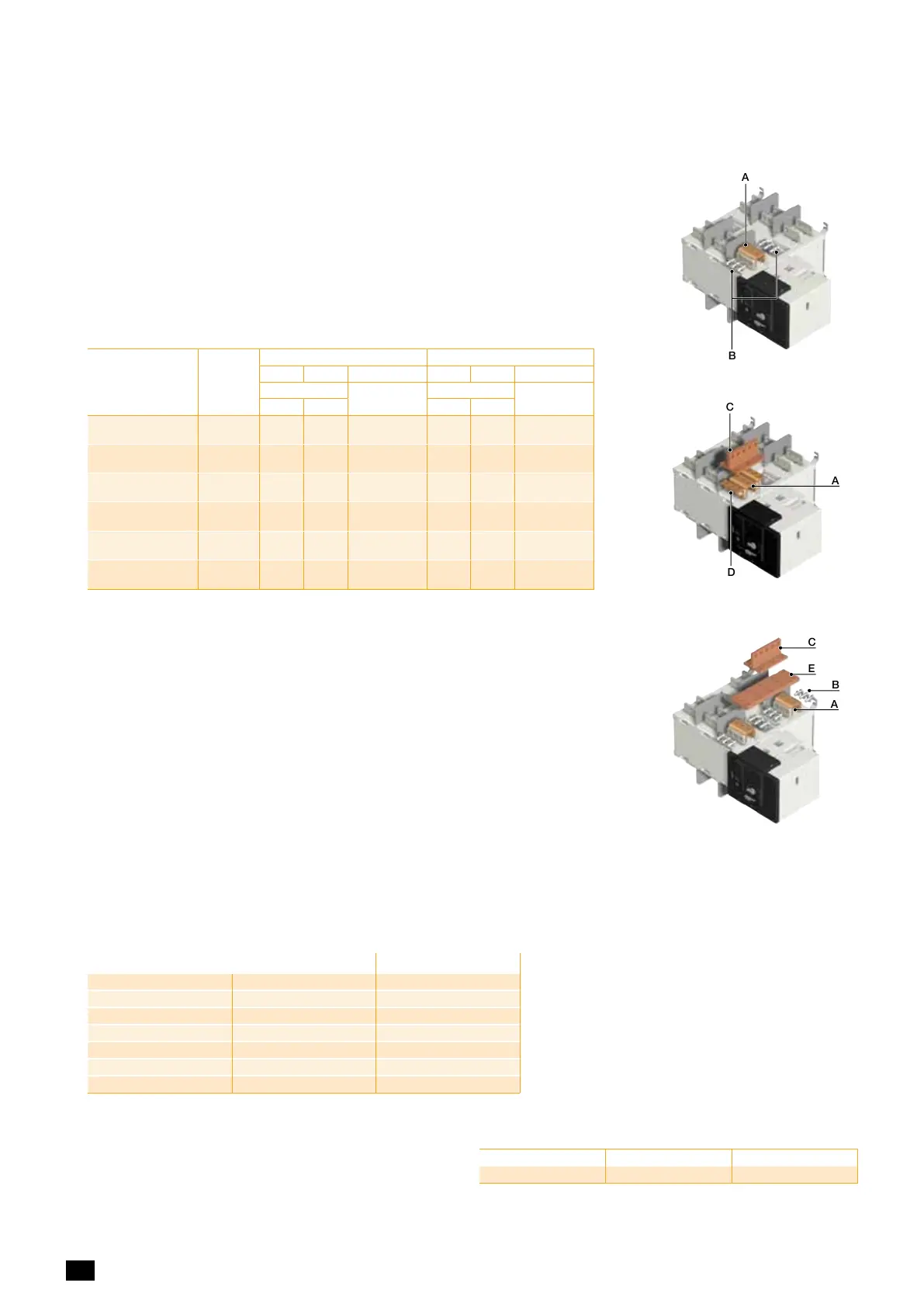

Fig. 1
A
D
C
acces_460_a_1_x_cat
Fig. 2
C
E
B
A
Fig. 3
Use
Enables:
- connection between the two power
terminals of the same pole for 2000 to
3200 A ratings (Fig. 1 and Fig 2)
- up or downstream bridging connection
(Fig. 3).
For 3200 A rating, the connection pieces
(part A) are delivered bridged from factory.
Bolt sets must be ordered separately.
Further details for these specific
accessories are available in the user guide
downloadable from www.socomec.com.
acces_461_a_1_x_cat
The numbers given in the table below refer to the contact connection.
Part
number
2000 – 2500 A 3200 A
Fig.1 Fig.2 Fig.3 Fig.1 Fig.2 Fig.3
Connection
OutagebridgeI
and II
Connection
OutagebridgeI
and II
Flat Onsite Flat Onsite
Connection
part A
2619 1200
1 1 2
(2)
included included included
Screw kit 35mm
part B
2699 1201
1
(1)
2
(2)
1
(1)
2
(2)
Screw kit 45mm
part B
2699 1200
1
(1)
1
(1)
T + screw kit
part C
2629 1200
1 1 1 1
Bracket + screw kit
part D
2639 1200
1 1
Bar + screw kit
part E
4109 0320
1 1
Then multiply the quantity by the number of contacts you need.
(1)
Choose the right length according to the width of the bars in place. If more than 20 mm, use
45 mm screws.
(2)
For the bridging setup you need 2 parts for each pole as the contacts of units I and II are
connected.
For example, for a 4 P 2500 A with onsite upstream connection (Fig. 2) and downstream
bridging (Fig. 3), please order
16 x 2619 1200 12 x 2629 1200
8 x 2699 1201 4 x 4109 0320
8 x 2639 1200
19.4. Copper bar connection kits
19.5. Solid neutral
Use
The connection kit enables the connection between the input and output
neutrals, without any need to switch the neutral.
Rating(A) Framesize Reference
125 … 200 B3
9509 0012
200 … 315 B4
9509 0025
400 B4
9509 0040
500 … 630 B5
9509 0063
800 … 1000 B6
9509 0080
1250 B6
9509 0120
1600 B7
9509 0160
19.6. Autotransformer400/230VAC
Use
For applications without neutral, this autotransformer
provides the 230VAC required to power these ATyS
products.
Rating(A) Framesize Reference
125 … 3200 B3 … B8
1599 4064
