ATYSp - 542001E - SOCOMEC
9.2. ProgrammingwiththeATySpkeypad
ATySp devices may also be programmed through the ATS controller keypad. This programming method is necessary
for products not equipped with Ethernet or Modbus communication modules that facilitate programming through
Easy Cong software described above. The keypad is a useful interface and programming method most especially
when changing a few parameters or simply interrogating the product.
4
3
1
2


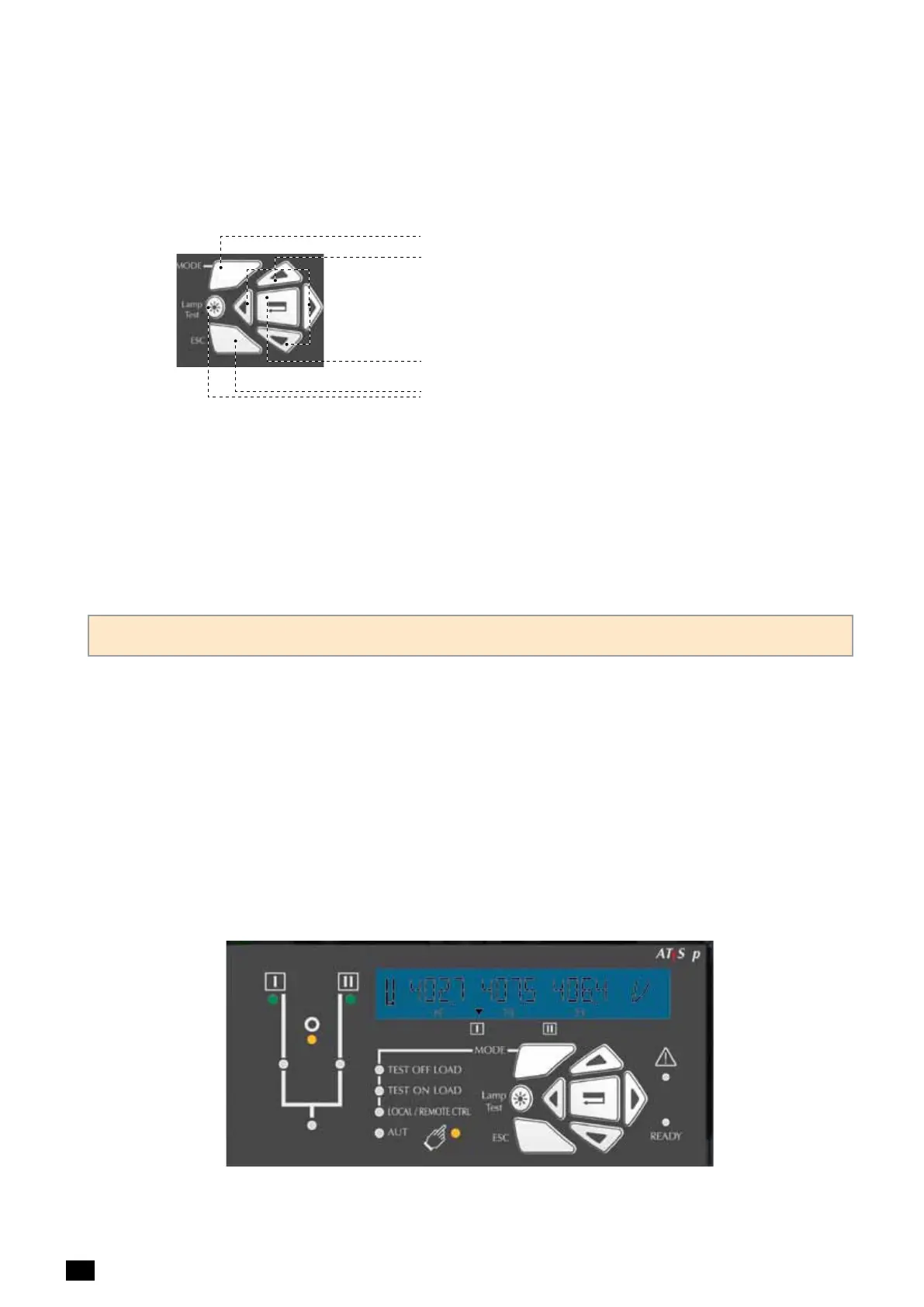

1. MODE key to shift between operation modes.
2. Navigation Keys to browse through the ATySp menus
without software.
3. Enter Key used to enter Prog Mode (Press and hold for 5
seconds) and to validate the settings programmed through
the keypad.
4. ESC key used to escape from a specific screen up to the
main menu.
5. Lamp test key to check the LED’s and LCD screen.
Programming access through the keypad is possible in Automatic or Manual mode, when the product is in a stable
position (I, 0 or II) with at least one supply source available.
Programming is not accessible whilst any cycle sequence is running.
NOTE:
The ATySp is delivered with default setting values based on most used customer application requirements. Should the user not
need to ne tune all the parameters this will allow for a quick setup of the ATySp. The minimum conguration parameters that
must be programmed are the type of network and application together with the voltage and frequency nominal values.
RefertoAnnexeIIpage81fordetailsregardingProgrammingwiththeATySpKeypad.
10. The LCD Display
10.1. Presentation
Display mode is activated as soon as the device is switched on. It enables parameter visualisation whatever the
functioning mode that is running. The switchover cycles take priority over any other display, and will show the time
delay countdowns as soon as they are activated. After this time, or following a switchover cycle, the screen will return
to source 1 (depending on the switch position) phase to phase voltage display (depending on the network type).
