13. Testmodes
The ATySp includes for On-Load as well as Off Loads tests that are always associated with Mains – Gen applications.

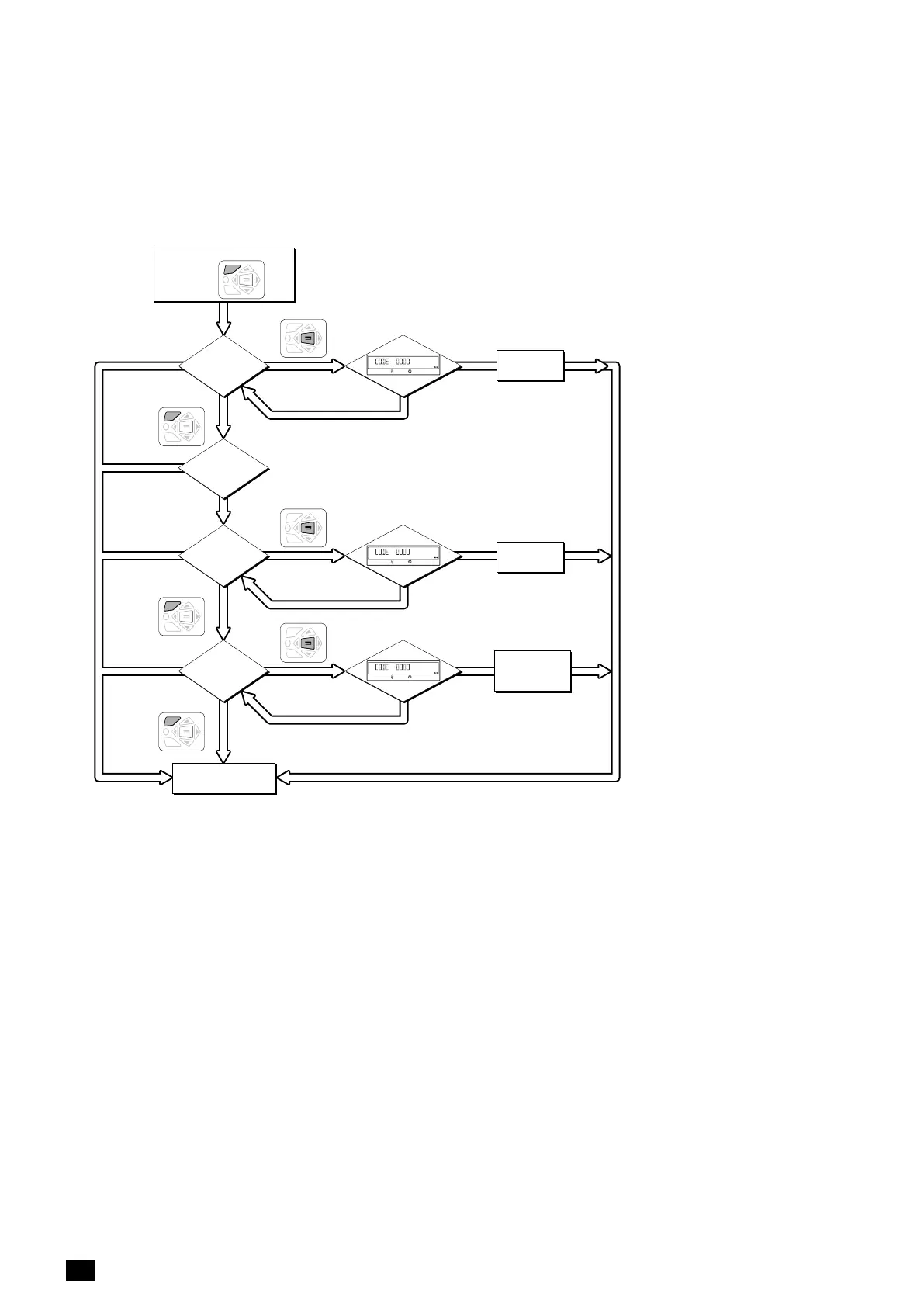

To operate the tests manually through the keypad the following ow diagram shows the different steps.
Tests as well as Engine Exerciser cycles are also easily programmed and triggered when using the ATyS Webserver
and the Easy-Cong software. Webserver and software will require the Ethernet option installed.
Tests output
Test off load
Press the test button
Test on load
Test on load
sequence
Switch position
I, 0, II check

Test off load
sequence
Auto
Check
TEST
After 5 secs
After 5 secs Yes End
* Press test button to choose the position to reach.
End
End
Code
OK
Code
OK
Code
OK
Code
not OK
Code
not OK
Code
not OK
No
Yes
Yes
Yes
No
No
No
After 5 secs
13.1. TestOffLoad
This test is for Main – Gen applications only and possible to run in automatic as well as manual mode. It can be
considered as a manual Genset start order without switching over the load from the main supply to the backup.
Description:
• This mode enables you to test run the Genset without initiating a load transfer
• The Genset is started and stopped as normal (via the «Gen set start» contact: output 72-71-74).
• This test is always possible to run, except during a main supply (S1) loss sequence.
(This is a condition that would stop the test).
• The test duration can be programmed (TFT time delay).
Activation:
• either on the ATySp front panel, via the test modes,
• or via the D20 interface,
• or via the programmable input,
• or via communication (Ethernet or MODBUS).
