ATYSp - 542001E - SOCOMEC

2000Ato3200A

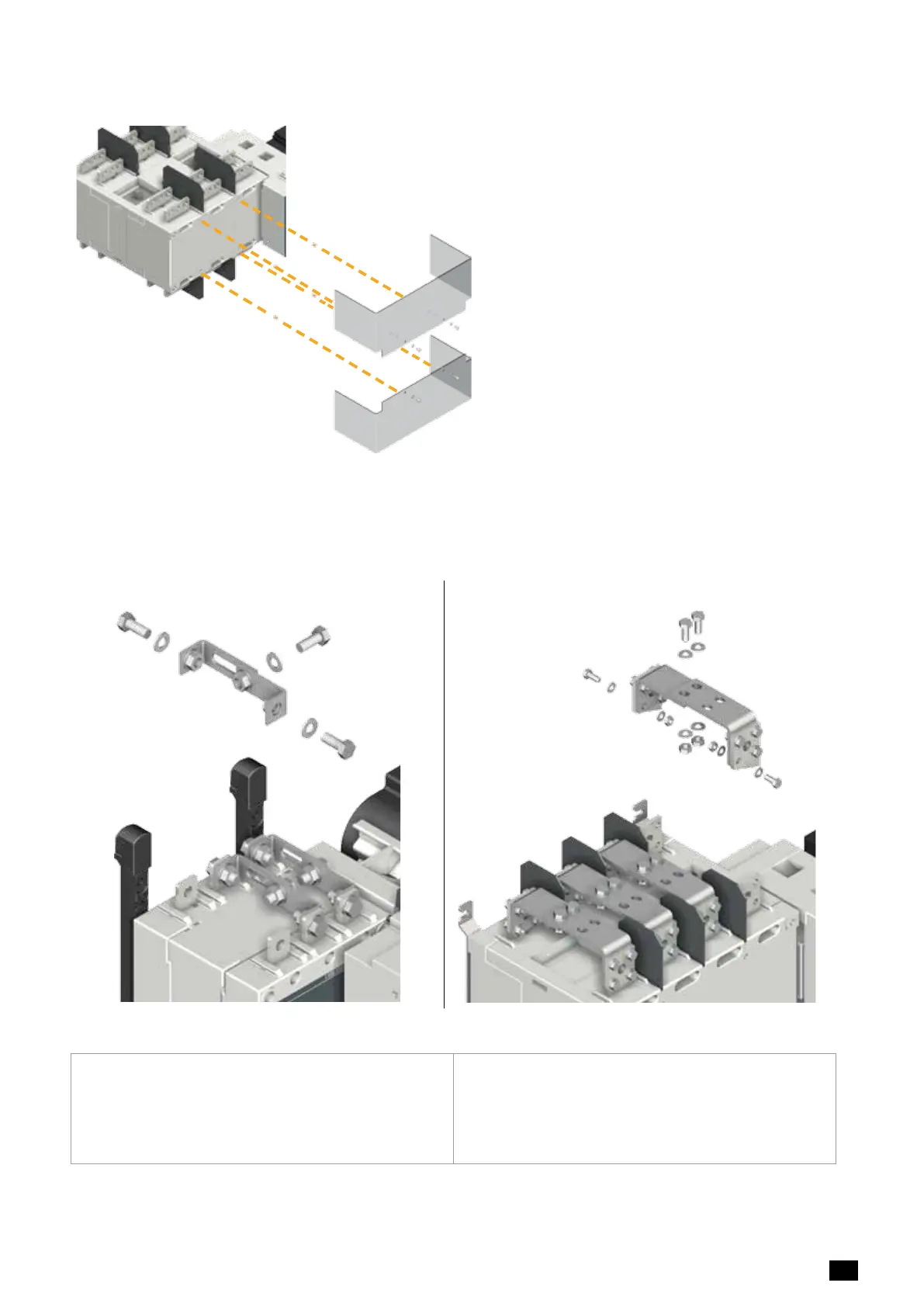

6.3.3. Bridgingbarinstallation

125Ato630A 800Ato1600A

Itispossibletomountthebridgingbarsoneithersideoftheswitch.

Recommended tightening torque:

M6: 4,5 N.m

M8: 8,3 N.m

M10: 20 N.m

M12: 40 N.m

Maximum tightening torque:

M6: 5,4 N.m

M8: 13 N.m

M10: 26 N.m

M12: 45 N.m
