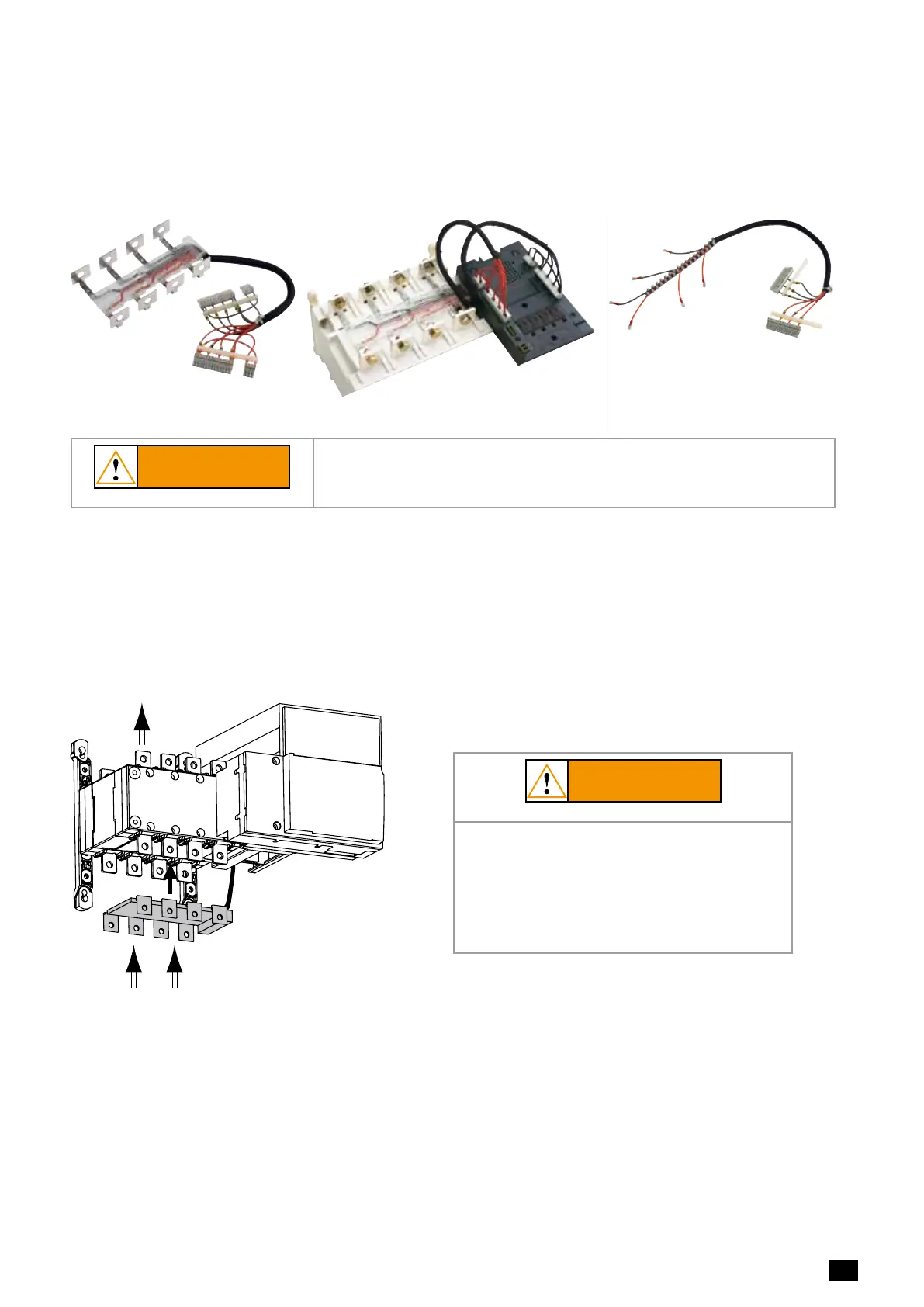

7.4. Voltagesensingandpowersupplykit
The ATySp voltage sensing kit is available as an accessory and is designed to tap directly of the power section on
Switch I and Switch II terminals without the need to add protection fuses. The sensing kit is designed with optimised
cable lengths and utilises silicon conductors held safely in an isolated mechanical support.
FrameB3-B5-125A-630A
FrameB6-B8-800A-
3200A
CAUTION
Ensure to mount the kit onto the product before connecting the power cables.
Be careful not to damage the contacts during kit mounting and during power cables
connections (Tighten the cables carefully).
7.4.1. Standardconguration
The sensing and power supply kit may be ordered in 3 phases network 4 wires or 3 wires.
It can be used with top or bottom cables entry. The only connection to respect is that measures of the source on
Switch I must be connected to the inputs located on the right of the electronic module and the measures of the
source on Switch II must be connected to the inputs located on the left of the electronic module.
Sources
LOAD
Load
Sources
CAUTION
Pay attention when wiring the power cables (Respect
to the sensing kit legend)
3 wire kits (those without a neutral) do not include for
the power supply to terminals. (101-102 and 201 –
202)
Ensure that you have ordered the correct reference
prior to installation.
(Refer to the accessory section for details).
