Technical data
Motorisation Module ATS Control Module
Input Qty 5 6
Direct Current Iin 0.35 to 0.5mA 1 to 2.5mA
Line resistance 1kΩ 1kΩ
Line length 100m (Min. wire 1.5mm² #16AWG) 100m (Min. wire 1.5mm² #16AWG)
Pulse duration 60ms 60ms
Power per Input 0.06VA 0.03VA
Surge protectionVin_sg 4.8kV (1.2/50µs surge) 2.4kV (1.2/50µs surge)
ESD withstand voltage (Contact/air) 2/4kV 2/4kV
Insulation (Common mode) 4.8kVAC
(Between I/P and all common parts)
4.8kVAC
(Between I/P and all common
parts)
Terminal connector 1.5mm² minimum / 2.5mm² max 1.5mm² minimum / 2.5mm² max

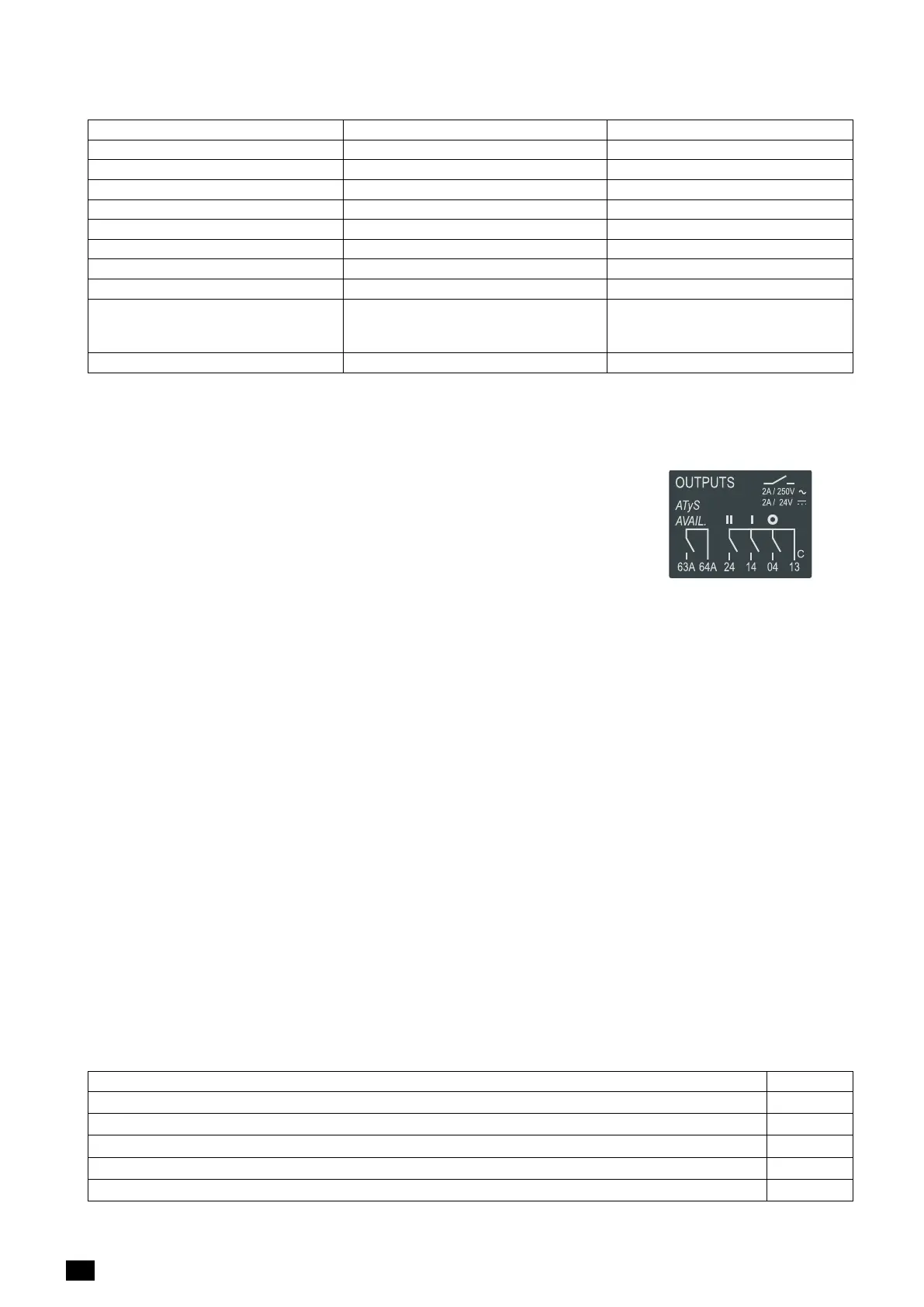

8.2.5.Fixedoutputs-Drycontacts
Description
As standard, the ATyS p is equipped with four xed outputs located on the
motorisation module.
(Dry contacts to be powered by the user).

The ATySp is equipped with integrated position (I – O – II) auxiliary contact outputs through 3 off micro switches.
Pins13,04,14,24
(Normally Open contacts with pin 13 as common)

Pin 63A – 64A
(Normally Open contact that is held closed when the motorisation is available).
This contact gives constant feedback about the product’s availability and it’s capacity to transfer from the main
supply to the alternative. The feedback given is relative to the motorisation module excluding the ATS controller that
may be monitored separately.
The ATySp performs a self diagnostics test on the motorisation module at startup, when put from Manual -> Auto
and then every 5 minutes. This test ensures that the ATySp is operational in terms of control inputs. Should one of
the tests fail, a second test is performed to reconrm the error state. Should the ATySp motorisation module become
unavailable, contact 63A – 64A are opened, the power/ready LED’s are switched off, and the fault LED is activated.
The fault LED will remain active for as long as sufcient power is available and the fault condition is not reset. The
fault is reset when the product is switched from AUT -> Manual -> Auto mode.
ATyS p (Motorisation) Product Available / Unavailable Watchdog relay will open for any of the following reasons
below: For added security, “Product Availability” is informative and does not necessarily inhibit motor operation.
ProductUnavailable+WarningLEDCondition: Inhibition
Product in manual mode Yes
Motor not detected (Autotest) No
Control voltage out of range Yes
Operating factor fault active (N° of operations / min) Yes
Powerfail active Yes
