7.3.2. ATySpinputandoutputcontacts

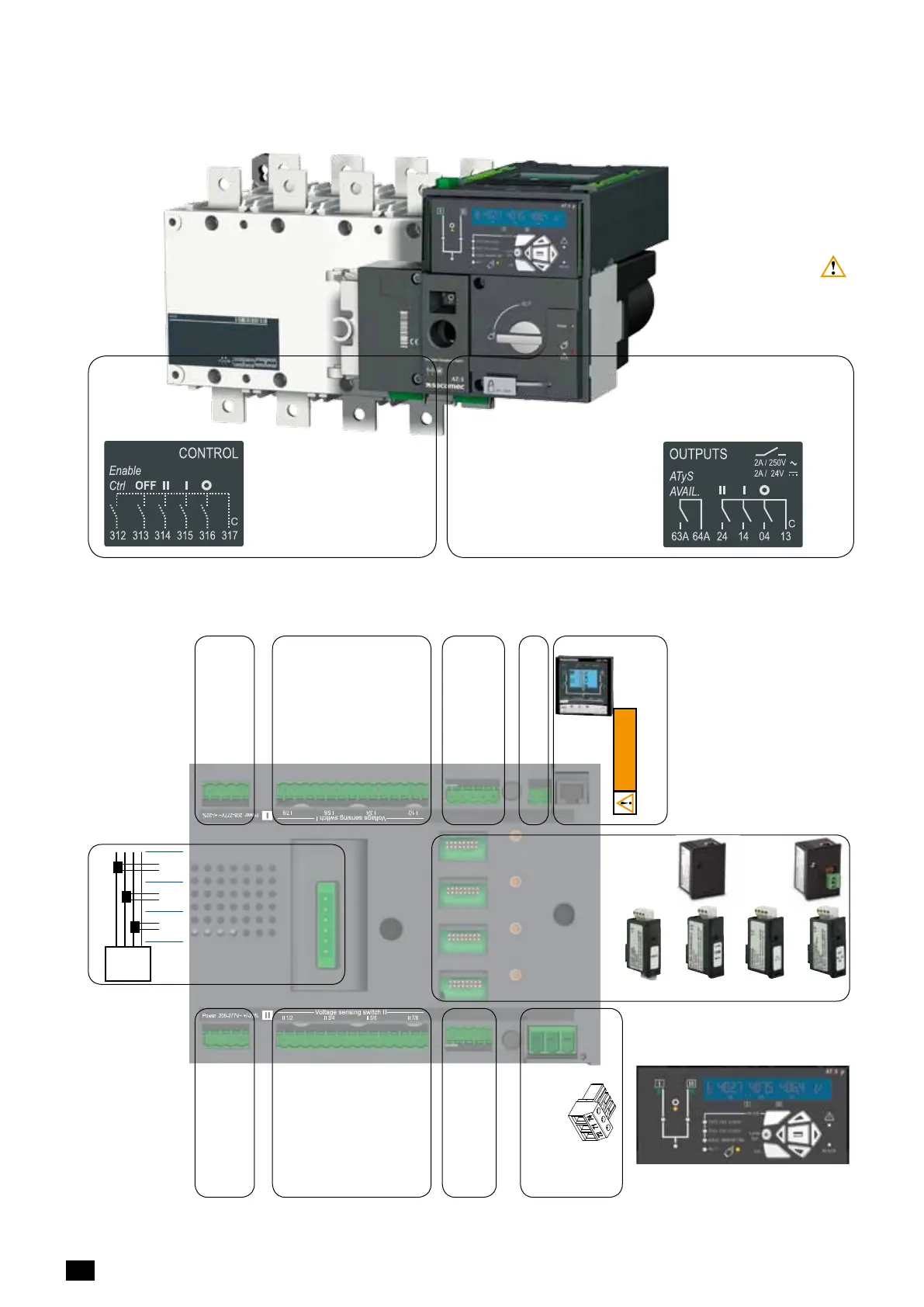

7.3.2.1. Motorisation module wiring
Control Enable: 312
Override to OFF: 313
Sw to Pos II I/P: 314
Sw to Pos I I/P: 315
Sw to Pos 0 I/P: 316
Common: 317
Prod Avail Common 63A
Prod Avail O/P: 64A
Pos II Aux Contact: 24
Pos I Aux Contact: 14
Pos 0 Aux Contact: 04
Common: 13
All pressure on the connector
pins is to be avoided during
wiring of the auxiliary cables
7.3.2.2. ATS control module wiring
63B 64B
72 71 74
413 414 415 416 417
207 208 209 210
Prog Output
NC
Common
NO
Aux Supply-1 Power 230V 208-277VAC ±20% (166-332Vac)
Aux Supply-2
Power 230V
208-277VAC ±20%
(166-332Vac)
Voltage Sensing Source 1 - 1Ph/3Ph 0-332 / 575
Voltage Sensing
Source 2 - 1Ph/3Ph
0-332 / 575
RJ45
Dual auxiliary supply: Uc 208-277V~ +/-20% 50/60Hz Power comsumption: 22VA
See instruction sheet
ATS CONTROLLER
To D10
To D20
64B 63B
64B 63B
417 416 415 414 413
207 208 209 210
417 416 415 414 413
207 208 209 210
7172 74
7172 74
ATyS t
Dual auxiliary supply: Uc 208-277V~ +/-20% 50/60Hz Power comsumption: 22VA
See instruction sheet
ATS CONTROLLER
ATyS p
Dual auxiliary supply: Uc 208-277V~ +/-20% 50/60Hz Power comsumption: 22VA
See instruction sheet
ATS CONTROLLER
ATyS g
Dual auxiliary supply: Uc 208-277V~ +/-20% 50/60Hz Power comsumption: 22VA
See instruction sheet
ATS CONTROLLER
To D10
To D20
64B 63B
64B 63B
417 416 415 414 413
207 208 209 210
417 416 415 414 413
207 208 209 210
7172 74
7172 74
ATyS t
Dual auxiliary supply: Uc 208-277V~ +/-20% 50/60Hz Power comsumption: 22VA
See instruction sheet
ATS CONTROLLER
ATyS p
Dual auxiliary supply: Uc 208-277V~ +/-20% 50/60Hz Power comsumption: 22VA
See instruction sheet
ATS CONTROLLER
ATyS g
Genset
Start
Signal
I1
R1+ R2- S1+ S2- T1+ T2-
I2 I3
LOAD
(CTs : 1A or 2A)
Optional
modules
Extended I/O
2xIP 2xO/P
Modbus
RS485
Pulsed O/P 4-20mA
Ethernet/Modbus
TCP Simple
orGateway
CAUTION
The RJ45 terminal is not a LAN connection
}
Common Prog Intputs
Common -
To Opt Mod +
}
Prog Inputs
101- L/N 102- N/L 7/8 - 103 5/6 - 104 3/4 - 105 1/2 - 106
L/N - 201 N/L - 202
1/2 - 203 3/4 - 204 5/6 - 205 7/8 - 206
