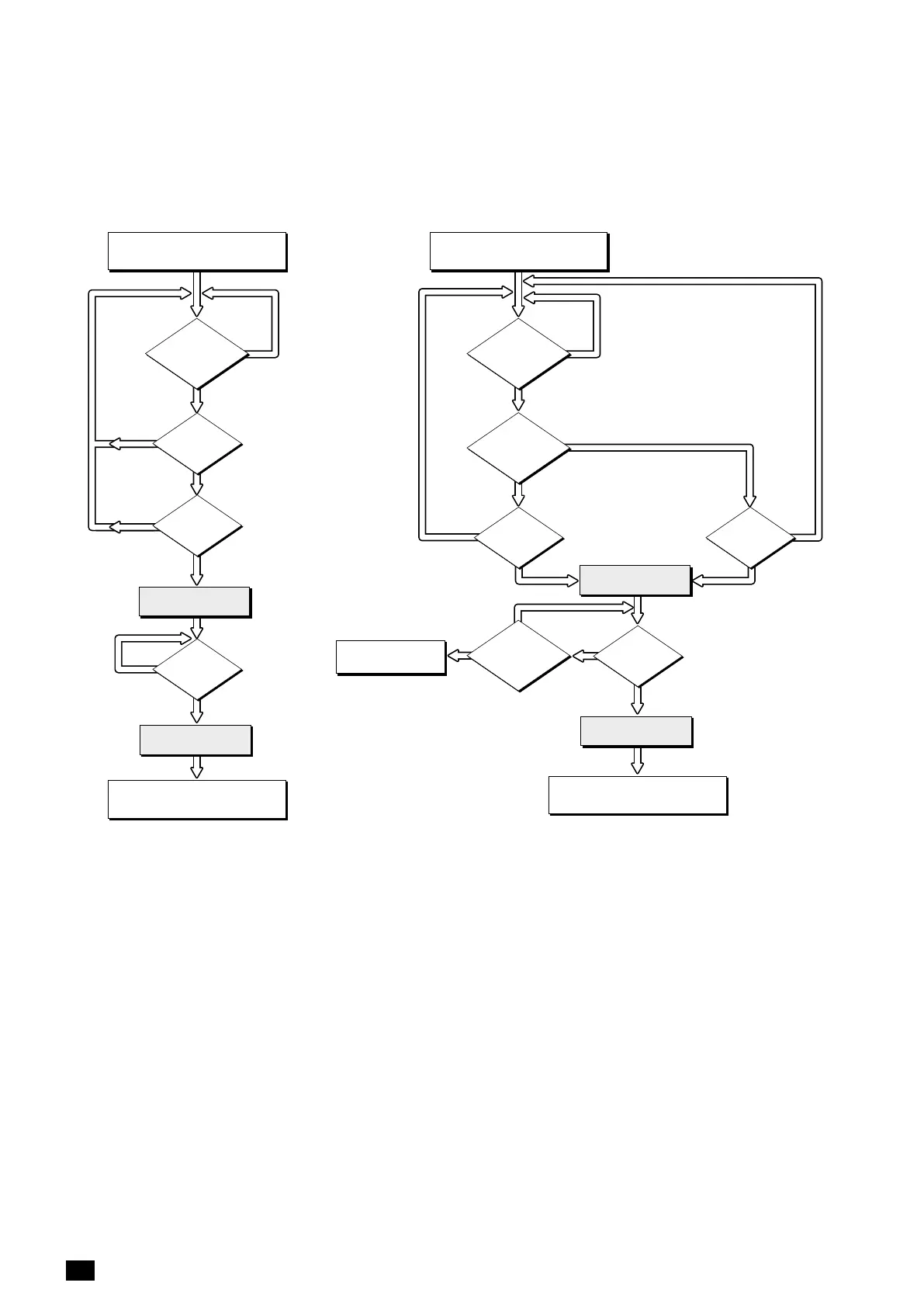

12.3. Priority source loss and restoration sequence M-M
Stable position in M-M applications
Conguration
• APP = M-M: Network - Network application
End ODT?
End 2RT?
Priority source lost?
End ODT?
Priority source
present?
Emergency source
present?
End 1FT?
Priority source
present?
End 1RT?
End dyn.
1RT. ?
sequence
No
No
No
No
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
12.4. Prioritysourceautomaticrestorationsequence
This sequence is started as soon as the system is in AUTO mode and in position II. Specic function Automatic
retransfer inhibited: Once source 1 is restored, it may be preferable not to retransfer the load from source 2 to source
1 immediately. Once the retransfer from source 2 to source 1 is possible, the RETRANS function locks the retransfer,
and the AUT LED ashes pending the operator’s conrmation.
The VALIDATION key must be pressed or an input must be programmed on RTC to authorise the retransfer.
