S6
P
or
table
Digital
Color
Doppler
Ultrasound
System
Service
Manual

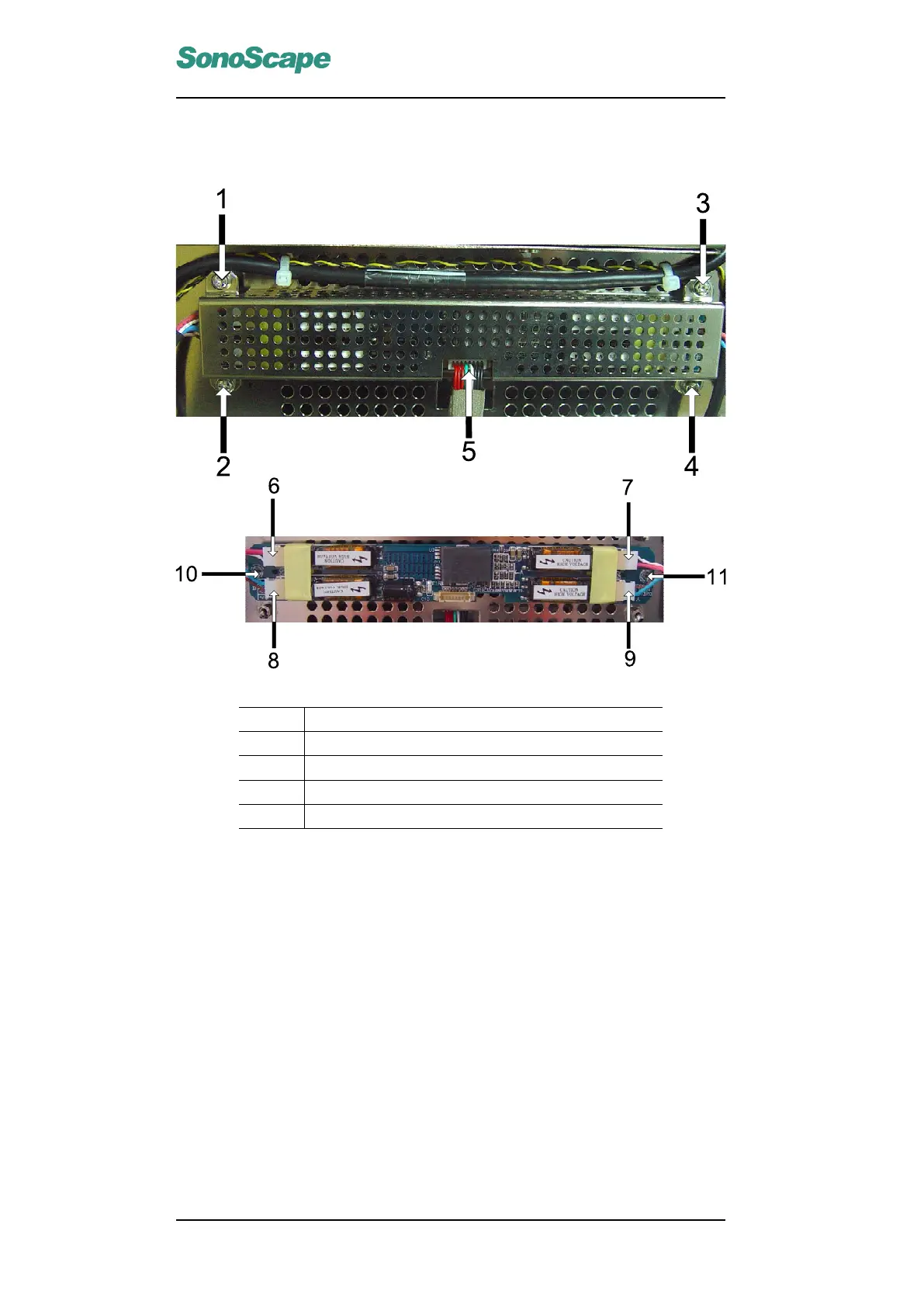

5.6
V
oltage
Conversion
Board
Item
Description
1
∼
4
Combination
screws
M3
×
6
5
P
ower
connector
for
voltage
conversion
board
6
∼
9
LCD
power
wires
10
∼
11
Plastic
screws
Instructions
R
emove
the
four
screws
(1
∼
4).
R
emove
the
power
connector
(5)
and
remove
the
metal
cover
.
R
emove
the
power
wires
(6
∼
9).
Unfasten
the
plastic
screws
(10
∼
11)
and
remove
the
voltage
conversion
board.
P/N:
4720-0034-01A
5-10
39
41
