S6 Portable Digital Color Doppler Ultrasound System
Service Manual

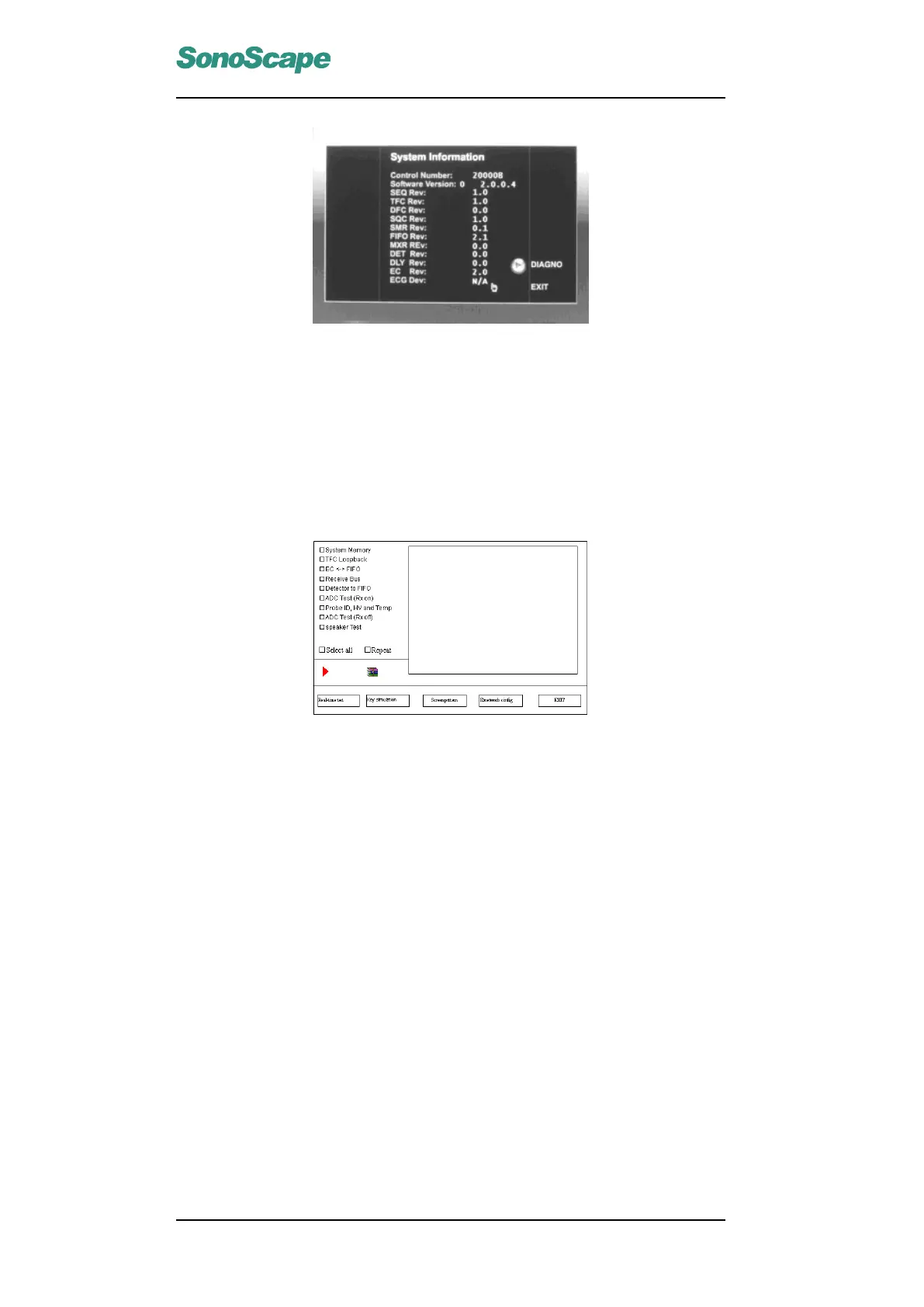

Figure 8.1: System Information Window
The Control Number shown hereis a unique number which varies from
equipment to equipment; Software Version indicates the current version
number which will be updated with system upgrade.
Select DIAGNO and press SET key. Type in the correct password followed
by Enter key, and this brings to the test interface, or test mode (see below.)
Figure 8.2: Test Interface
The test interface consists of five parts: system test, real-time test, key
simulation, screen pattern and ezNetwork configuration.
Note: The correct password is required to enter the test mode. Authorized
personals may request for this password from SonoScape.
8.3.1 Run Test 8.2.1 (Speaker Test)
a) Move the cursor to the check box next to “Speaker Test” and press SET
key. (A cross symbol in the check box indicates that the corresponding
item has been selected.)
b) Click ▷ PLAY button to execute Speaker Test. The screen will display
“Left Channel (1000Hz) Press any key to continue. . . ” The left chan-
nel should produce a sound at 1,000Hz if it’s working properly. Press
any key (excluding trackball, left and right cursor keys) to continue the
test in turn with Right Channel (1000Hz), Left Channel (500Hz), Right
Channel (500Hz), Left Channel (125Hz) and Right Channel (125Hz).
P/N: 4720-0034-01A
8-4
