S6 Portable Digital Color Doppler Ultrasound System
Service Manual

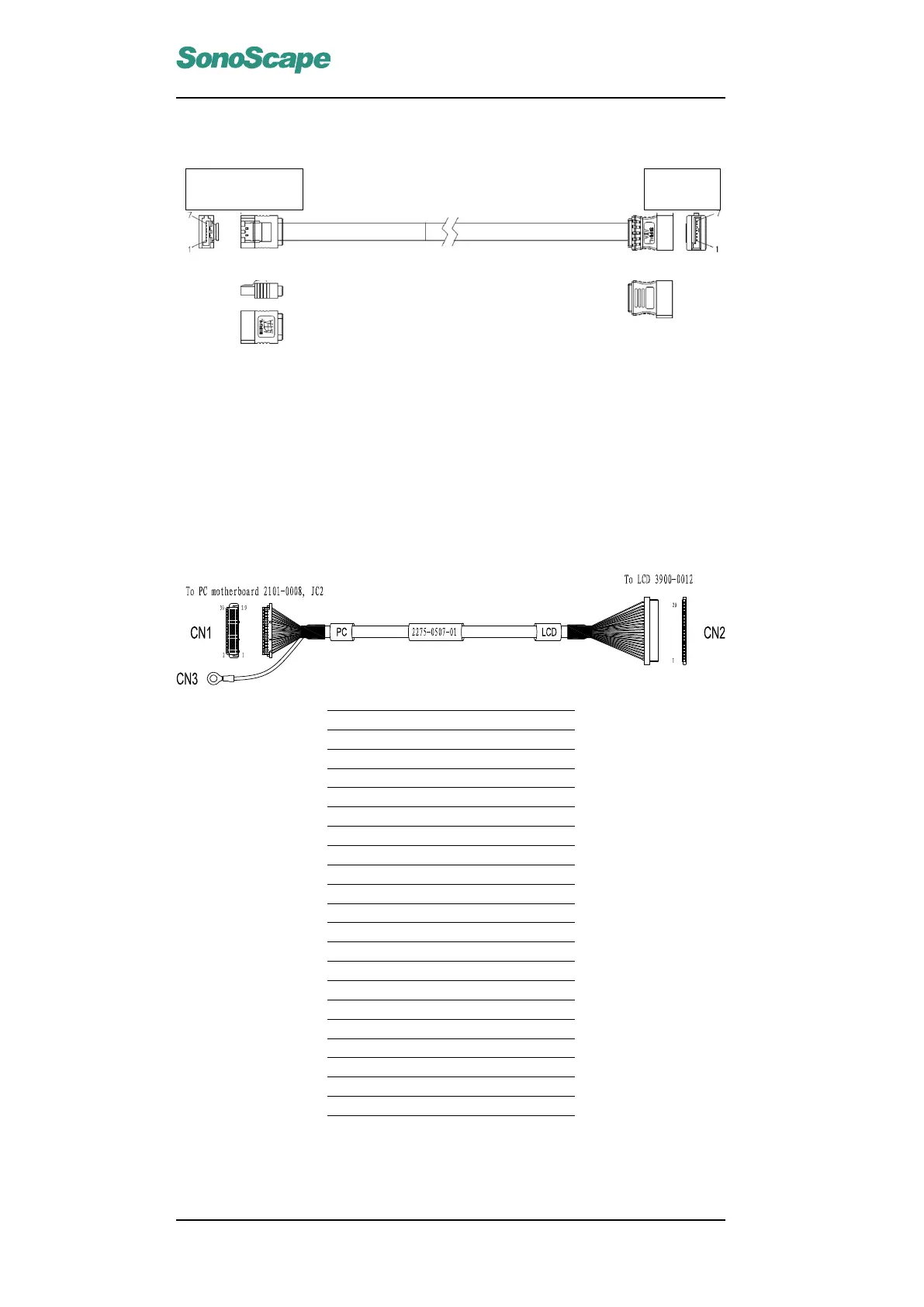

6.3.6 SATA cable for HDD (3520-0506)
To PC motherboard
SATA1
To HDD
Connection Instructions:
Connect CN1 to the SATA socket on the motherboard. Connect CN2 to the
SATA socket on the HDD. To disconnect CN1, press the metal tab and re-
lease the connector gently. Be careful when handling the SATA connectors,
they can be easily damaged.
6.3.7 LVDS Signal Cable (3520-0507)
Signal Color CN1 CN2
VCC red/black 1 1
VCC red/blue 2 2
GND pink/black 7 3
GND pink/black 8 4
Rx0- orange/white 11 5
Rx0+ orange 9 6
GND green/black 13 7
Rx1- violet 17 8
Rx1+ violet/white 15 9
GND green 19 10
Rx2- blue/black 23 11
Rx2+ blue 21 12
GND red 25 13
CK- yellow/red 5 14
CK+ yellow/blue 3 15
GND red 26 16
Rx3- brown 29 17
Rx3+ brown/white 27 18
GND black/white 14 19
GND black 20 20
Connection Instructions:
Connect CN1 to LVDS1 on the motherboard. Connect CN3 to ground pin
on the motherboard. Connect CN2 to the monitor.
P/N: 4720-0034-01A
6-6
