6
(E)
Chapter 1 Overview
Overview
BKM-120D SDI 4:2:2 Input Adaptor
Includes a decoder for serial digital component signals.
D1 SDI input/output connectors for two serial digital
channels and active loop-through output connectors.
BKM-127W NTSC/PAL Input Adaptor
Includes decoders for analog composite NTSC and
PAL signals. Input/output connectors for two analog
channels and one YC channel.
BKM-129X Analog Component Input Adaptor
Includes input/output connectors for one analog
channel and EXT SYNC input/output connectors.
The BKM-129X is mounted to the monitor at the
factory.
BKM-142HD HD SDI Input Adaptor
Includes a decoder for HD serial digital signals and
input/output connectors for two serial digital signal
channels and monitor output connector.
Notes
•The BKM-142HD uses two input option slots.
•The signal from MONITOR OUT connector does not
satisfy the ON-LINE signal specifications.
7
(E)
Chapter 1 Overview

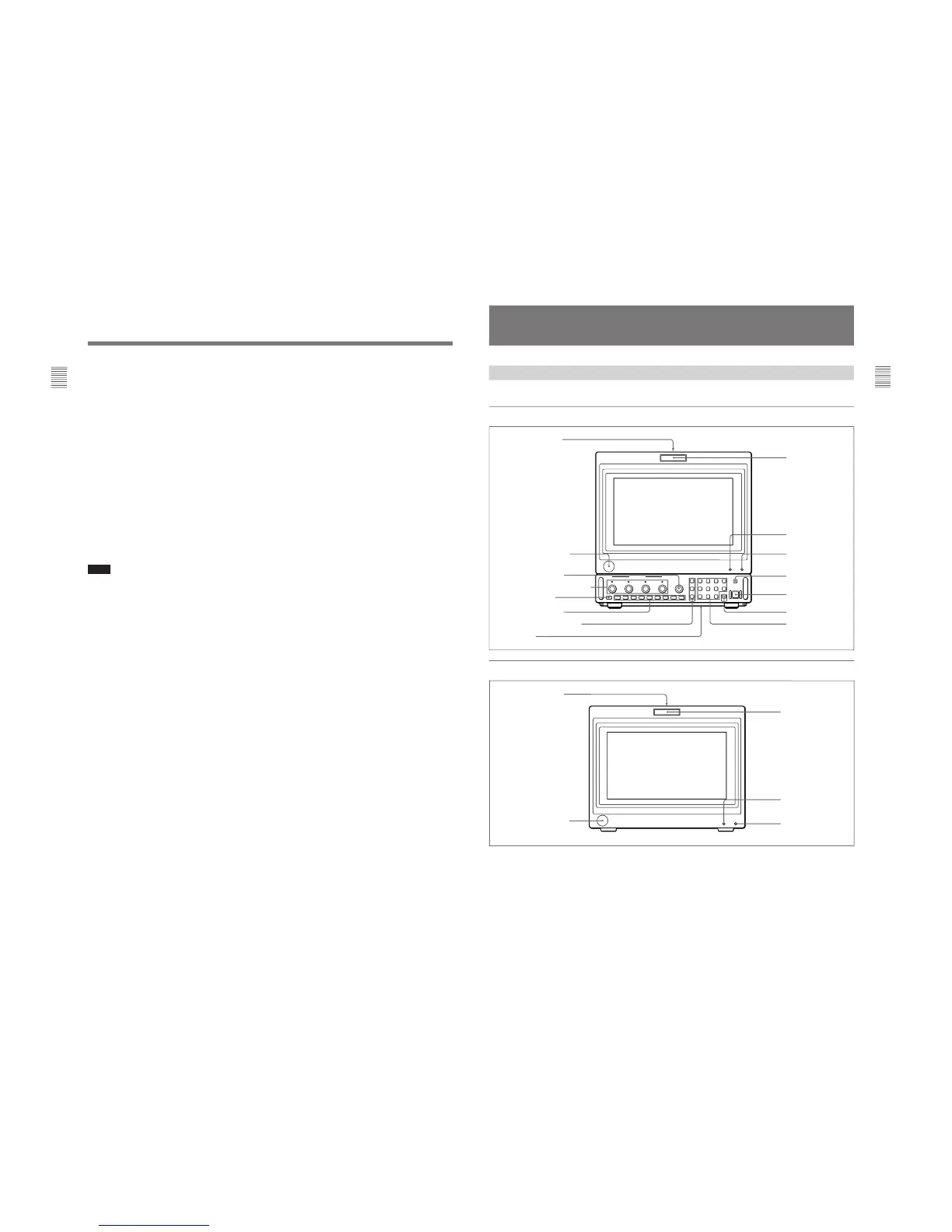

Location and Function of Parts
BVM-D9H1U/D9H1E/D9H1A/D9H5U/D9H5E/D9H5A Front Panel
For the BVM-D14H1U/D14H1E/D14H1A/D14H5U/D14H5E/D14H5A, see pages 16(E) to 20(E).
BVM-D9H1U/D9H1E/D9H1A
BVM-D9H5U/D9H5E/D9H5A
1 Tally lamp
2 STANDBY lamp
3 POWER lamp
4 DEGAUSS button
5 POWER switch
6 Ent button
7 Numeric keypad
8 Carrying handle
9 OPTION connector
0 VOLUME control
qa MANUAL adjustment knobs
qs SHIFT button
qd Function buttons
qf Menu operation buttons
qg Stand
1 Tally lamp
2 STANDBY lamp
3 POWER lamp
8 Carrying handle
9 OPTION connector
To Next Page
