2-4

BVM-D9H1U/D9H5U/D9H1E/D9H5E/D9H1A/D9H5A

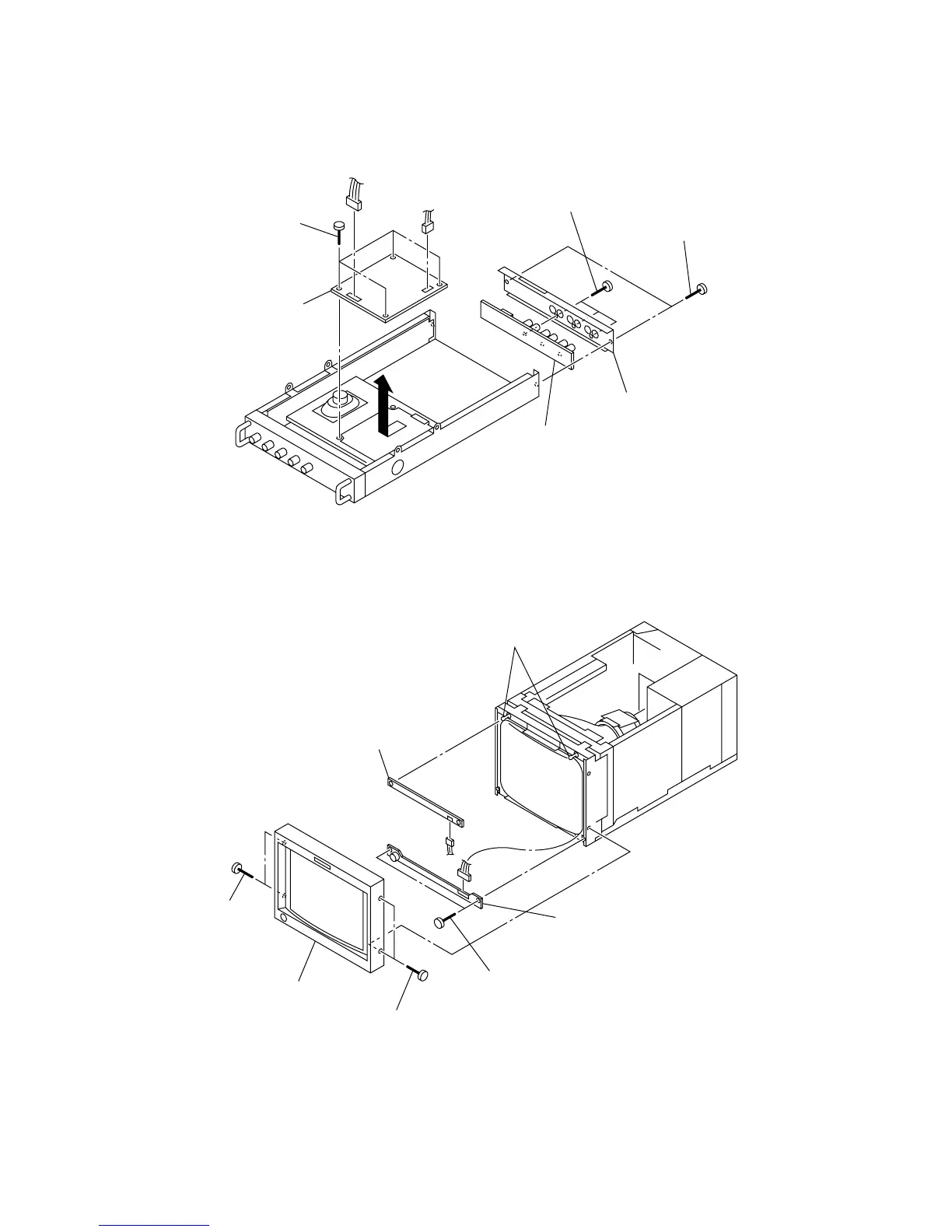

2-2-4. HC and HD Boards Removal (D9H5)

2-2-5. YA and YB Boards Removal

5 Four screws

(+BVTP 3 × 6)

3 Three screws

(+BVTP 3 × 8)

CN3

CN5

1 Two screws

(+BVTT 3 × 6)

6 HC board

4 HD board

2 Rear cover

PC support

CN900

CN951

6 YA board

5 YB board

4 Two screws

(+BVTT 3 × 6)

3 Bezel (16:9) assy

1 Two screws

(+B 4 × 6)

2 Two screws

(+B 4 × 6)
