8-1
BVM-D9H1U/D9H5U/D9H1E/D9H5E/D9H1A/D9H5A
Section 8
Exploded Views
• Items marked “ * ” are not stocked since they are seldom required
for routine service. Some delay should be anticipated when order-
ing these items.
• Items with no part number and no description are not stocked be-
cause they are seldom required for routine service.
• The construction parts of an assembled part are indicated with a
collation number in the remarks column.
Note:In case the handle is defective, only handle can not be replaced.
Replace the cabinet assy.
The components identified marked ! are
critical for safety.
Replace only with the part number specified.
Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
NOTE :
Ref.No. Part No. Description RemarkRef.No. Part No. Description Remark

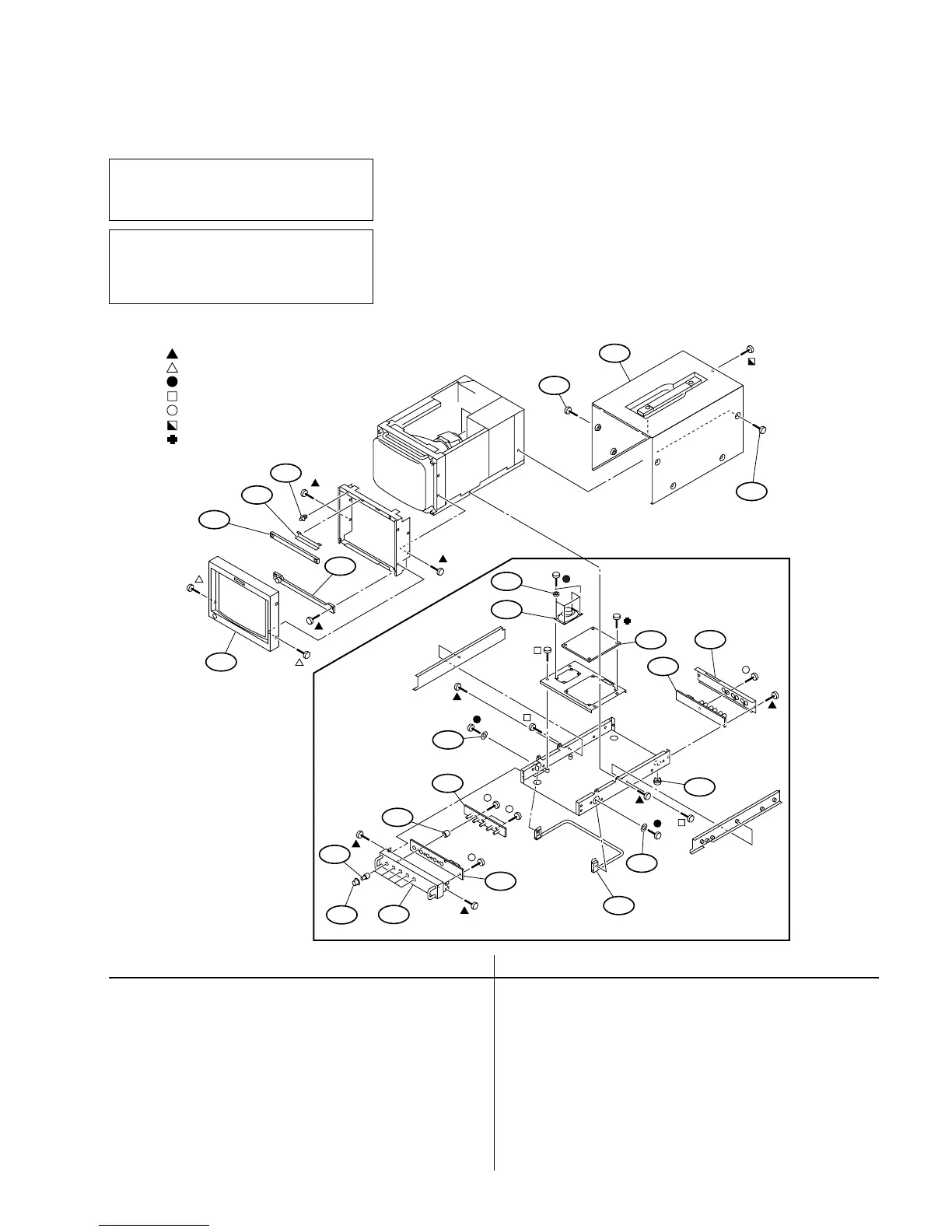

8-1. CHASSIS
CHASSIS
D9H5U
: 7-685-871-09 +BVTT 3x6
: 7-682-560-09 +B 4x6
: 7-682-903-21 +PWH 3x8
: 7-682-548-09 +B 3x8
: 7-685-646-79 +BVTP 3x8
: 7-682-548-04 +B 3x8
: 7-685-645-79 +BVTP 3x6
1
2
3
4
5
6
9
9
10
11
12
13
14
15
16
16
17
18
19
20
22
23
24
1 X-4037-176-1 BEZEL (16:9) ASSY
2 * A-1373-750-A YB MOUNT
3 * A-1373-751-A YA MOUNT
4 * 4-303-473-00 SUPPORT, PC
5 * 4-073-708-01 PLATE, LIGHT INTERCEPTION
6 X-4037-295-2 CABINET ASSY (D9H1A, D9H1E)
X-4037-295-1 CABINET ASSY (D9H1U)
X-4037-296-1 CABINET ASSY (D9H5U)
X-4037-296-2 CABINET ASSY (D9H5A, D9H5E)
9 4-063-969-21 SCREW (OS), CASE, CLAW
10 1-544-063-12 SPEAKER (D9H5)
11 * 4-038-987-01 CUSHION, SPEAKER (D9H5)
12 * A-1375-186-A HC COMPL (D9H5)
13 * 4-072-761-01 COVER, REAR (D9H5)
14 * A-1372-677-A HD MOUNT (D9H5)
15 * X-4036-829-1 STAND ASSY (D9H5)
16 3-701-444-21 WASHER, 6 (D9H5)
17 * A-1372-676-A HB MOUNT (D9H5)
18 * 4-072-755-01 SPACER (D9H5)
19 4-072-754-01 SHAFT (D9H5)
20 4-072-756-01 BUTTON, VOLUME (D9H5)
22 X-4037-180-1 PANEL ASSY, CONTROL (D9H5)
23 * A-1372-675-A HA MOUNT (D9H5)
24 * X-4037-179-1 FOOT ASSY (D9H5)
(
To Next Page
