Sony TRINITRON BVM-D9H5U User Manual

2-8
BVM-D9H1U/D9H5U/D9H1E/D9H5E/D9H1A/D9H5A
A
A
1 D board
(Refer to 2-2-7.)
8 Remove M shield
in the direction shown by the arrow.
7 Screw
(+BVTT 3 × 6)
5 Five Screws
(+BVTT 3 × 6)
3 Three Screws
(+BVTT 3 × 6)
4 Rear panel assy
6 M block assy
MB board
MA board
CN1105
CN1106
CN1100
CN103
CN101
2 Screw
(+BVTT 3 × 6)

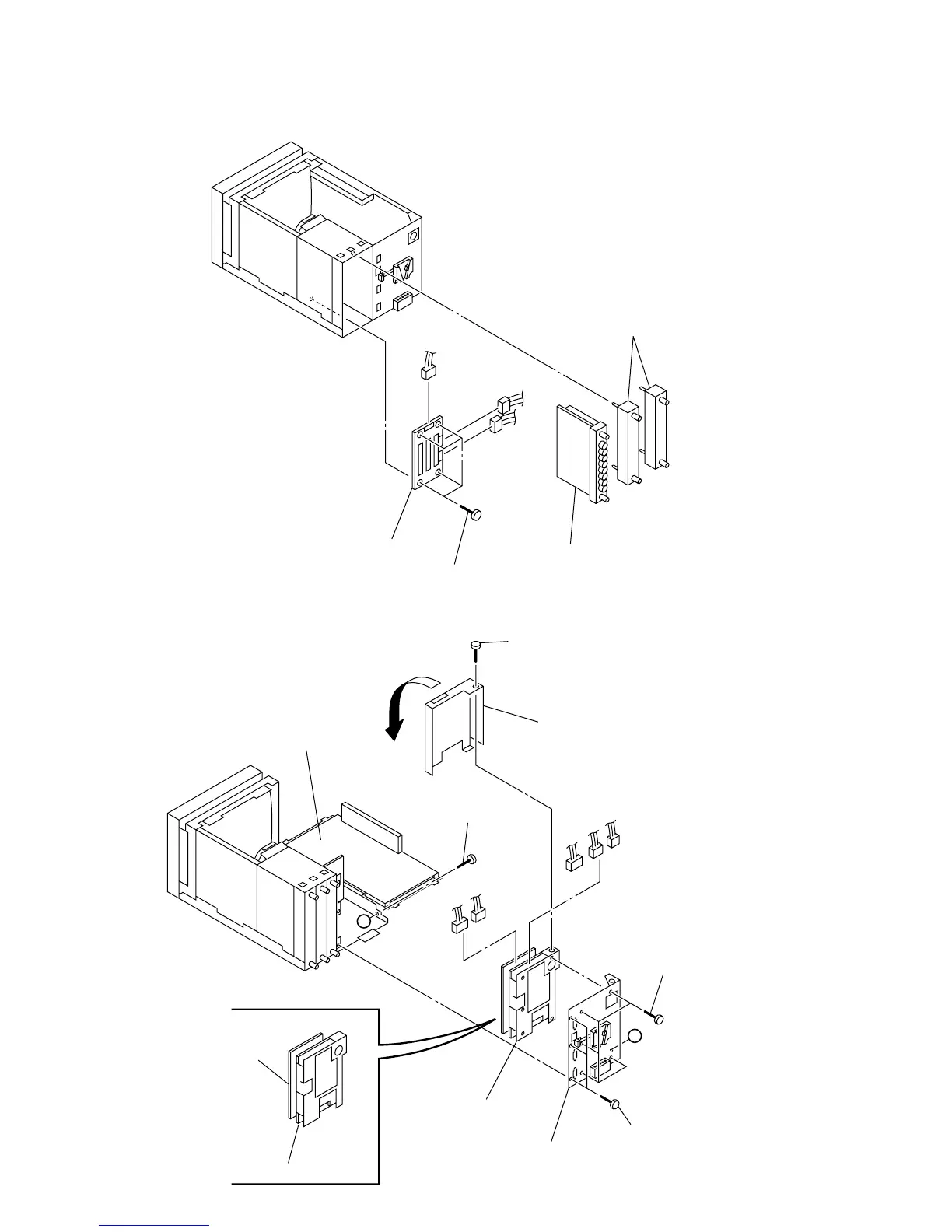

2-2-11. M Block Assy (MA and MB Boards) Removal
2-2-10. T Board Removal
1 Two blank panel assy
2 BX board (BKM-129X)
3 Four screws
(+BVTT 3 × 6)
4 T board
CN801
CN806
CN805
