2-5
BVM-D9H1U/D9H5U/D9H1E/D9H5E/D9H1A/D9H5A

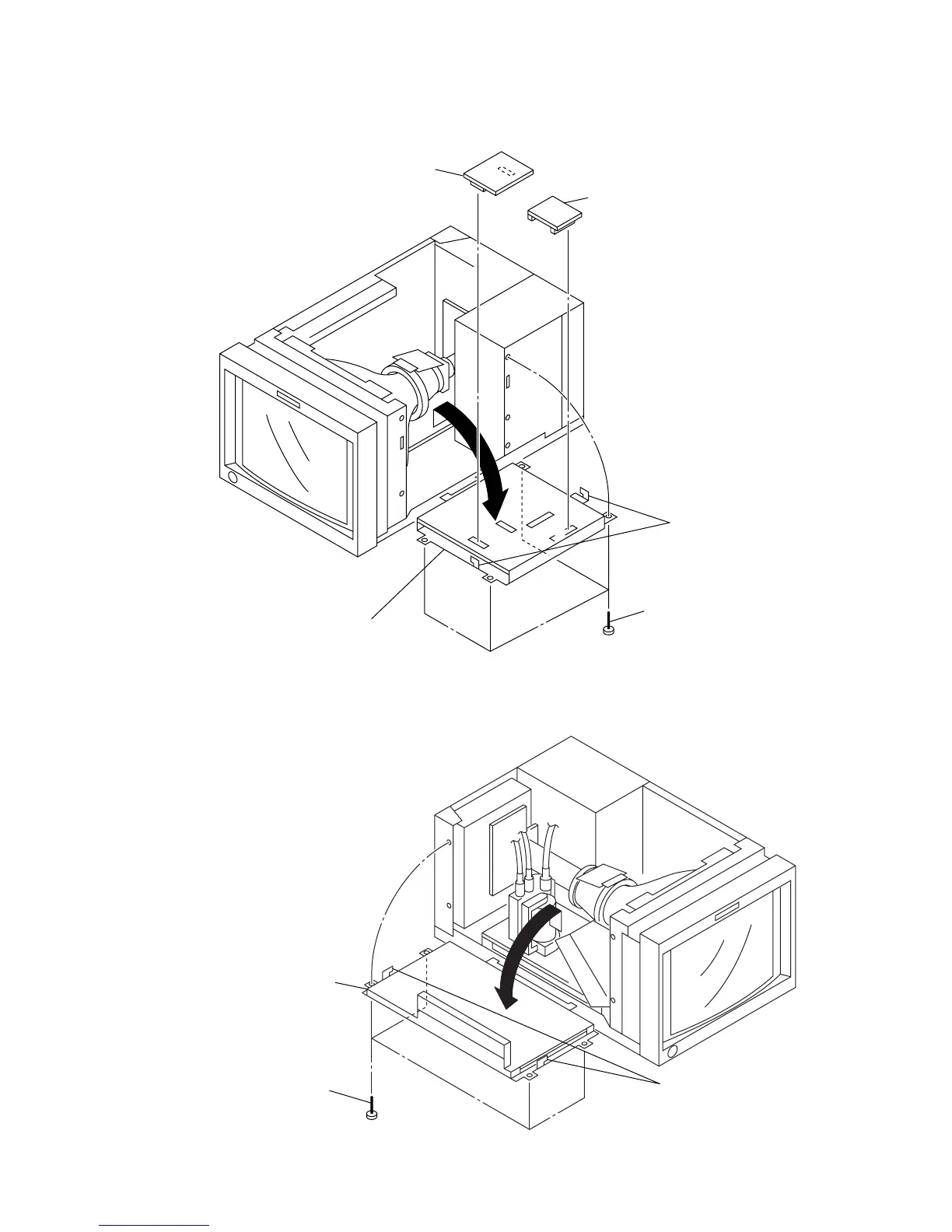

2-2-6. B, B1 and B2 Boards Removal
3 B1 board
4 B2 board
Two claws
1 Four screws
(+BVTT 3 × 6)
2 Open B board in the
direction shown by the arrow.
2-2-7. How to Open D Board
2 Open D board in the
direction shown by the arrow.
1 Four screws
(+BVTT 3 × 6)
Two claws
