8-2
BVM-D9H1U/D9H5U/D9H1E/D9H5E/D9H1A/D9H5A

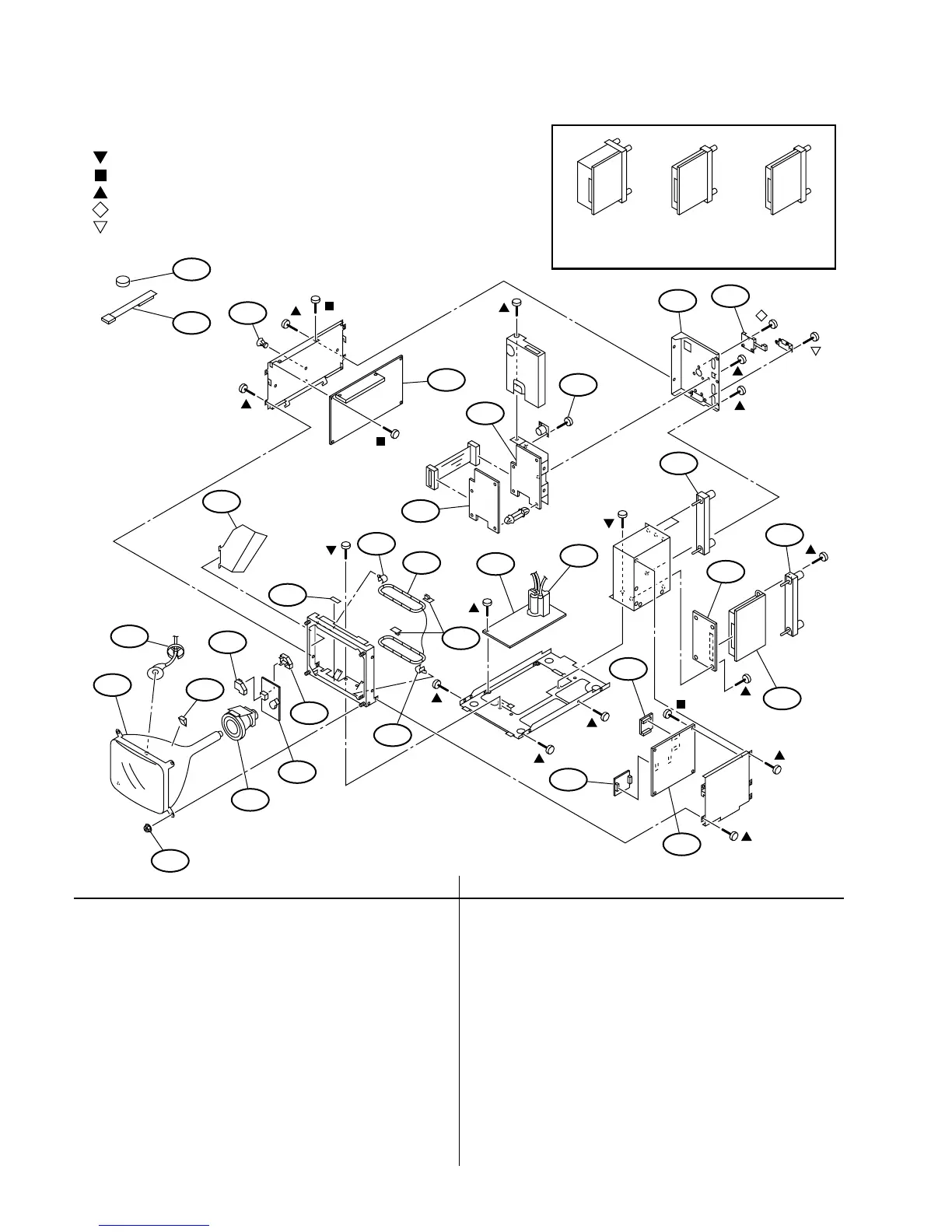

8-2. PICTURE TUBE
Ref.No. Part No. Description RemarkRef.No. Part No. Description Remark
OPTION
BKM-142HD BKM-127W BKM-120D
: 7-682-946-09 +PSW 3x5
: 7-682-948-09 +PSW 3x8
: 7-685-871-09 +BVTT 3x6
: 7-682-547-09 +B 3x6
: 7-627-556-58 +P 2.6x5
51
52
53
54
55
56
57
58
59
60
61
62
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
51 ! 8-737-658-05 PICTURE TUBE 09FX (DTV SPEC)
52 4-304-511-00 NUT (M5), FLANGE
53 4-309-369-00 SPACER, DEFLECTION YOKE
54 * 4-034-856-01 HOLDER, HV CABLE
55 ! 1-451-507-11 DEFLECTION YOKE
56 * A-1331-957-A C MOUNT
57 * 4-376-133-11 COVER (MAIN), CV VOL
58 * 4-376-132-11 COVER (REAR LID), CV VOL
59 * 4-073-712-01 INSULATOR (ANODE)
60 3-840-486-02 CUSHION, SPEAKER
61 ! 1-419-306-11 COIL, DEGAUSSING
62 * 4-072-725-01 HOLDER, DEGAUSE COIL
63 4-380-534-01 CAP, DGC
64 4-052-842-01 HOLDER, PWB
65 * A-1335-118-A D COMPL
66 * A-1195-156-A P COMPL 67
67 ! 1-439-526-21 TRANSFORMER ASSY, FLYBACK
68 * X-4037-178-1 PANEL ASSY, REAR (D9H1)
* X-4037-178-2 PANEL ASSY, REAR (D9H5)
69 A-8278-025-C MOUNT V ASSY
70 4-035-802-01 SCREW (M2.6X6)
71 * A-1306-575-A MB COMPL (D9H1)
* A-1306-576-A MB COMPL (D9H5)
72 * A-1306-574-A MA COMPL (D9H1)
* A-1306-581-A MA COMPL (D9H5)
73 * X-4037-166-1 PANEL ASSY, BLANK
74 * X-4037-154-1 PANEL ASSY, CONNECTOR
75 * A-1136-013-A BX COMPL
76 * A-1390-942-A T MOUNT
77 * A-1136-024-A B COMPL 78, 79
78 * A-1131-464-A B2 MOUNT
79 * A-1131-463-A B1 MOUNT
80 * 1-452-884-11 MAGNET
81 4-051-735-22 PIECE A(75), CONV. CORRECT
(
(
(
