Sony TRINITRON BVM-D9H5U User Manual

11-3
BVM-D9H1U/D9H5U/D9H1E/D9H5E/D9H1A/D9H5A
11-3
2
3
4
5
1
A BCDEFGH
BXBX
11-2. Schematic Diagrams and Printed Wiring Boards
A
1
2
3
4
5
BC CBA
1
2
3
4
5

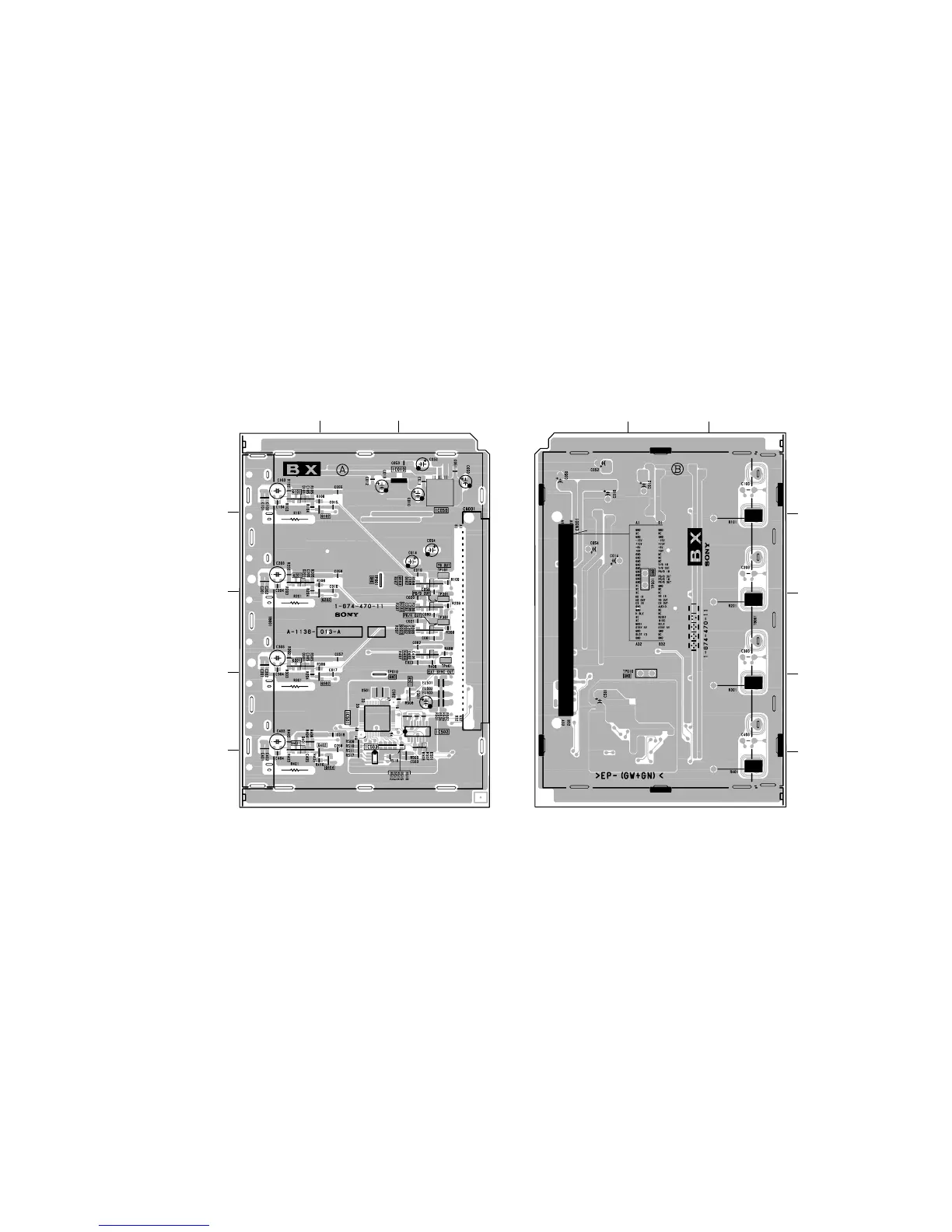

BX BOARD
BX –A SIDE–
SUFFIX: -11
BX –B SIDE–
SUFFIX: -11
[BX BOARD]
* : B SIDE
D101 A-1
D102 C-2
D201 A-2
D202 C-3
D301 A-3
D302 C-3
D401 A-4
D402 C-3
D501 C-5
IC010 B-1
IC050 C-1
IC501 B-4
IC502 C-4
IC503 B-5
Q101 A-1
Q102 B-2
Q103 C-2
Q201 A-2
Q202 B-3
Q203 C-3
Q301 A-3
Q302 B-4
Q303 C-3
Q401 A-4
Q402 B-4
Q403 C-3
Q404 B-5
Q501 C-4
TP001 B-2
TP010 B-4
TP101 C-2
TP201 C-3
TP301 C-3
TP401 C-3
