2-3
BVM-D9H1U/D9H5U/D9H1E/D9H5E/D9H1A/D9H5A

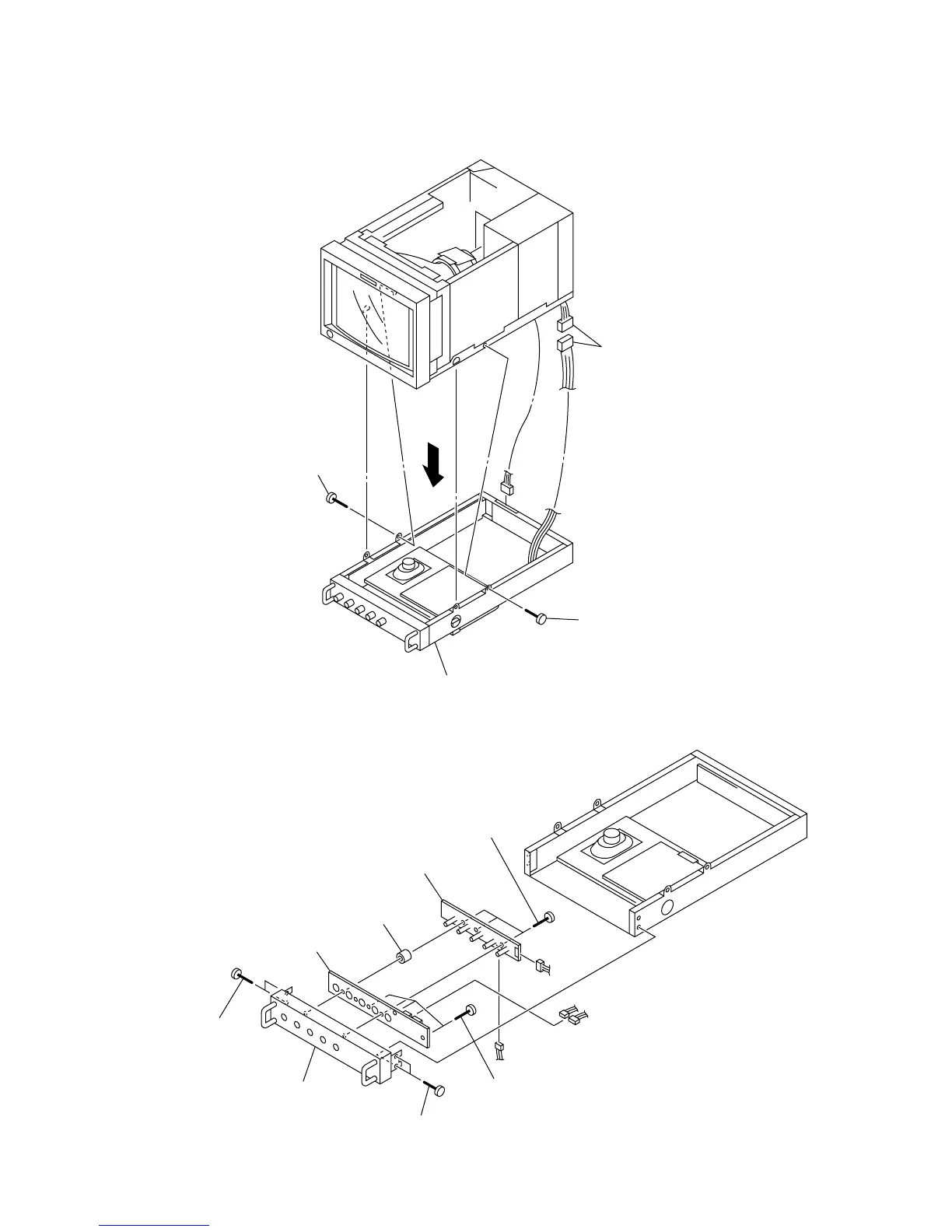

2-2-2. Control Panel Complete Assy Removal (D9H5)
2-2-3. HA and HB Boards Removal (D9H5)
Connector (9P)
1 Screw
(+BVTT 3 × 6)
2 Screw
(+BVTT 3 × 6)
CN3203
3 Control panel complete assy
4 Three screws
(+BVTP 3 × 8)
2 Two screws
(+BVTT 3 × 6)
1 Two screws
(+BVTT 3 × 6)
6 Three screws
(+BVTP 3 × 8)
3 Control panel assy
5 HB board
7 HA board
Spacer
CN1200
CN1201
CN202
CN201
