3-9

BVM-D9H1U/D9H5U/D9H1E/D9H5E/D9H1A/D9H5A

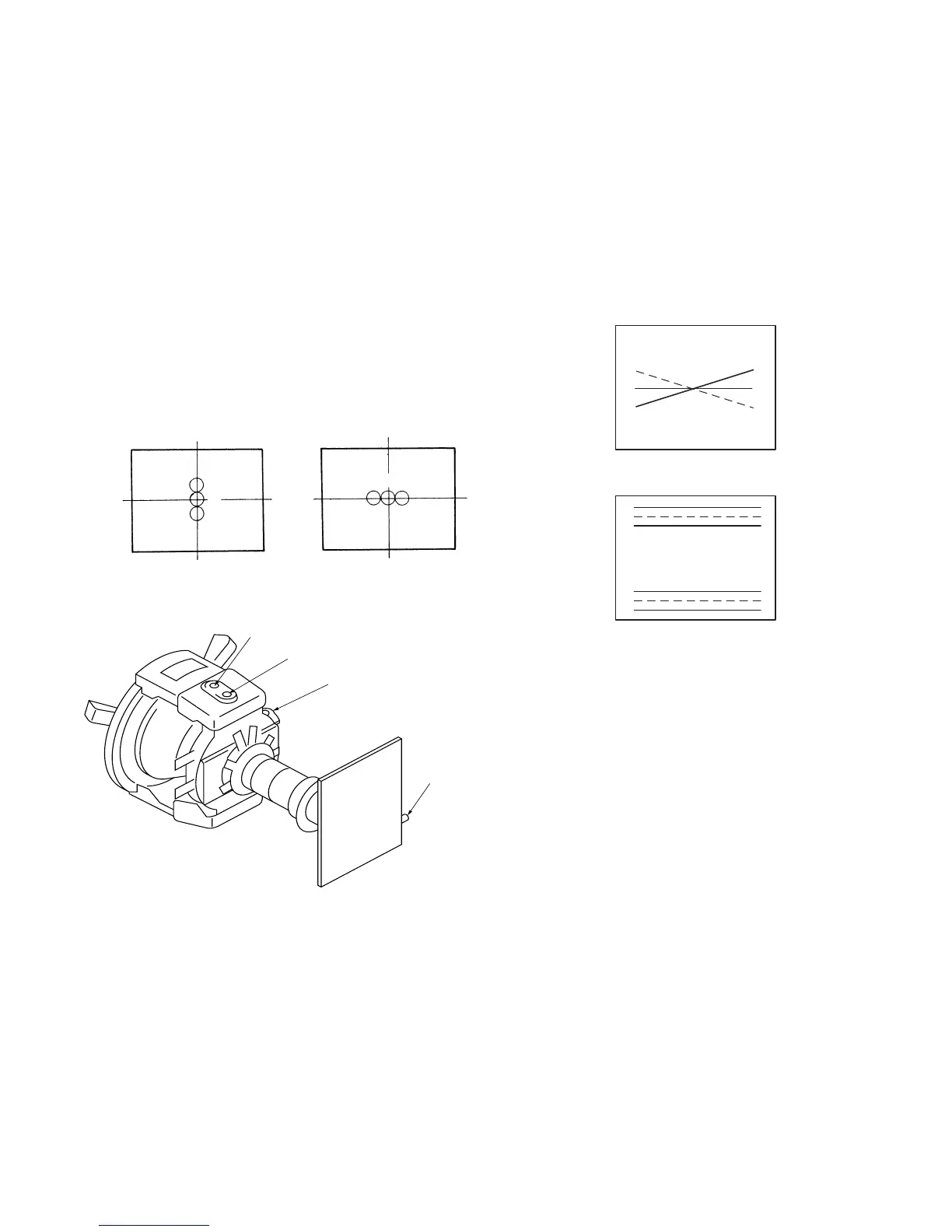

Fig. 1-13

Fig. 1-12

TLV

YCH

XCV

(RV701)

XCV

TLV

[Dynamic Convergence Adjustment]

1. Minimize the vertical misconvergence in the left-most

end of the center of a screen and in the right-most end

of the center of a screen by the DY correction reactor

XCV as shown in Fig. 1-14.

2. Minimize the vertical misconvergence in the top of a

screen and in the bottom of a screen by the DY

correction reactor TLV as shown in Fig. 1-14.

Fig. 1-14

[Static Convergence Adjustment]

. Horizontal Static Convergence Adjustment

1. Adjust RV701 on the C board so that the red dots and

the green dots are correctly converged.

2. When the blue dot is mis-converged with respect to the

red and green dots, implement the HMC (horizontal

misconvergence) correction by adjusting the 4-pole

magnet and the 6-pole magnet of the DY.

. Vertical Static Convergence Adjustment

1. Implement the VMC (vertical misconvergence)

correction by adjusting the 4-pole magnet and the 6-

pole magnet of the DY.
