Series 4180 Powerhead10

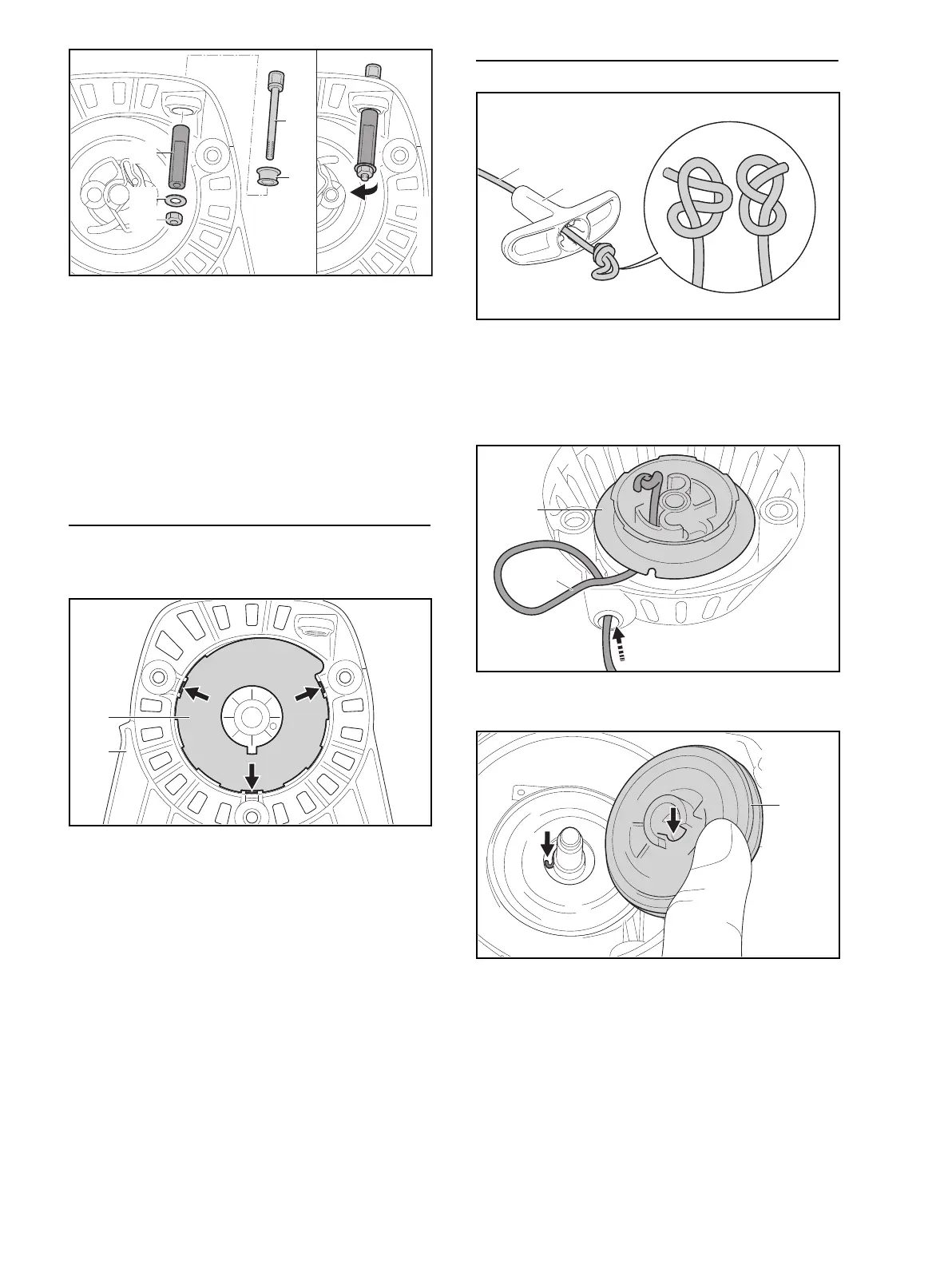

N Fit the new rope guide bushing (2) in the hole in the
fan housing (3).
N Insert the screw spindle (11) of the installing tool
5910 890 2204 through the rope guide bushing (2).
N Fit the thrust sleeve (13), washer and hex nut (14).
N Tighten down the hex nut (14) and hold the screw
spindle (11) steady until the rope bushing is firmly
seated.
The lower end of the rope bushing (4) is flared in this
process.
5.5 Installing the Rewind Spring
Warning! Spring is under tension. Risk of serious eye and
face injuries. Wear a face shield and work gloves.
N Push the rewind spring (4) into the recesses in the fan
housing.
5.6 Assembling the Rewind Starter
N Secure the end of the starter rope (3) on the starter
grip (1) with one of the special knots shown.
N Thread the starter rope through the starter grip (1).
N Thread the other end of the rope (6) through the fan
housing (9).
N Thread the rope (3) through the rotor (5) (arrows) and
secure it with a simple overhand knot.
N Fit the rope rotor (5) on the starter post so that the
driver (arrow) on the rotor engages the inner loop of
the rewind spring (arrow).
