Series 4180 Powerhead 11

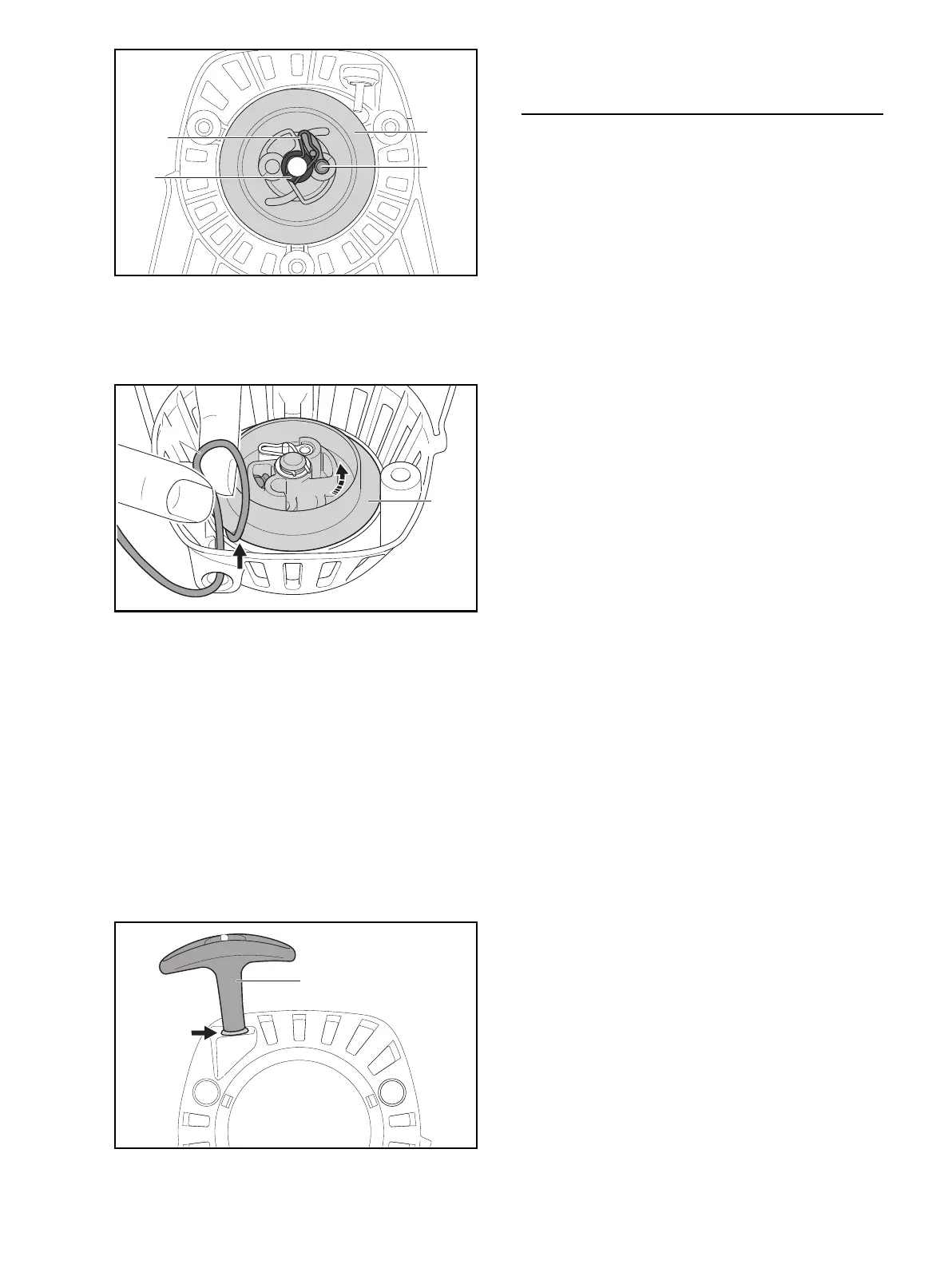

N Fit pawl (6) in the rope rotor (5).
N Fit the washer (7).
N Fit the spring clip (8) so that it engages the guide peg
on the pawl (6).
N Pull out a short length of starter rope (3) between the
rope rotor (5) and fan housing (arrow).
N Engage the rope (3) in the notch (arrow) in the rotor
and make a loop in the rope.
N Use the rope (3) to turn the rope rotor (5) seven times
counterclockwise (arrow) and then hold the rotor (5)
steady.
The rewind spring is now pre-tensioned.
Rotating the starter rope and rope rotor causes the rope
to become twisted.
N Pull out the twisted rope (3) with the starter grip (1)
and straighten it out.
N Let go of the rope rotor (5) and slowly release the
starter rope (1) so that it can rewind properly.
N Check that the starter grip (1) sits upright in the fan
housing.
If the starter grip droops to one side, tension the rewind
spring at least one additional turn.
5.7 Installing the Rewind Starter
N Fit the rewind starter (9) in position.
N Insert and tighten down the screws (10).
8
7
6
5
0000-GXX-1913-A0
5
3
0000-GXX-1973-A0
1
0000-GXX-1917-A0
