Series 4180 Powerhead 35

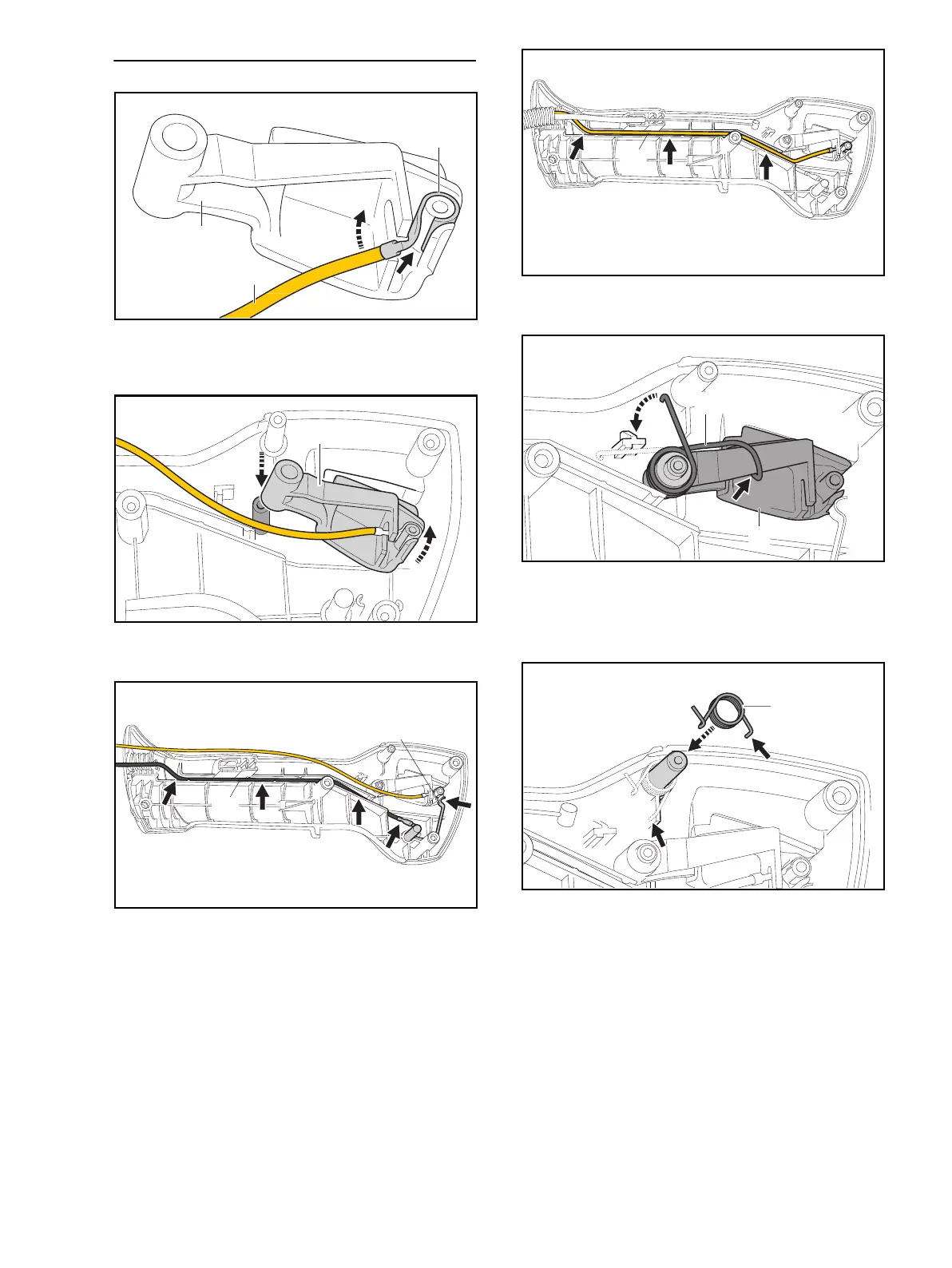

13.5 Assembling the Control Handle
N Push the ground wire (21) terminal (21) onto the pivot
of lever (2) and then rotate the ground wire (21) into
the slot as far as stop.
N Fit lever (2) on the pivot pin and rotate it into the
recess.
N Fit blade receptacle (1) of short circuit wire (22) on
contact spring (6).
N Push the contact spring (6) in its guides.
N Starting at the contact spring, fit the short circuit wire
in the guides (arrows).
N Starting at lever (2), press the ground wire (21) into its
guides (arrows).
N Push the torsion spring (3) onto the pivot pin of lever
(2) so that its hooked end engages the lever (arrow).
N Pre-tension the straight leg of torsion spring (3) and
attach it to the stop (arrow).
N Fit the torsion spring (4).
20
21
2
0000-GXX-2409-A0
2
0000-GXX-2410-A0
22
6
0000-GXX-2411-A0
21
0000-GXX-2412-A0
3
2
0000-GXX-2416-A0
4
0000-GXX-2414-A0
