Sub-Zero 632/F User Manual

Installation Information
600 Series
(Prior to #1810000)
2-6
#3756270 - Revision B - January, 2006

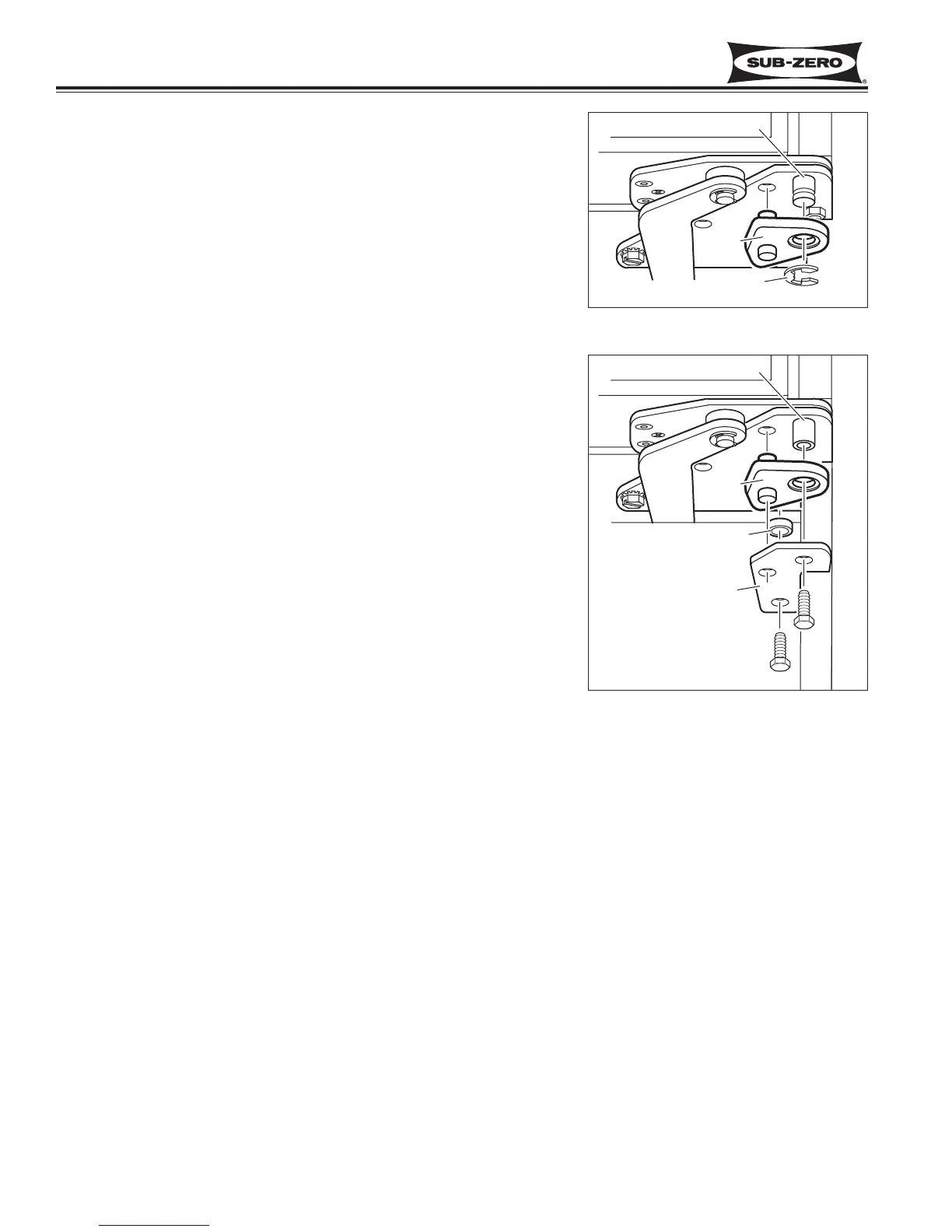

90° Door Stop Cam Installation (Models 601R, 601F)
Optional 90° door stop cam (part # DS90) and 105° door stop cam (part
# DS105) are available at no charge from Authorized Parts Distributors
and Product Distributors. To install (See Figure 2-13):
a With door closed, extract bolts, stiffener plate and bushing from
lower cabinet hinge.
b. Place door stop cam up over hinge pin, making sure stub on cam
fits into hole in lower cabinet hinge.
c. Reinstall bushing, stiffener plate and bolts onto lower cabinet hinge.
90° DOOR
STOP CAM
HINGE PIN
STIFFENER
PLATE
BUSHING
Figure 2-13. 90° Stop Cam
90° DOOR
STOP CAM
E-RING
HINGE PIN
Figure 2-12. 90° Stop Cam
90° Door Stop Cam Installation (Models 632, 642, 690)
Optional 90° door stop cam (part # DS90) and 105° door stop cam (part
# DS105) are available at no charge from Authorized Parts Distributors
and Product Distributors. To install (See Figure 2-12):
a With door closed, place door stop cam up over hinge pin, making
sure stub on cam fits into hole in lower cabinet hinge.
b. Secure door stop cam by pushing E-ring into groove at end of hinge
pin.
