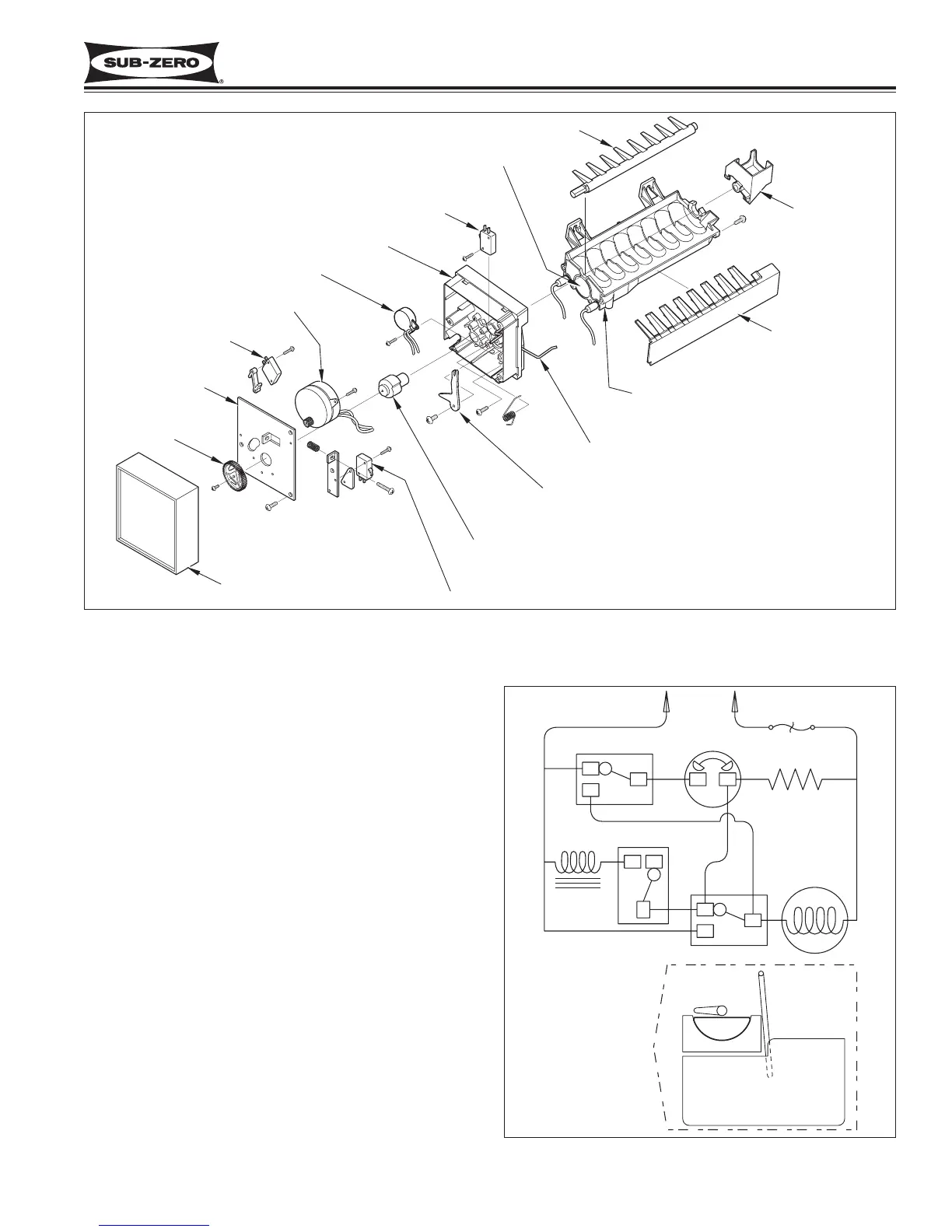

Figure 6-1. Diagram of Icemaker Components
ICEMAKER OPERATION
The following series of electrical schematics illustrate a
typical icemaker cycle of operation. Below each
schematic is a diagram indicating the approximate loca-
tion of the ice ejector and ice level arm during the
phase the schematic indicates.
Freeze Phase of Ice Making Cycle (See Figure 6-2)
• The ice mold is filled with water.
• The thermostat is open.
• No icemaker components are energized.
Figure 6-2. The Freeze Phase
To Next Page
