Component Access / Removal
600 Series
(Prior to #1810000)
7-33
#3756270 - Revision B - January, 2006
Figure 7-63. Model 611, 632, 642, 650, 690 Light & Fan
Switches
Condenser Fan (Models 601R, 601F)
The condenser fan motor is attached to a three legged
condenser fan bracket by screws. The rear leg of the
condenser fan bracket hooks over a spacer toward the
back of the fan shroud. The two front legs of the brack-
et are secured to the fan shroud by screws into well-
nuts. To access and remove the condenser fan assem-
bly, first remove the lower and upper sections of the unit
grille, and remove the compressor baffle. Now, discon-
nect the fan motor electrical leads from the compressor.
Extract the screws from the two front legs of the fan
bracket. Then, unhook the rear leg by pushing the con-
denser fan assembly back slightly, then lift up and pull
forward. The condenser fan motor can now be
removed from the bracket by extracting the screws in
the back side of the fan motor. (See Figure 7-62)
UPPER COMPRESSOR AREA
MECHANICAL AND ELECTRICAL
COMPONENTS
This section covers the Models 611, 632, 642, 650 and
690, explaining how to access and remove mechanical
and electrical components from the upper compressor
area. This will include access and removal of the light
and fan switches, dual water valve (Model 690 only)
and condenser fan motors.
Light and Fan Switches
(Models 611, 632, 642, 650, 690)
The light and fan switches are mounted to the top main-
frame. To access and remove the light and/or fan
switches, the unit grille will need to be removed first.
Now, remove the switch enclosure directly behind the
top mainframe extrusion by extracting the retaining
screw, tilt the back of the switch enclosure forward and
lift up. Now unplug the wires from the switch being
removed. Open the refrigerator or freezer below the
switch being removed. Depress the tab on the side of
the switch while pushing the switch down, out of the
opening in the mainframe extrusion. (See Figure 7-63)

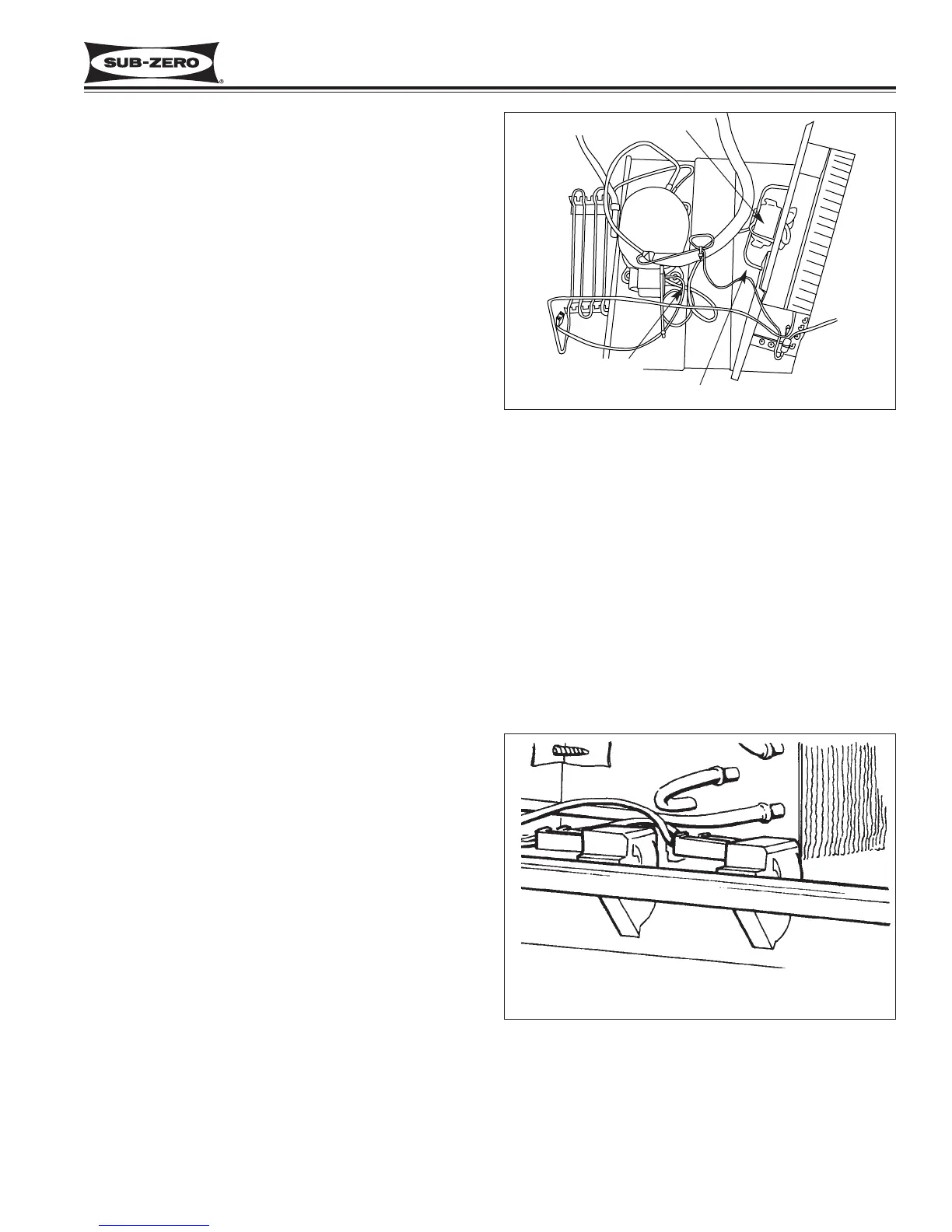

Figure 7-62. Model 601R, 601F Condenser Fan Removal
Condenser Fan Motor
Condenser Fan Bracket
Condenser Fan
Electrical Leads
To Next Page
