Sub-Zero 632/F User Manual

Component Access / Removal
600 Series
(Prior to #1810000)
7-20
#3756270 - Revision B - January, 2006
Freezer Light Bulb Access
(Models 611, 650)
There is no light diffuser in the freezer of these models.
The light bulbs are located directly behind the top
breaker strip. (See Figure 7-40)
Icemaker Assembly Removal (Models 611, 650)
To remove the icemaker, extract the mounting screw at
the bottom of the icemaker which secures the icemaker
bracket to the left side wall. Then extract the two
mounting screws at the top, above the icemaker mold.
Pull the icemaker assembly down, disconnect the elec-
trical leads from the the icemaker, and remove the ice
level arm from the bracket. (See Figure 7-41)
Icemaker Fill Tube Heater (Models 611, 650)
The icemaker fill tube and fill tube heater are located at
the top left rear corner of the freezer compartment, just
above the switch enclosure. The fill tube heater plugs
into the right side of the switch enclosure. To access
the fill tube heater, first remove the icemaker. Then,
disconnect the fill tube heater from the switch enclosure
and pull the fill tube and heater out as one. (See
Figure 7-42)

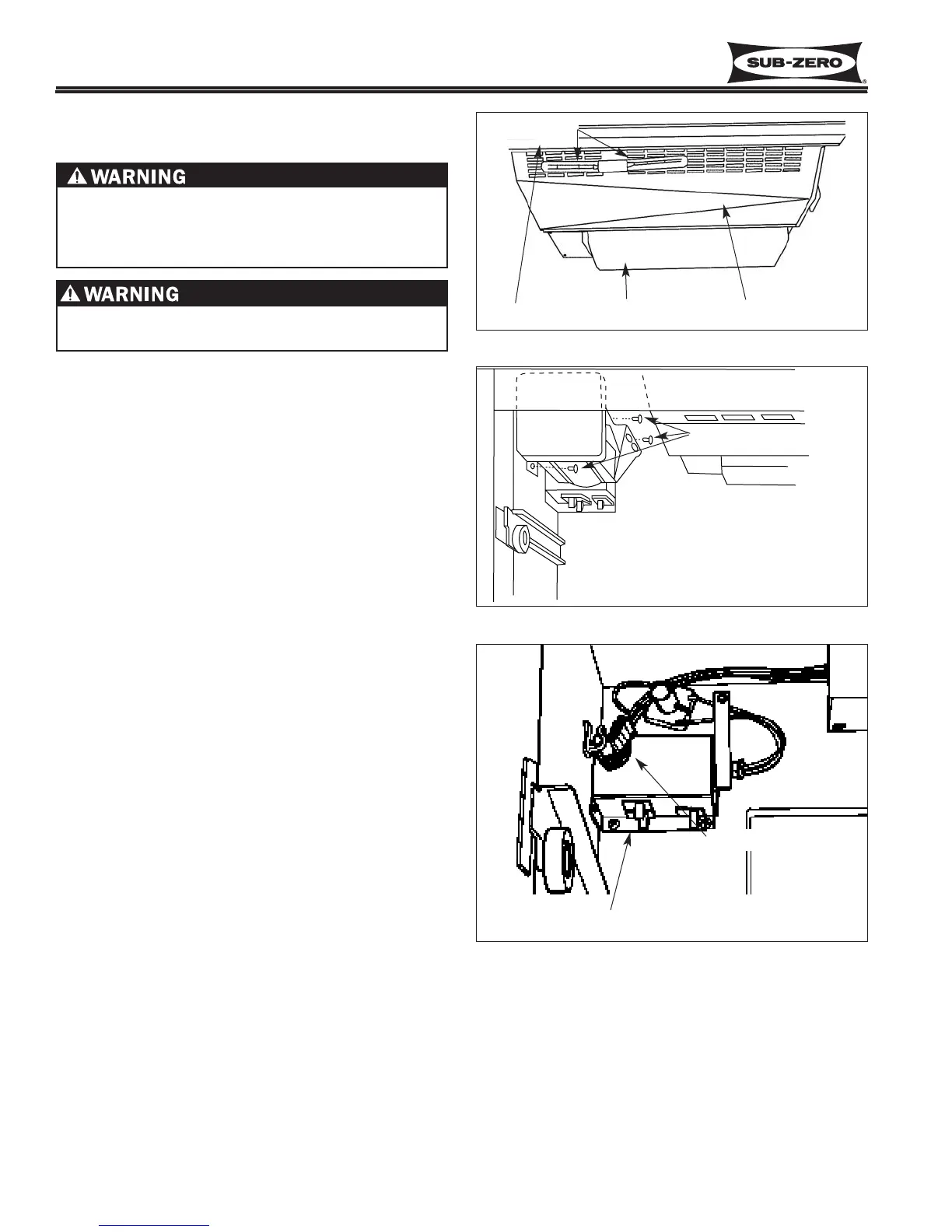

Figure 7-40. Model 611, 650 Freezer Lighting
Figure 7-41. Models 611, 650 Icemaker
Figure 7-42. Model 611, 650 Icemaker Fill
Tube/Heater & Switch Enclosure
Fill Tube Heater
Mounting Screws
Evaporator Cover
Breaker Strip
Light Bulbs
Air Duct
Switch Enclosure
Light bulbs are hot and could cause minor person-
al injury.
ELECTRIC SHOCK HAZARD. IF BULB SHOULD
SEPARATE FROM BASE, DISCONNECT POWER
TO UNIT BEFORE ATTEMPTING TO REMOVE BASE
FROM SOCKET.
