Sub-Zero 632/F User Manual

Component Access / Removal
600 Series
(Prior to #1810000)
7-34
#3756270 - Revision B - January, 2006
Dual Water Valve Removal (Model 690)
NOTE: To avoid water damage, shut off water supply to
unit before attempting to remove water valve.
NOTE: Though the water valve on the model 690 is at
the top of the unit, the water line inlet connection for
hooking up the house water supply is located in the
drain pan area. A copper tube leads from this connec-
tion beneath the unit, up the rear wall to the dual water
valve.
To access and remove the dual water valve, the unit
grille and compressor baffle must first be removed.
Now, disconnect the wire leads from both solenoids.
Slide the spray cover off of the inlet compression fitting
and disconnect the inlet water line from the dual water
valve. Then, disconnect the outlet water lines.
Remove the screw which holds the valve to the bracket
and lift the valve up and out. (See Figure 7-64)
Condenser Fan Access and Removal
(Models 611, 632, 642, 650, 690)
The condenser fan motor is attached to a three legged
condenser fan bracket by screws. The rear leg of the
condenser fan bracket hooks over a spacer towards the
back of the fan shroud. The two front legs of the brack-
et are secured to the fan shroud by screws into well-
nuts. To access and remove the condenser fan motor,
the unit grille and compressor baffle must first be
removed. Now, disconnect the fan motor electrical
leads from the wire harness. Then, extract the screws
from the two front legs of the fan bracket. Unhook the
rear leg by pushing the condenser fan assembly back
slightly, then lift up and pull forward. The condenser fan
motor can now be removed from the bracket by extract-
ing the screws in the back side of the fan motor. (See
Figure 7-65)
NOTE: Compressor and tubing may be hot and could
cause minor personal injury.
Figure 7-65. Model 611, 632, 642, 650, 690 Condenser Fan
Mounting Screws
Condenser Motor
Condenser Fan Bracket

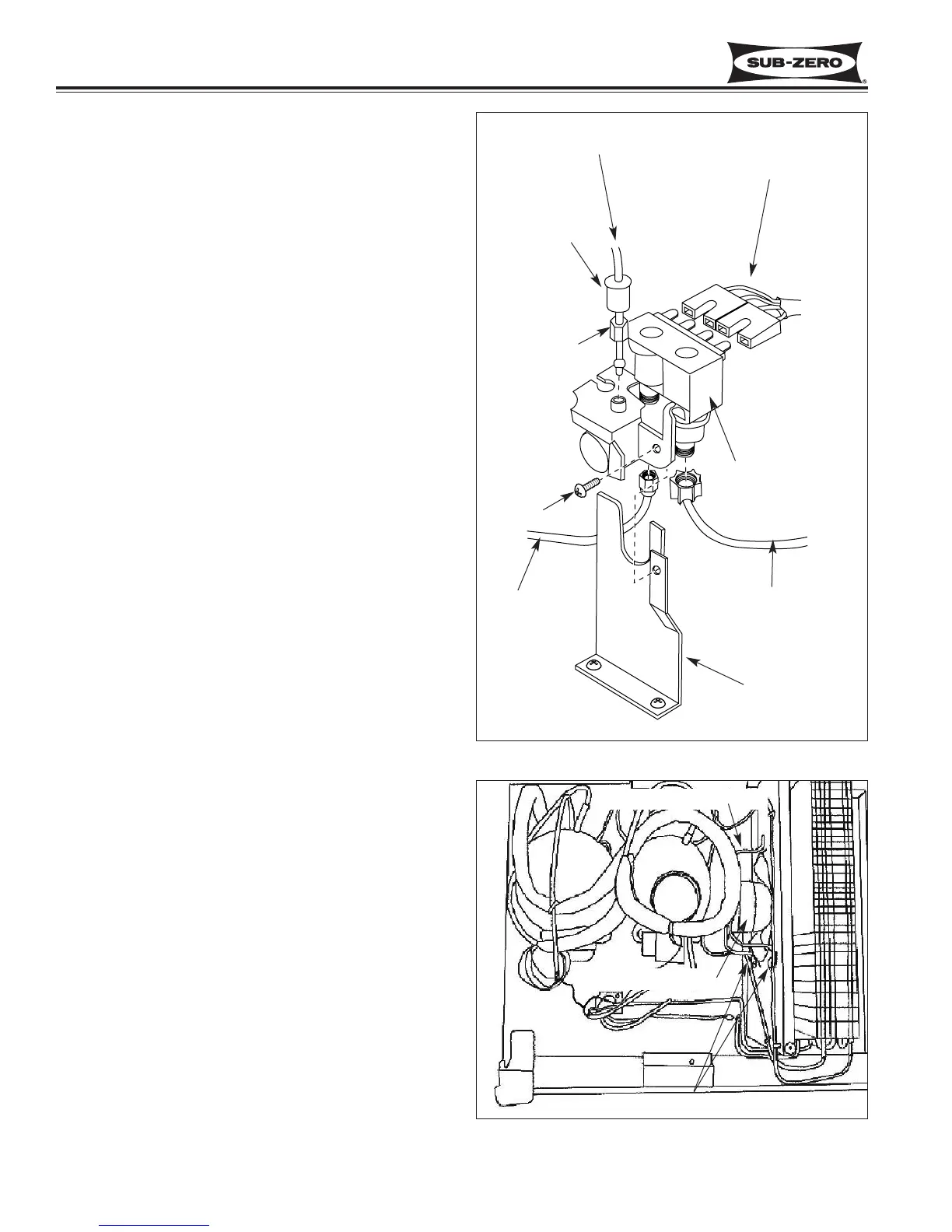

Figure 7-64. Model 690 Dual Water Valve
Water Line In
Compression
Fitting
Screw
Bracket
Spray Cover
Electrical Connections
Dual Water Valve
To Water Tank
To Icemaker
