Component Access / Removal
600 Series
(Prior to #1810000)
7-21
#3756270 - Revision B - January, 2006
Freezer Light, Fan and Icemaker Switches
(Models 611, 650)
The freezer light, fan and icemaker switches are locat-
ed inside the switch enclosure at the top left rear corner
of the freezer compartment. (See Figure 7-41.) To
access and remove a freezer light, fan and/or icemaker
switch, the icemaker should first be removed. Now
extract the screws securing the switch enclosure to the
top left rear corner of the freezer compartment. Then,
lower the enclosure and disconnect the wire leads from
the switch being removed. Depress the tabs on the
side of the switch and push the switch out of the enclo-
sure. (See Figures 7-42 and 7-43)
Freezer Compartment Thermistor (Models 611, 650)
The freezer compartment thermistor is located inside
the switch enclosure at the top left rear corner of the
freezer compartment. (See Figure 7-41) To access
and remove the freezer compartment thermistor, the
icemaker should first be removed. Now extract the
screws securing the switch enclosure to the top left rear
corner of the freezer compartment. Then, lower the
enclosure and disconnect the thermistor wire leads
from the wire harness, and extract the screw which
secures the thermistor to the inside of the enclosure.
(See Figures 7-42 & 7-43)
Freezer Air Duct Removal (Models 611, 650)
The freezer air duct is located at the top rear of the
freezer compartment, directly behind the evaporator
cover. To remove the air duct, extract the two mounting
screws at the front flange; pull the front down and for-
ward.
NOTE: When reinstalling freezer air duct, the rear
flange of air duct must sit on top of two lower white
pegs in the rear wall.

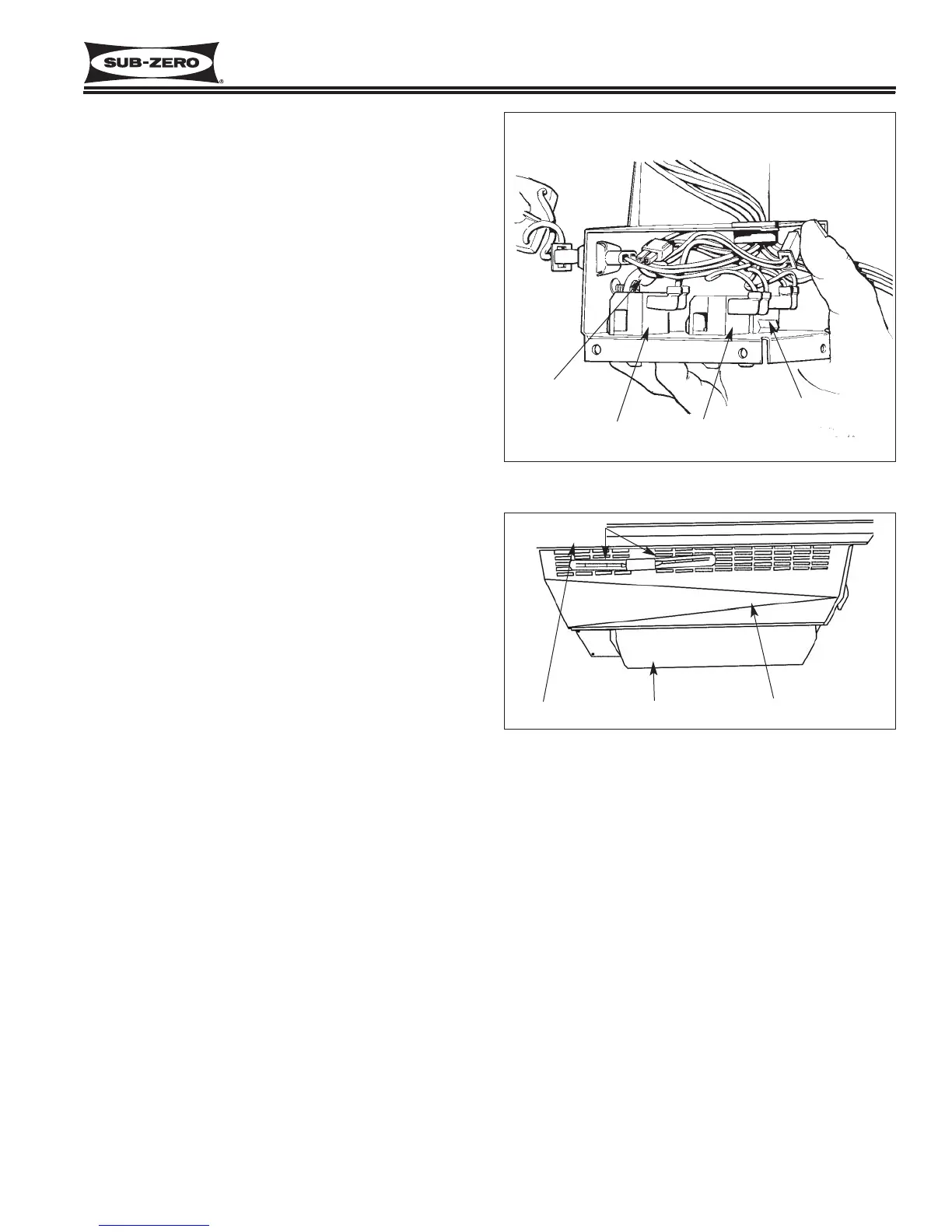

Figure 7-43. Model 611, 650 Switch Enclosure
Figure 7-44. Model 611, 650 Freezer Compartment, Top
Models 611, 650
Compartment
Thermistor
Icemaker
Switch
Light Switch
Fan Switch
Evaporator Cover
Breaker Strip
Light Bulbs
Air Duct
