Component Access / Removal
600 Series
(Prior to #1810000)
7-16
#3756270 - Revision B - January, 2006
Freezer Evaporator Cover (Model 601F)
The bottom of the freezer evaporator cover is secured
by slots in the side flanges fitting over pegs at the bot-
tom of each shelf ladder. At the top, screws hold the
evaporator cover to the evaporator fan shroud. To
access and remove the evaporator cover, the light dif-
fuser and freezer glass shelf must first be removed.
Then extract the screws at the top of the evaporator
cover, tilt it forward and lift out. (See Figure 7-33)
Freezer Evaporator Fan Shroud Assembly (Model
601F)
To access and remove the evaporator fan shroud
assembly, the light diffuser and evaporator cover will
need to be removed first. Now extract the mounting
screws which secure the fan shroud assembly to the
ceiling of the refrigerator compartment. Then lower the
assembly and disconnect the wiring for the lights from
the wire harness. (See Figure 7-34)
Freezer Evaporator Fan Assembly Access and
Removal (Model 601F)
To access the evaporator fan assembly, the light dif-
fuser, evaporator cover, and evaporator fan shroud
assembly will need to be removed. Now, disconnect
the fan motor wire leads from the wire harness, and
extract the mounting screws which secure the fan
assembly to the ceiling. (See Figure 7-35)

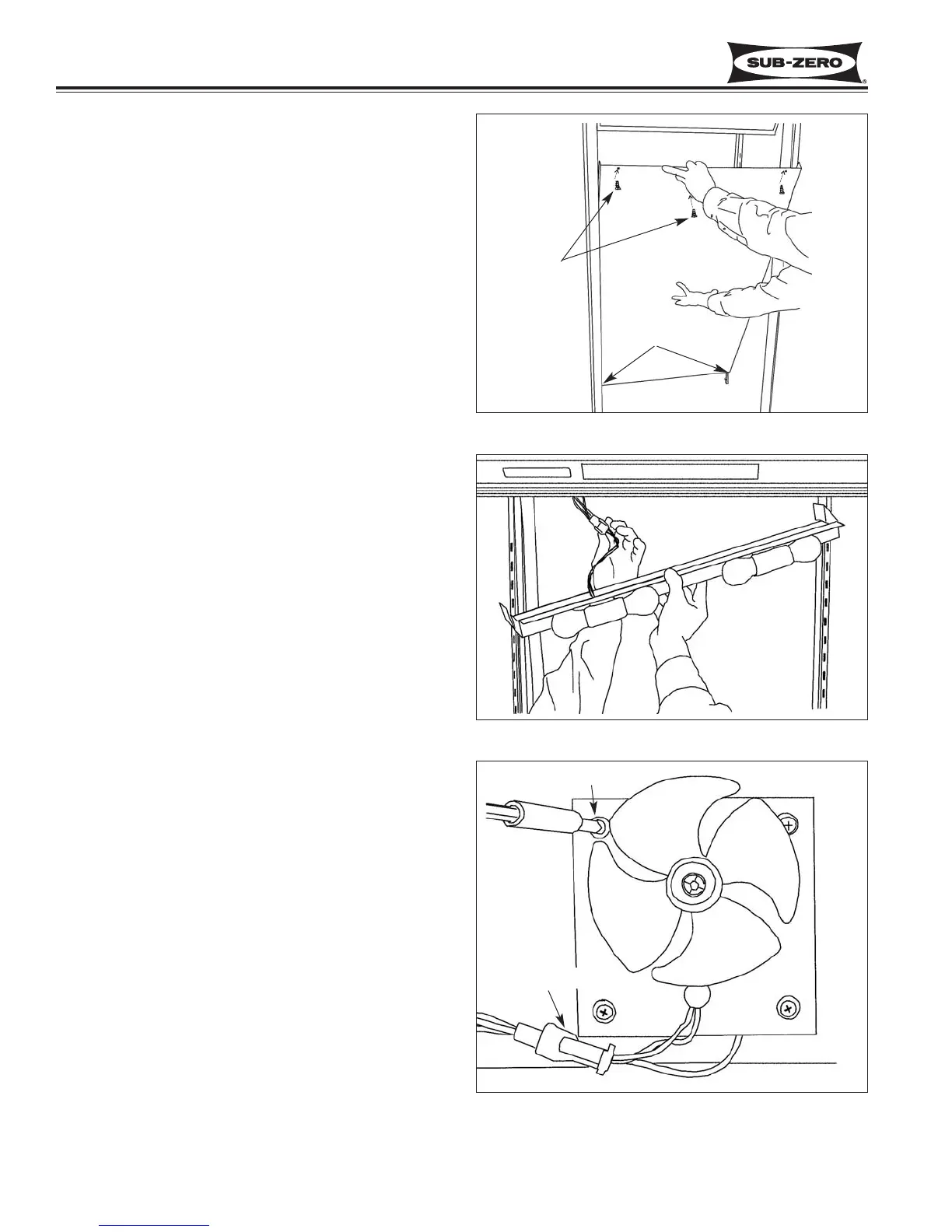

Figure 7-33. Evaporator Cover Removal
Figure 7-34. Model 601F Fan Shroud Removal
Figure 7-35. Model 601F Evaporator Fan Removal
Screws
Slots & Pegs
(not shown)
Mounting Screws (4)
Wire Connection
To Next Page
